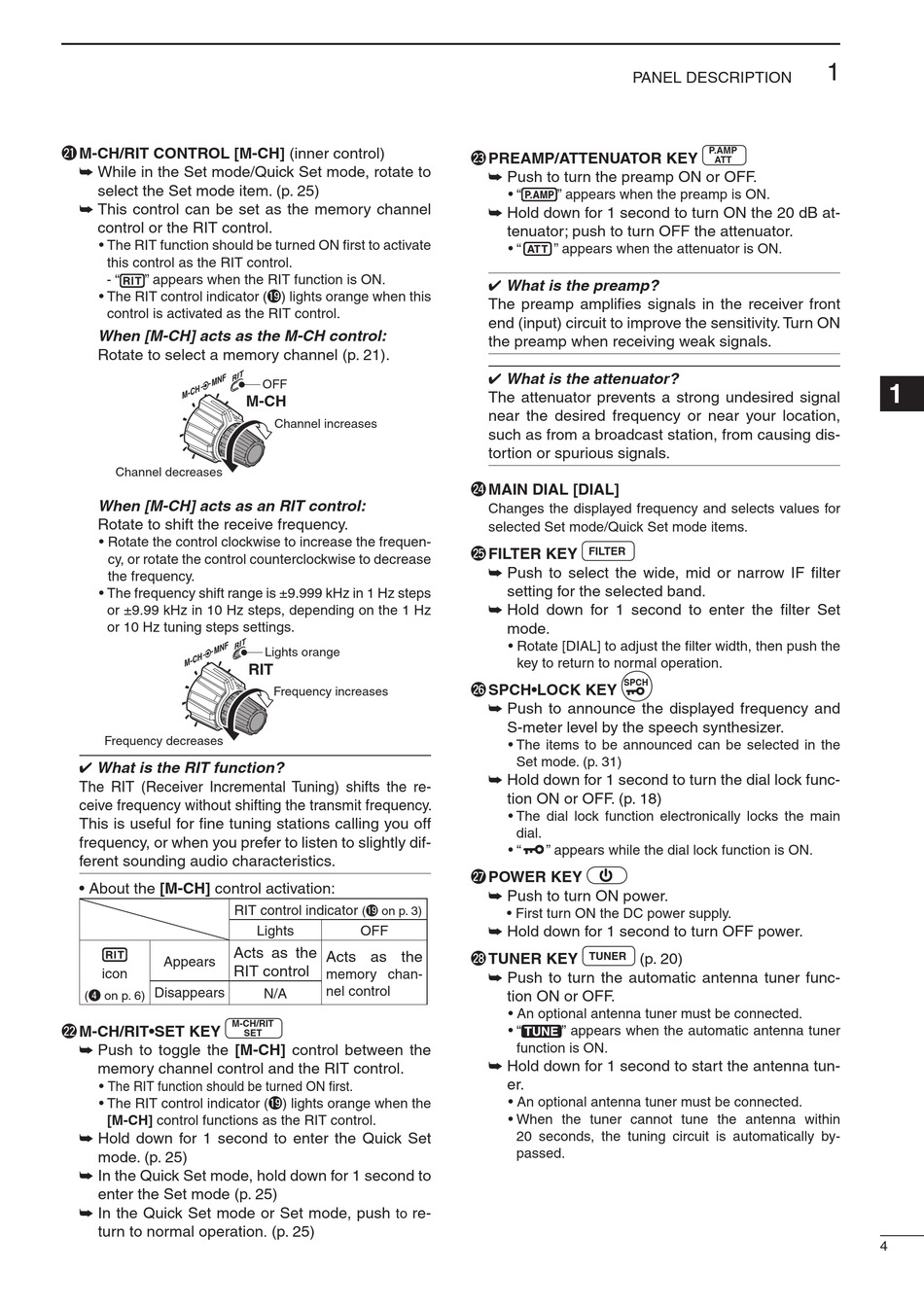

Icom IC-7200 Instruction Manual page 9

@1 M-CH/RIT CONTROL [M-CH] (inner control)
➥ While in the Set mode/Quick Set mode, rotate to
select the Set mode item. (p. 25)
➥ This control can be set as the memory channel
control or the RIT control.
• The RIT function should be turned ON first to activate
this control as the RIT control.
- " " appears when the RIT function is ON.
• The RIT control indicator (!9 ) lights orange when this
control is activated as the RIT control.
When [M-CH] acts as the M-CH control:
Rotate to select a memory channel (p. 21).
Channel decreases
When [M-CH] acts as an RIT control:
Rotate to shift the receive frequency.
• Rotate the control clockwise to increase the frequen-
cy, or rotate the control counterclockwise to decrease
the frequency.
• The frequency shift range is ±9.999 kHz in 1 Hz steps
or ±9.99 kHz in 10 Hz steps, depending on the 1 Hz
or 10 Hz tuning steps settings.
Frequency decreases
4 What is the RIT function?
The RIT (Receiver Incremental Tuning) shifts the re-
ceive frequency without shifting the transmit frequency.
This is useful for fine tuning stations calling you off
frequency, or when you prefer to listen to slightly dif-
ferent sounding audio characteristics.
• About the [M-CH] control activation:
RIT control indicator
Acts as the
Appears
RIT control
icon
Disappears
(r on p. 6)
M-CH/RIT
@2 M-CH/RIT•SET KEY
➥ Push to toggle the [M-CH] control between the
memory channel control and the RIT control.
• The RIT function should be turned ON first.
• The RIT control indicator (!9 ) lights orange when the
[M-CH] control functions as the RIT control.
➥ Hold down for 1 second to enter the Quick Set
mode. (p. 25)
➥ In the Quick Set mode, hold down for 1 second to
enter the Set mode (p. 25)
➥ In the Quick Set mode or Set mode, push
turn to normal operation
OFF
M-CH
Channel increases
Lights orange
RIT
Frequency increases
(!9 on p. 3)
Lights OFF
Acts as the
memory chan-
nel control
N/A
SET
re-
to
(p. 25)
.
PANEL DESCRIPTION
@3 PREAMP/ATTENUATOR KEY
➥ Push to turn the preamp ON or OFF.
• "
" appears when the preamp is ON.
➥ Hold down for 1 second to turn ON the 20 dB at-
tenuator; push to turn OFF the attenuator.
• "
" appears when the attenuator is ON.
4 What is the preamp?
The preamp amplifies signals in the receiver front
end (input) circuit to improve the sensitivity. Turn ON
the preamp when receiving weak signals.
4 What is the attenuator?
The attenuator prevents a strong undesired signal
near the desired frequency or near your location,
such as from a broadcast station, from causing dis-
tortion or spurious signals.
@4 MAIN DIAL [DIAL]
Changes the displayed frequency and selects values for
selected Set mode/Quick Set mode items.
@5 FILTER KEY
FILTER
➥ Push to select the wide, mid or narrow IF filter
setting for the selected band.
➥ Hold down for 1 second to enter the filter Set
mode.
• Rotate [DIAL] to adjust the filter width, then push the
key to return to normal operation.
SPCH
@6 SPCH•LOCK KEY
➥ Push to announce the displayed frequency and
S-meter level by the speech synthesizer.
• The items to be announced can be selected in the
Set mode. (p. 31)
➥ Hold down for 1 second to turn the dial lock func-
tion ON or OFF. (p. 18)
• The dial lock function electronically locks the main
dial.
• "
" appears while the dial lock function is ON.
@7 POWER KEY
➥ Push to turn ON power.
• First turn ON the DC power supply.
➥ Hold down for 1 second to turn OFF power.
@8 TUNER KEY
TUNER
(p. 20)
➥ Push to turn the automatic antenna tuner func-
tion ON or OFF.
• An optional antenna tuner must be connected.
• "
" appears when the automatic antenna tuner
function is ON.
➥ Hold down for 1 second to start the antenna tun-
er.
• An optional antenna tuner must be connected.
• When the tuner cannot tune the antenna within
20 seconds, the tuning circuit is automatically by-
passed.
