INSTALLATION AND CONNECTIONS

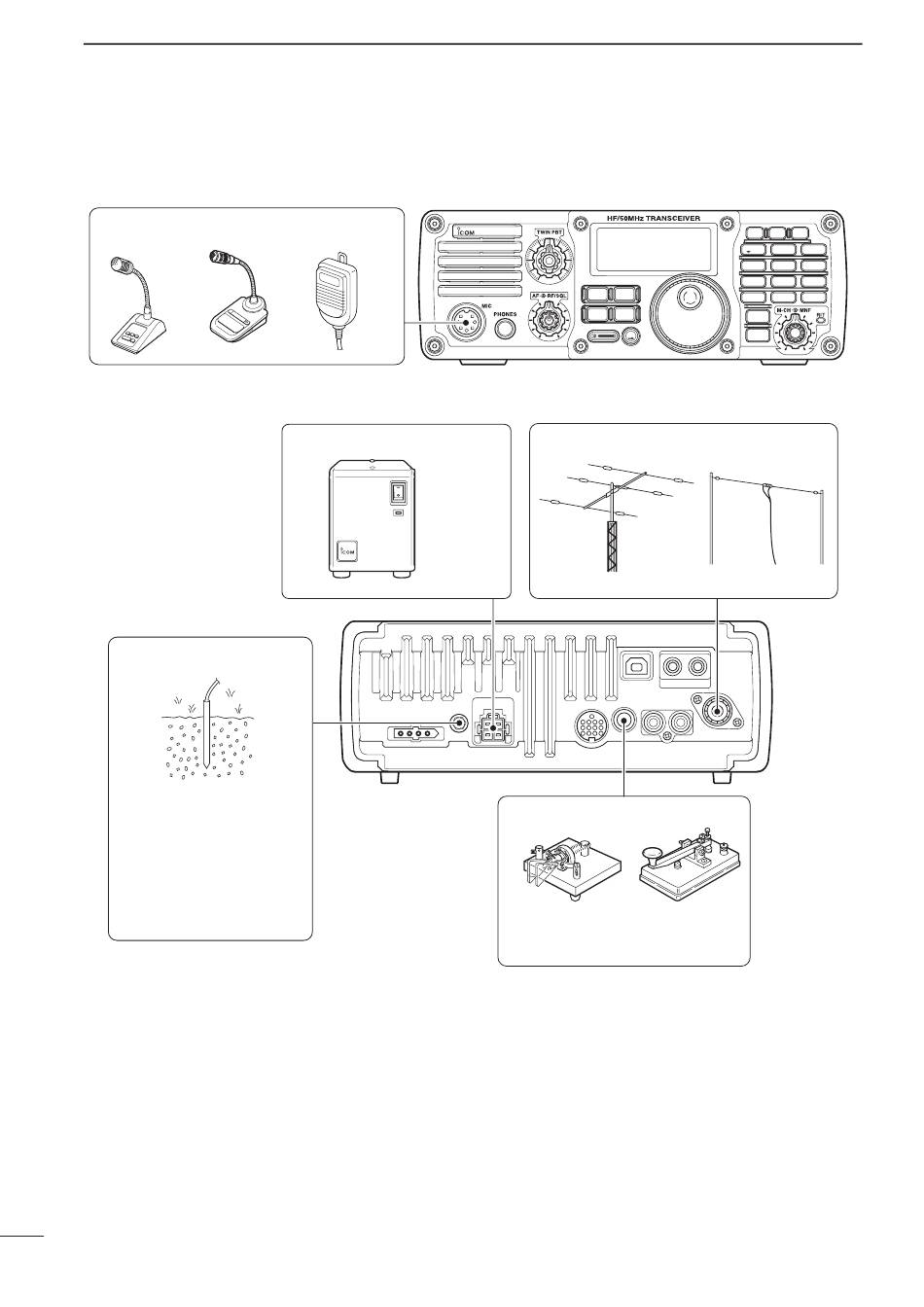

Basic connections

■
• Front panel
Microphones (p. 40)
Optional
SM-50
• Rear panel
GROUND (p. 8)
Use the heaviest gauge wire
or strap available and make
the connection as short and
straight as possible.
Grounding prevents electrical
shocks, TVI and other prob-
lems.
9
Optional
HM-36
SM-30
DC POWER SUPPLY
PS-126
i7200
MODE
TUNER FILTER
(p. 10) HF/50 MHz ANTENNA
CW KEY
A straight or bug key can be used
when the internal electronic keyer is
turned OFF in the Set mode. (p. 33)
ANF
NB NR
METER
1 2
V/M A/B
1.8 = 3.5
4 5
MW M-CL
10 14
7 8
COMP SCAN
21 24
.
TS
0
RIT MNF
GENE 50
P.AMP
ATT
M-CH/RIT
SPCH
SET
3
SPLIT
7
6
AGC
18
9
VOX
28
F-INP ENT
BAND
