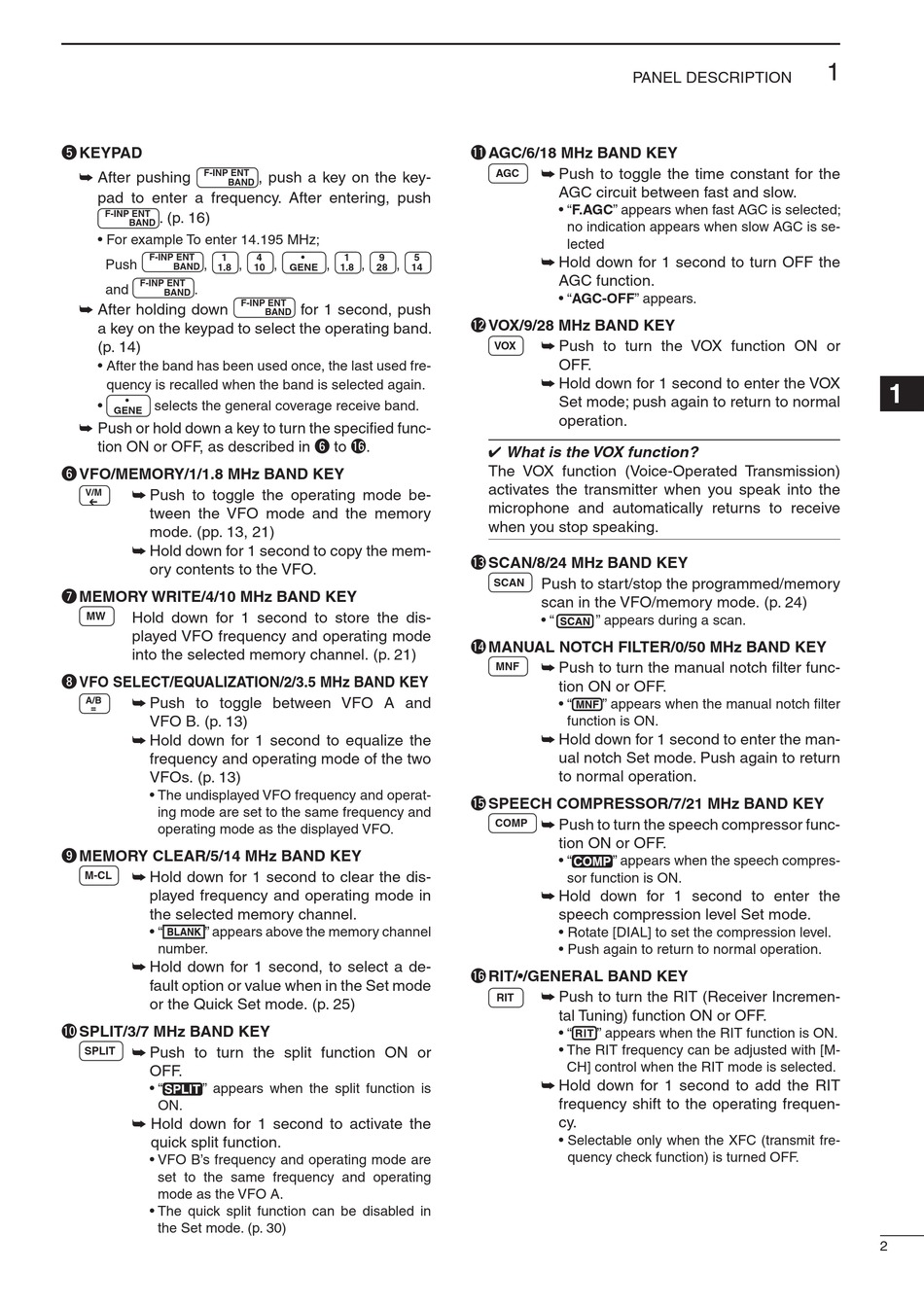

Icom IC-7200 Instruction Manual page 7

t KEYPAD
F-INP ENT
➥ After pushing
BAND
pad to enter a frequency. After entering, push
F-INP ENT
. (p. 16)
BAND
• For example To enter 14.195 MHz;
1
F-INP ENT
Push ,
BAND
1.8
F-INP ENT
and .
BAND
➥ After holding down
a key on the keypad to select the operating band.
(p. 14)
• After the band has been used once, the last used fre-
quency is recalled when the band is selected again.
•
•
selects the general coverage receive band.
GENE
➥ Push or hold down a key to turn the specified func-
tion ON or OFF, as described in y to !6 .
y VFO/MEMORY/1/1.8 MHz BAND KEY
➥ Push to toggle the operating mode be-
V/M
tween the VFO mode and the memory
mode. (pp. 13, 21)
➥ Hold down for 1 second to copy the mem-
ory contents to the VFO.
u MEMORY WRITE/4/10 MHz BAND KEY
MW Hold down for 1 second to store the dis-
played VFO frequency and operating mode
into the selected memory channel. (p. 21)
i VFO SELECT/EQUALIZATION/2/3.5 MHz BAND KEY
A/B
➥ Push to toggle between VFO A and
VFO B. (p. 13)
➥ Hold down for 1 second to equalize the
frequency and operating mode of the two
VFOs. (p. 13)
• The undisplayed VFO frequency and operat-
ing mode are set to the same frequency and
operating mode as the displayed VFO.
o MEMORY CLEAR/5/14 MHz BAND KEY
➥ Hold down for 1 second to clear the dis-
M-CL
played frequency and operating mode in
the selected memory channel.
• "
" appears above the memory channel
number.
➥ Hold down for 1 second, to select a de-
fault option or value when in the Set mode
or the Quick Set mode. (p. 25)
!0 SPLIT/3/7 MHz BAND KEY
➥ Push to turn the split function ON or
SPLIT
OFF.
• "
" appears when the split function is
ON.
➥ Hold down for 1 second to activate the
quick split function.
• VFO B's frequency and operating mode are
set to the same frequency and operating
mode as the VFO A.
• The quick split function can be disabled in
the Set mode. (p. 30)
, push a key on the key-
•
4 1 9
, , , , ,
10 GENE 1.8 28 14
F-INP ENT
for 1 second, push
BAND
!1 AGC/6/18 MHz BAND KEY
➥ Push to toggle the time constant for the
AGC
AGC circuit between fast and slow.
• "F.AGC" appears when fast AGC is selected;
no indication appears when slow AGC is se-
lected
5
➥ Hold down for 1 second to turn OFF the
AGC function.
• "AGC-OFF" appears.
!2 VOX/9/28 MHz BAND KEY
➥ Push to turn the VOX function ON or
VOX
OFF.
➥ Hold down for 1 second to enter the VOX
Set mode; push again to return to normal
operation.
4 What is the VOX function?
The VOX function (Voice-Operated Transmission)
activates the transmitter when you speak into the
microphone and automatically returns to receive
when you stop speaking.
!3 SCAN/8/24 MHz BAND KEY
Push to start/stop the programmed/memory
SCAN
scan in the VFO/memory mode. (p. 24)
• "
!4 MANUAL NOTCH FILTER/0/50 MHz BAND KEY
➥ Push to turn the manual notch filter func-
MNF
tion ON or OFF.
• "
function is ON.
➥ Hold down for 1 second to enter the man-
ual notch Set mode. Push again to return
to normal operation.
!5 SPEECH COMPRESSOR/7/21 MHz BAND KEY
➥ Push to turn the speech compressor func-
COMP
tion ON or OFF.
• "
sor function is ON.
➥ Hold down for 1 second to enter the
speech compression level Set mode.
• Rotate [DIAL] to set the compression level.
• Push again to return to normal operation.
!6 RIT/•/GENERAL BAND KEY
➥ Push to turn the RIT (Receiver Incremen-
RIT
tal Tuning) function ON or OFF.
• "
• The RIT frequency can be adjusted with [M-
CH] control when the RIT mode is selected.
➥ Hold down for 1 second to add the RIT
frequency shift to the operating frequen-
cy.
• Selectable only when the XFC (transmit fre-
quency check function) is turned OFF.
