Rear Panel Components - Hitachi Advanced Server HA810 G2 User Manual

Systems Insight
Display LED and
color
Power cap (flashing
amber)
IMPORTANT: If more than one DIMM slot LED is illuminated, further troubleshooting is required. Test each
bank of DIMMs by removing all other DIMMs. Isolate the failed DIMM by replacing each DIMM in a bank
with a known working DIMM.

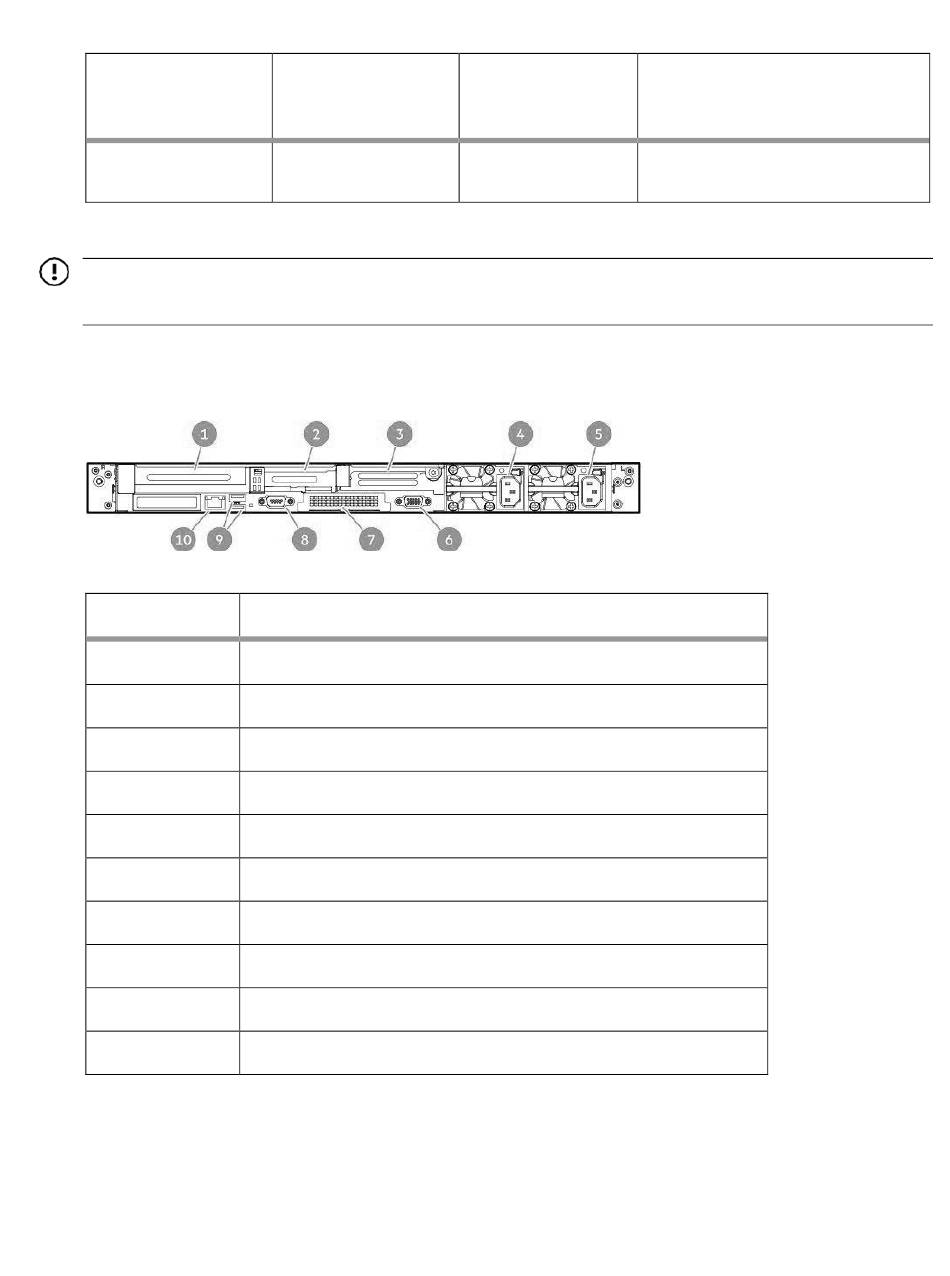

Rear panel components

Item
1
2
3
4
5
6
7
8
9
10
Health LED
Slot 1 PCIe4
Slot 2 PCIe4
Slot 3 PCIe4 (optional - requires second processor)
Power supply 2 (PS2)
Power supply 1 (PS1)
(VGA) port
OCP 3.0 adapter (if equipped)
Serial port (optional)
USB 3.0 ports
iLO Management Port
Hitachi Advanced Server HA810 G2 User Guide
System power
LED
Amber
Description
Status
Power is not available
16
