Secondary PCI riser options

Installing a secondary full-height PCI riser cage option

When installed, this riser cage supports full-height, 3/4-length expansion boards up to 9.5". PCIe4 slot 2 is no
longer available.
Prerequisites
This option requires a dual processor configuration.
Before installing this option, be sure you have the following:
• The components included with the hardware option kit
• Any expansion boards or controllers you plan to install
T-10 Torx screwdriver
•
• T-15 Torx screwdriver
Procedure
Power down the server.
1.
Remove all power:
2.
a. Disconnect each power cord from the power source.
b. Disconnect each power cord from the server.
Do one of the following:
3.
Extend the server from the rack.
•
Remove the server from the rack.
•
Remove the access panel.
4.
Remove the primary PCI riser cage Remove the primary PCI riser cage.
5.

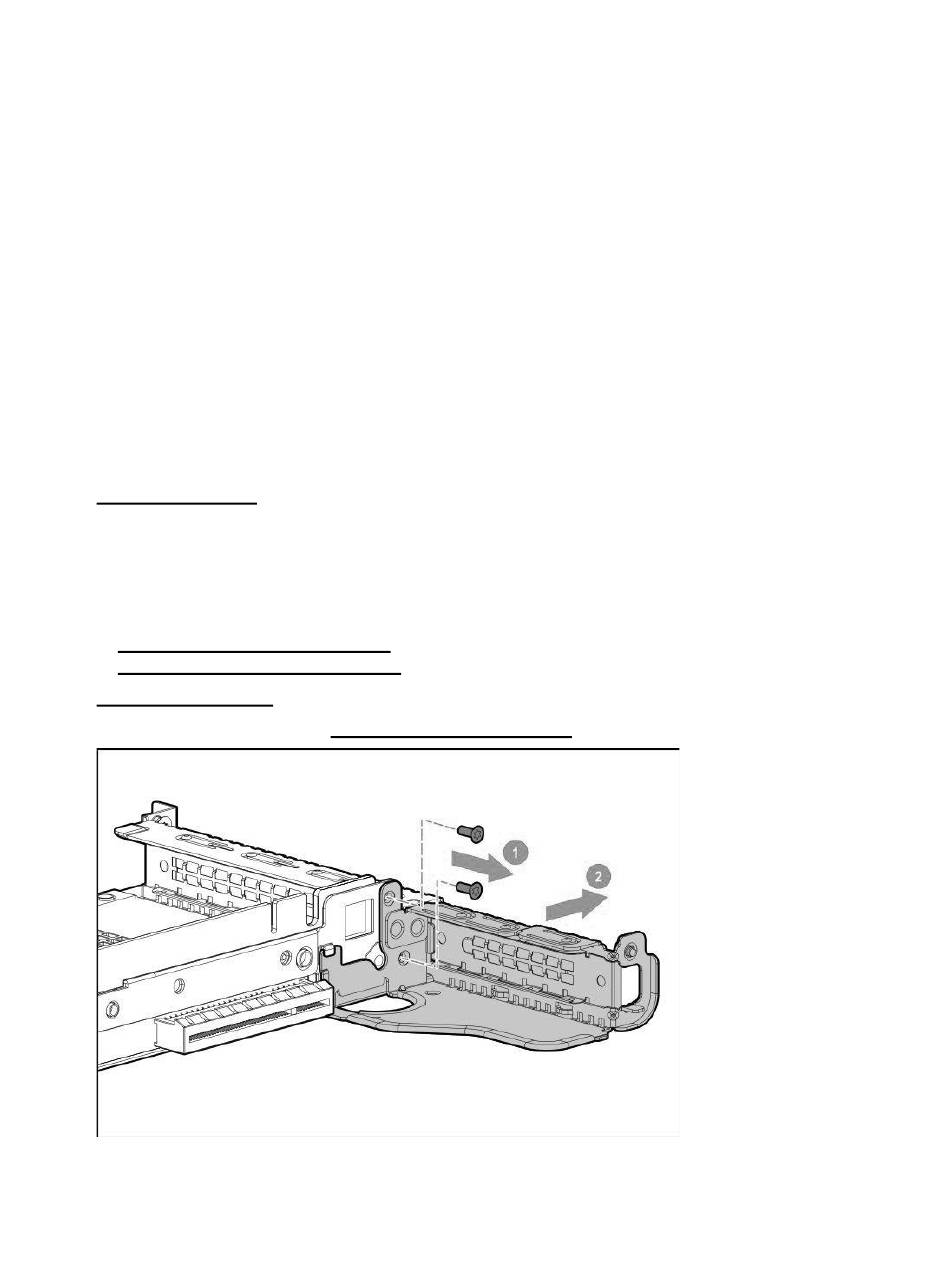

Use a T-10 Torx screwdriver to remove the slot 2 bracket from the primary riser cage.
6.
