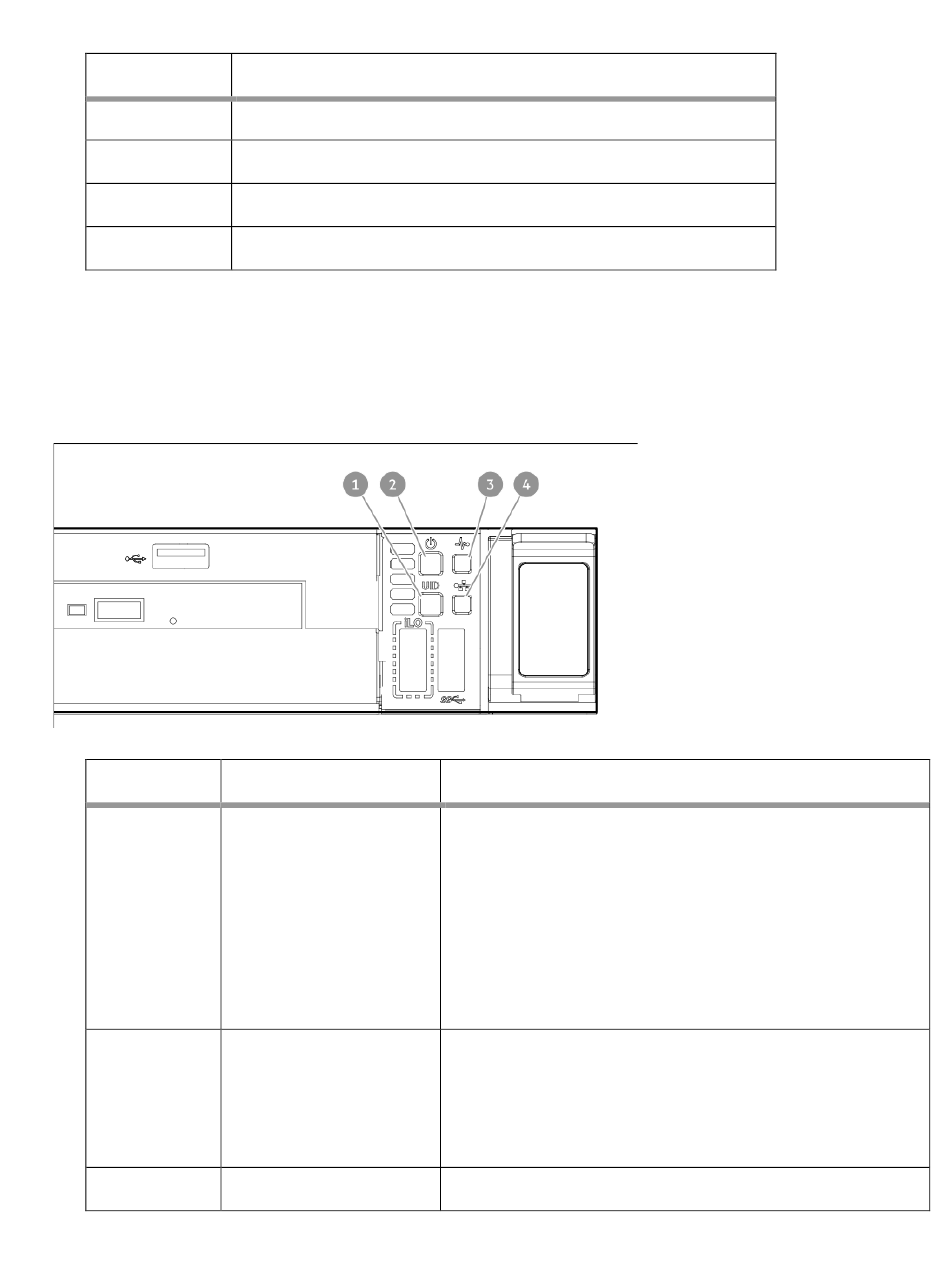

Front panel LEDs and buttons

8SFF
Item
1
2
3
USB 2.0 port (optional)
Systems Insight Display (optional)
USB 3.0 port
Drive bays
Description
UID button/LED
1
Power On/Standby
button and system
power LED1
Health LED
1
Hitachi Advanced Server HA810 G2 User Guide
Description
Solid blue = Activated
Flashing blue:
1 Hz = Remote management or firmware upgrade
in progress
4 Hz = iLO manual reboot sequence initiated
8 Hz = iLO manual reboot sequence in progress
Off = Deactivated
Solid green = System on
Flashing green = Performing power on sequence
Solid amber = System in standby
Off = No power present
Solid green = Normal
Status
2
