Operator's Guide
Additional auxiliary simulation tests
Additional confirmation that any of the programmed
auxiliary options are working correctly, can be
simulated by using the manual tests section in the
'lamp and auxiliary test' menu. Where EBS parameters
can be adjusted to activate the auxiliary options.
The following parameters can be adjusted:
› Control pressure
Load
›
Speed
›
Click on the modify box adjacent to the required
parameter.
Now use the bar to increase or decrease the selected
parameter.
On completion of the EOLT click on the 'Next' button
or 'Quit' button to return to EOLT start screen.
2022
DIAG++ DIAG++

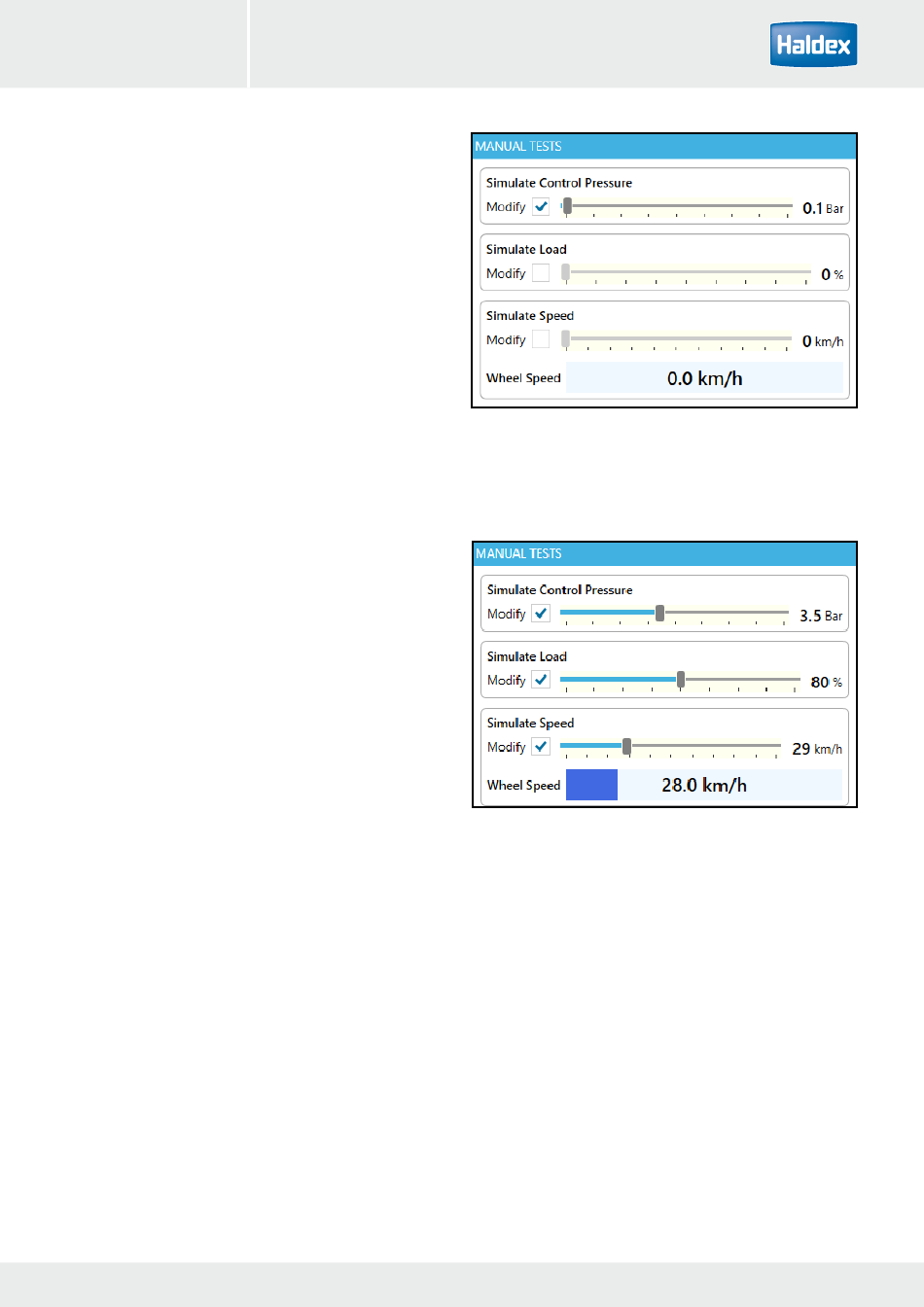

Manual simulation controls
Slide the bar to increase or decrease the value
