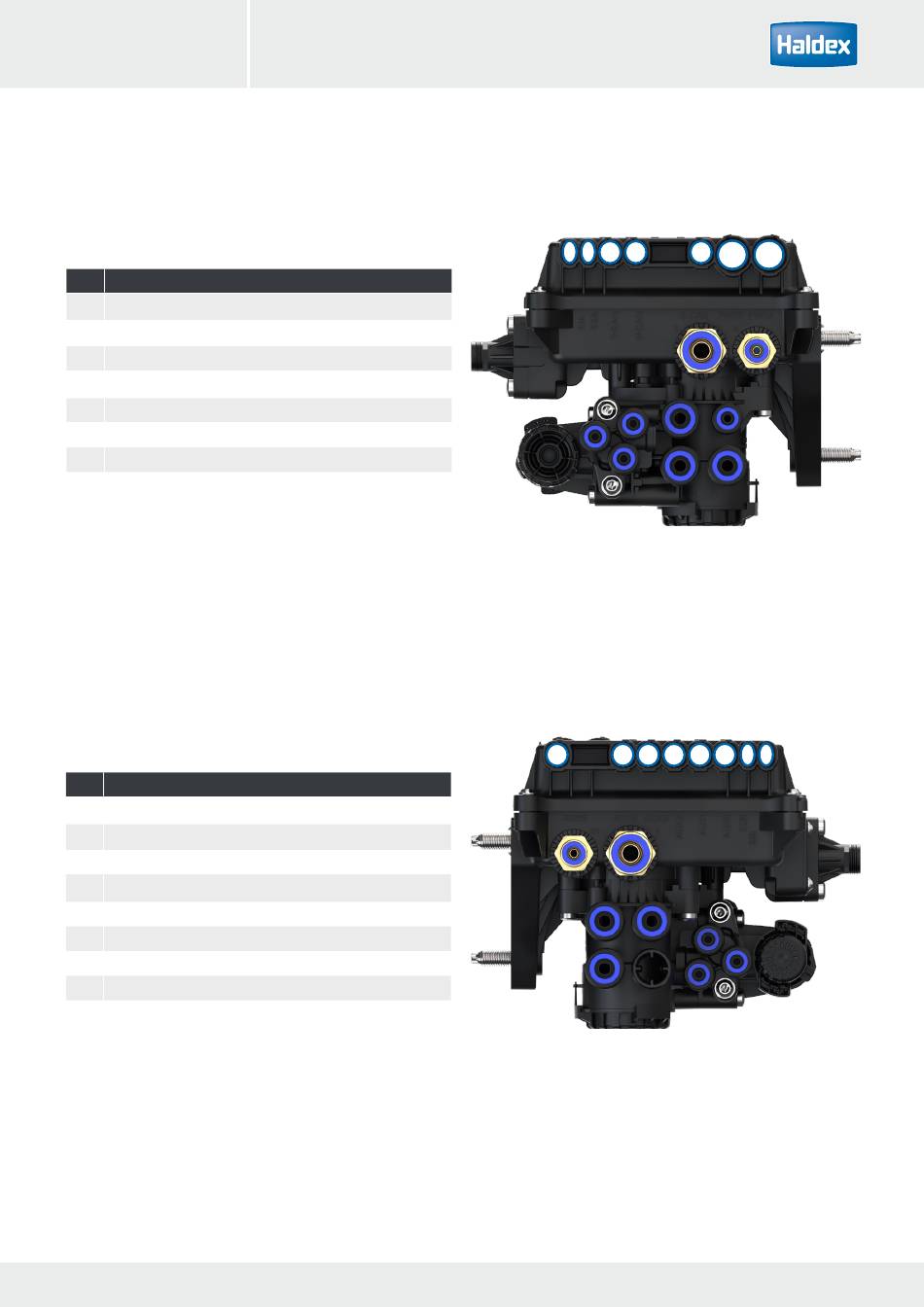

Haldex DIAG++ Operator's Manual page 17

Operator's Guide
Premium 2M EBS connections
No. Description
1 ISO 7638 PWR-A
2 ISO 12098 / PWR-B
3 S-CAN
4 H-CAN
5 T-CAN
6 Sensor S2A
7 Sensor S1A
No. Description
8 AUX 5
9 AUX 4
10 AUX 3
11 AUX 2
12 AUX 1
13 AUX 0
14 Sensor S2B
15 Sensor S1B
2022
DIAG++ DIAG++
Innovative Vehicle Solutions
7 6 5 4 3
8 9 10 11 12 13
2 1
14 15
17
