AUX Configuration
Click on the 'ECU' button then click the 'Edit' button
to setup the auxiliary configuration.
The following screen will appear.

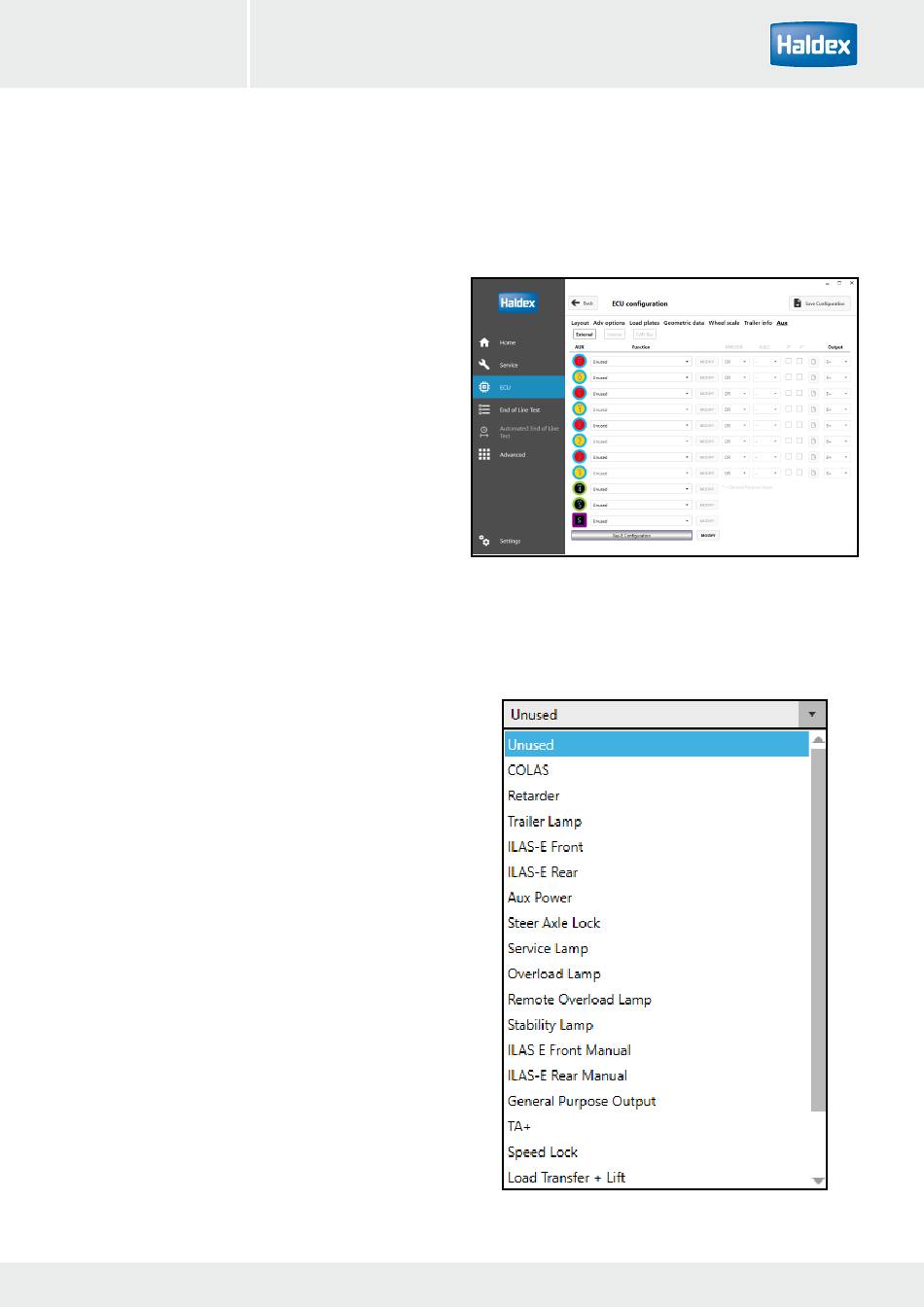

The screen shows the various auxiliary connections
that can be used (i.e. AUX 0 to 3, 4 and 5).
Clicking on the required AUX down arrow displays a
listing of options that can be selected.
Example: AUX 1 options expanded ready for selection.
