ECU connections

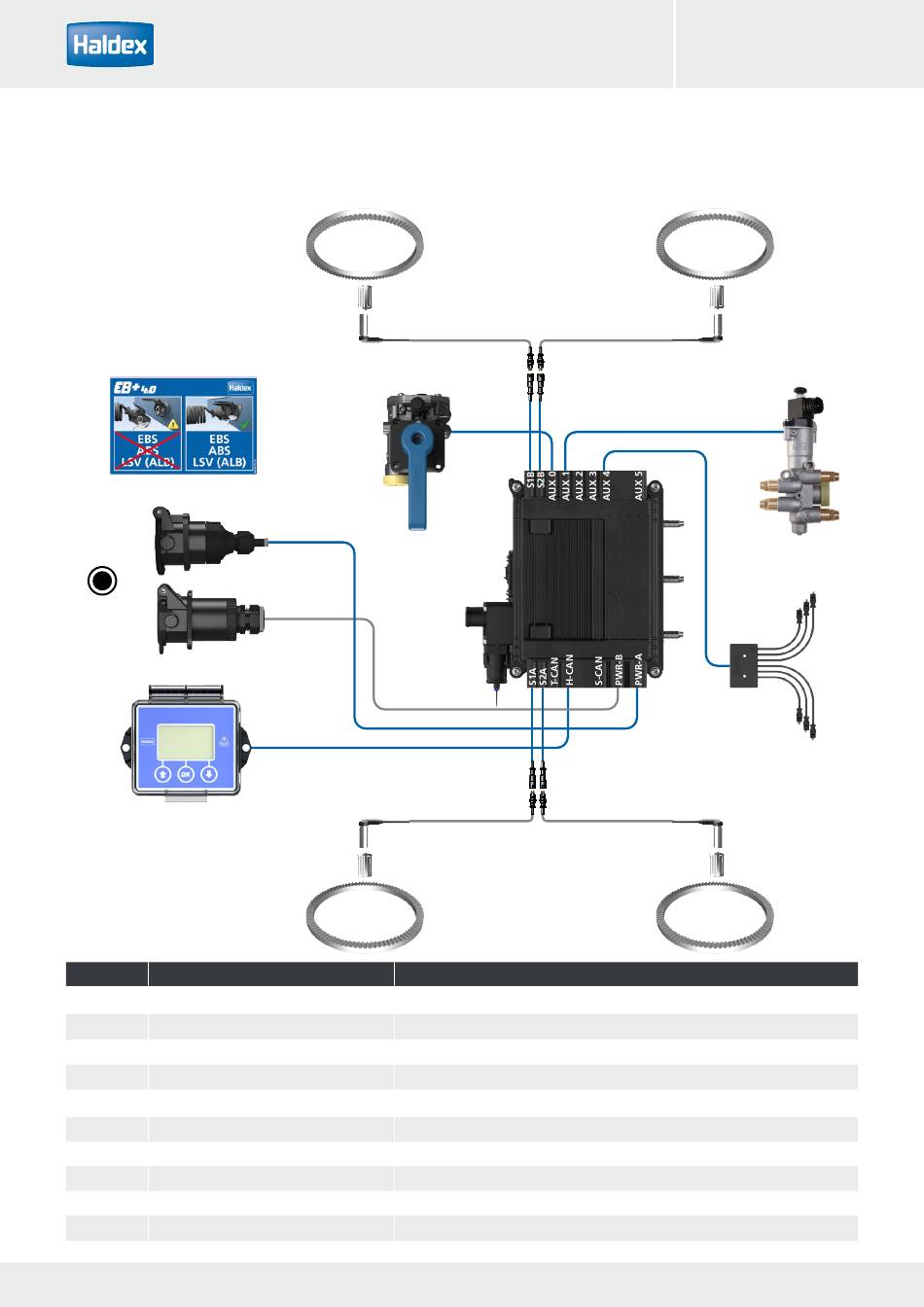

Example - Premium 2M EBS chassis components
2
3
4
5
Item Description
1 EB+ 4.0 assembly
2 EB+ label
3 ISO 7638 7-pin socket assembly
4 ISO 12098 / PWR-B
5 EB+ Info Centre
6 Sensor assembly
7 Exciter
8 RTR
9 Lift axle
10 Lining Wear System (LWS)
16
7
6
S1B
8
1
S1A
6
7
Notes
Premium version shown
Optional safety back up cable & Super AUX / Additional inputs
Programmable via DIAG++
Programmable via DIAG++
Programmable via DIAG++
