Home screen

1
2
3
4
5
6
Enter into the DIAG++ program by the short-cut icon created on your desktop.

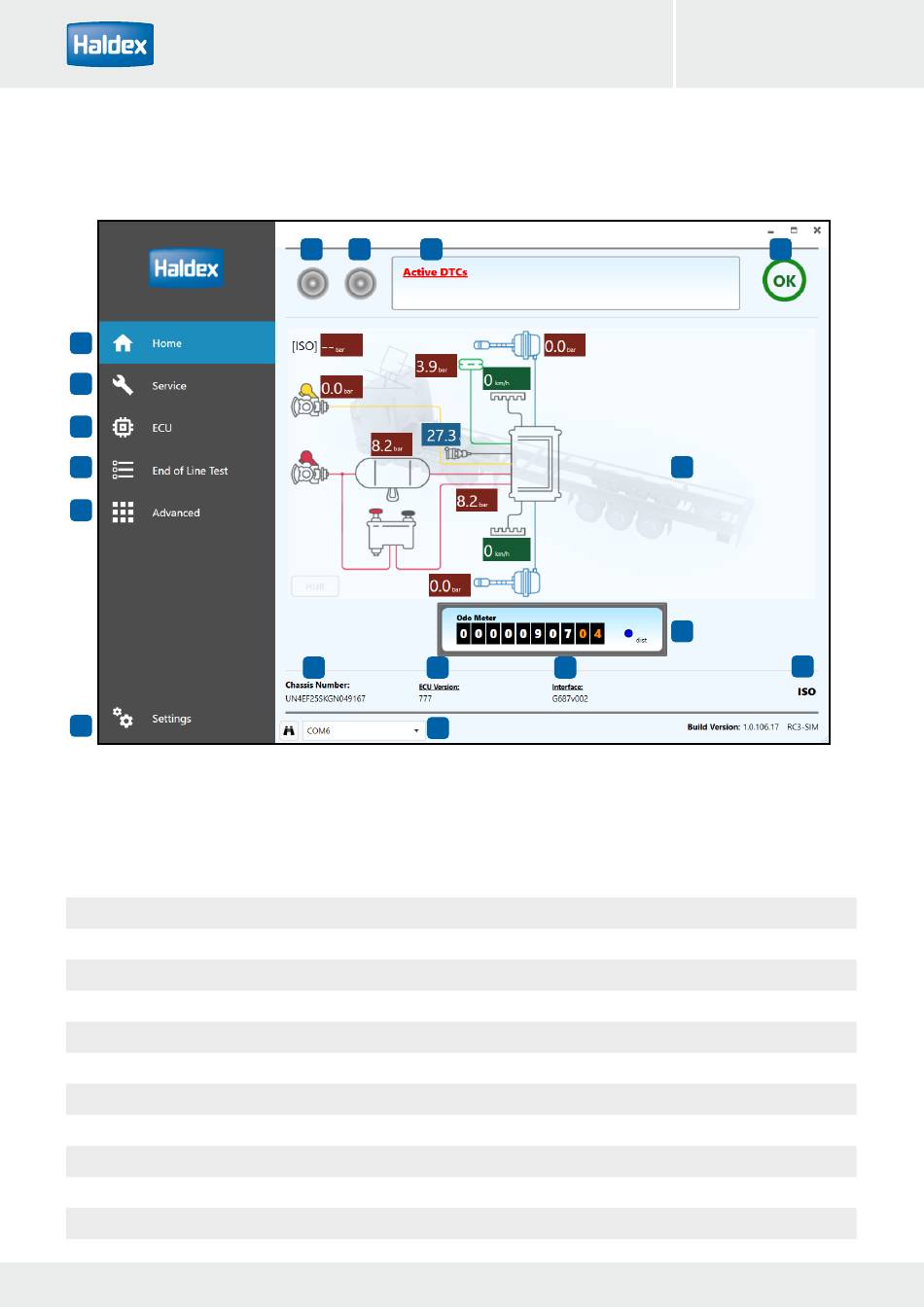

Understanding the home screen display
01 Home window
02 Service options
03 ECU options
04 'End-of-line Test' (EOLT) procedure
05 Advanced options
06 Settings
07 PC connection port indication
08 EBS connection graphic
09 Chassis number
10 ECU software version number
11 PC Interface version number
24
14 15 16
9 10
7
12
13
14
15
16
17
Innovative Vehicle Solutions
DIAG++ Operator's Guide
8
13
11
Power source indicator
Odometer reading - total distance
System information lamp
System warning lamp
Shows active diagnostic trouble codes
Animation (Not implemented fully yet)
17
12
