Haldex DIAG++ Operator's Manual page 25

Operator's Guide
8
1
Service pressure
2
Reservoir
Supply pressure
P&S valve
Enter into the DIAG++ program by the short-cut icon created on your desktop.

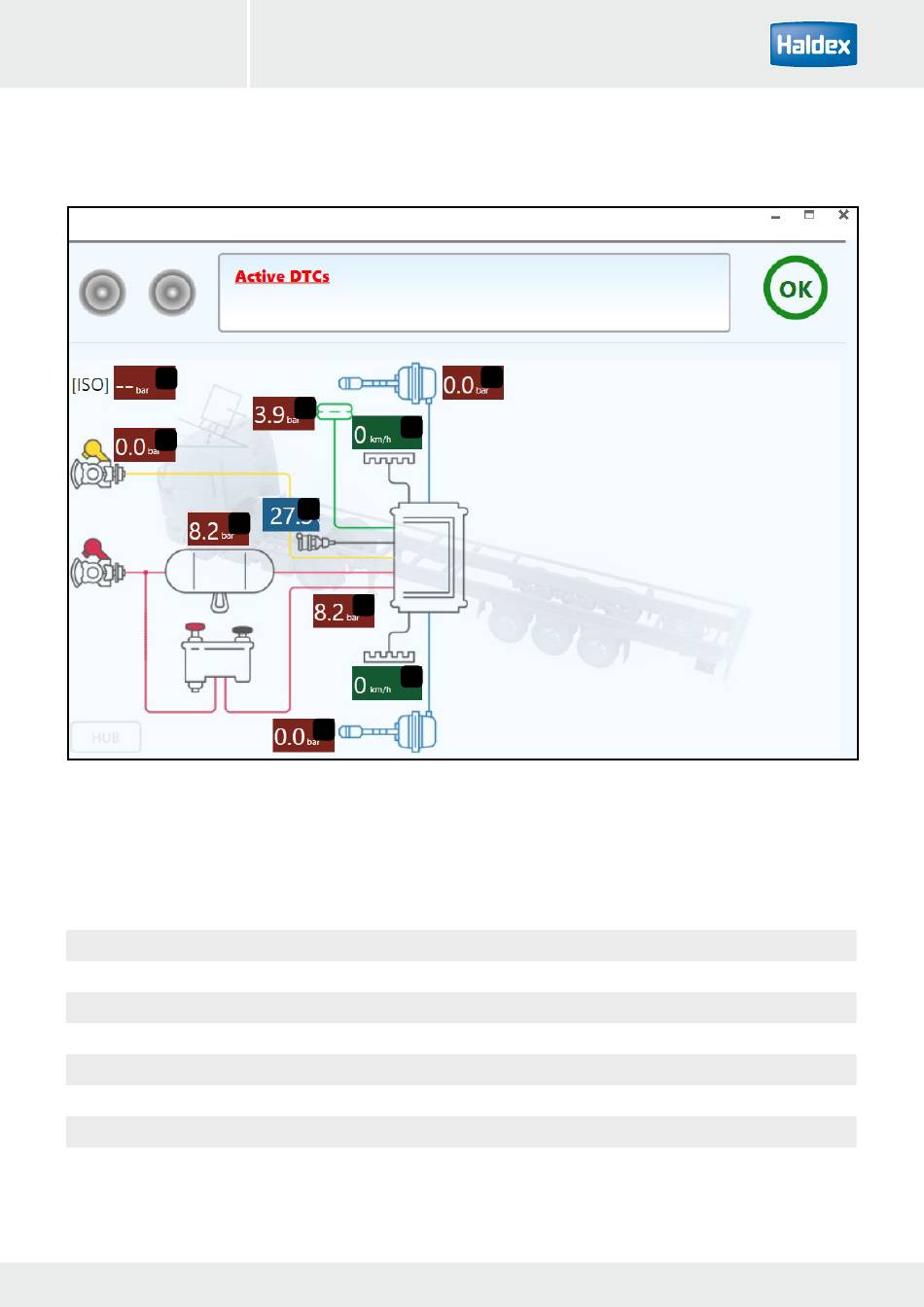

Understanding the home screen display
01 Service pressure (bar)
02 Reservoir pressure (bar)
03 System supply voltage (volts)
04 Supply pressure (bar)
05 Master ECU - brake actuator pressure (bar)
06 Master ECU - wheel speed (km/h)
07 Master ECU - air suspension pressure (bar)
08 ISO pressure (not implemented yet)
2022
DIAG++ DIAG++
7
6
3
Master
ECU
4
6
Brake
5
Actuator
