Programming Premium AUX using DIAG++
Programming of AUX 0 to AUX 3 on EB+ 4.0 is only
possible using DIAG++ software.

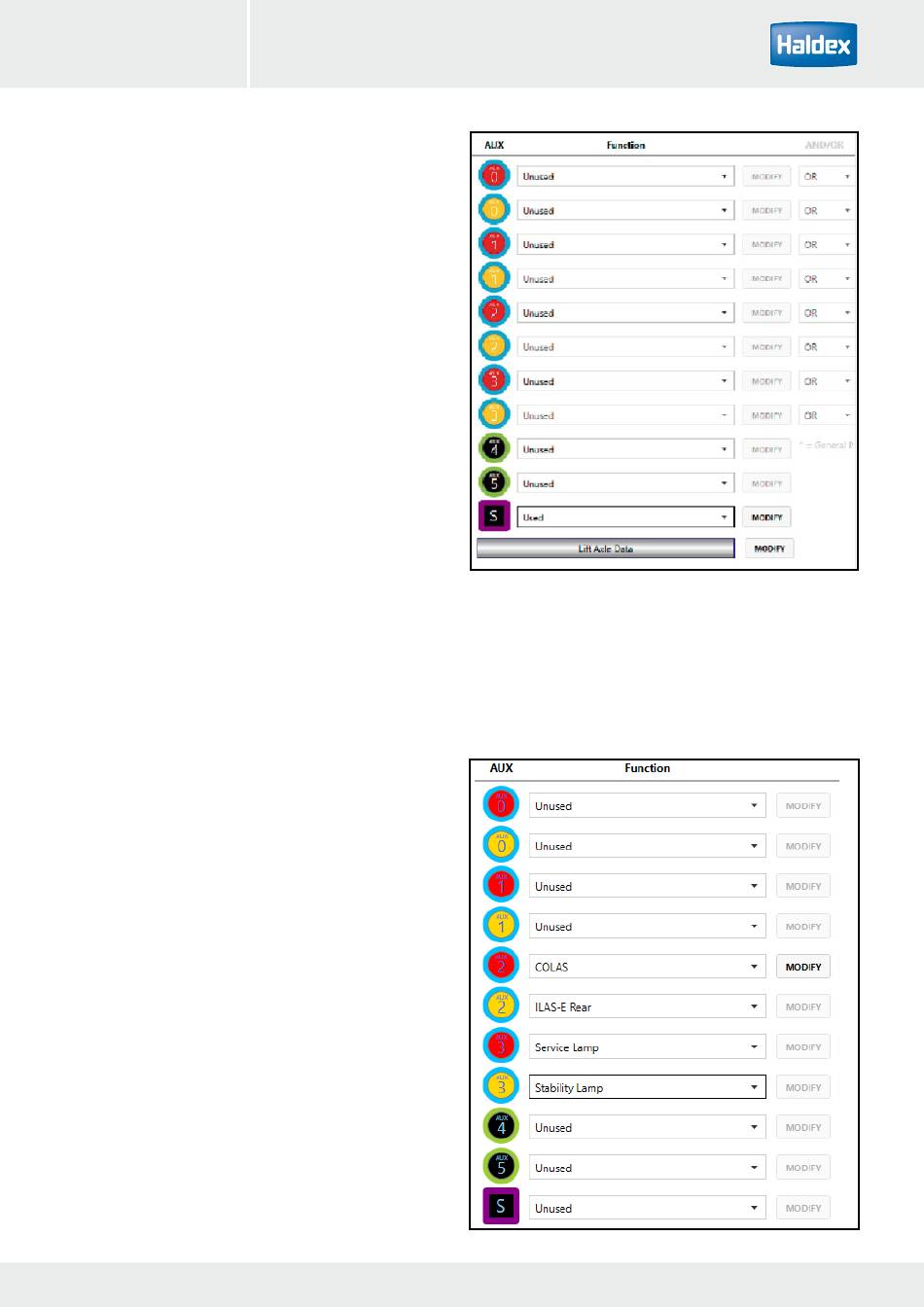

The 'AUX configuration' screen shows the various aux-
iliary connections that can be used.
AUX 0 Red & yellow
AUX 1 Red & yellow
AUX 2 Red & yellow
AUX 3 Red & yellow
AUX 4
AUX 5
Super AUX
Clicking on the drop down arrow displays a list of op-
tions that can be selected on that auxiliary.
Premium AUX example
AUX 2 (red AUX) COLAS®
AUX 2 (yellow AUX) ILAS®-E front
AUX 3 (red AUX) Service lamp
AUX 3 (yellow AUX) Stability lamp
