Haldex EB+ Info Centre Operator's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

OPERATOR'S GUIDE
Innovative Vehicle Solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EB+ Info Centre and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Haldex EB+ Info Centre

Summary of Contents for Haldex EB+ Info Centre

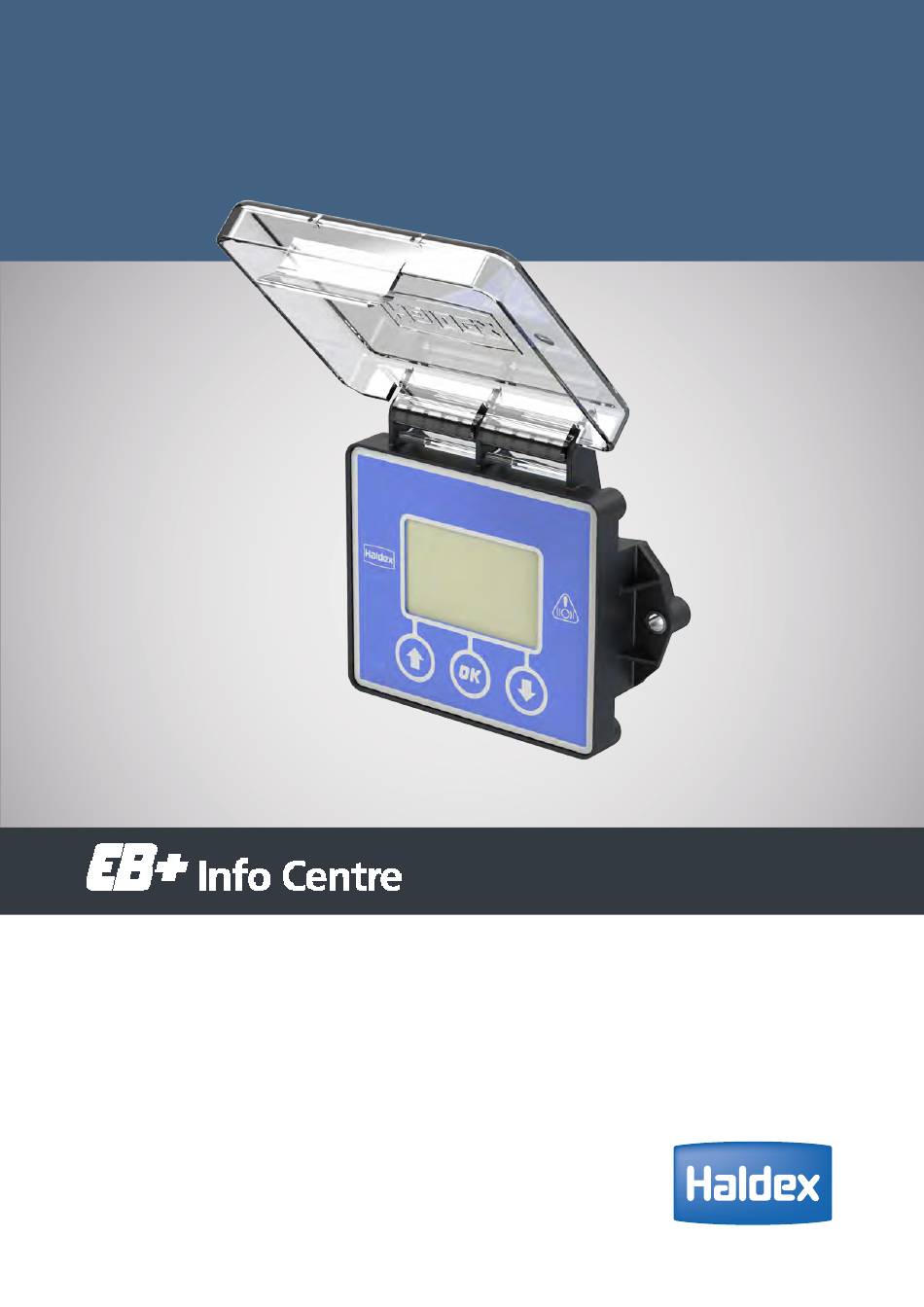

  • Page 1 OPERATOR'S GUIDE Innovative Vehicle Solutions...
  • Page 2 › Use only genuine Haldex parts in repairs. This manual is based on the EB+ Info Centre using Due to continuous development the right is reserved › software release G548 (G585 with TPMS from mid- to alter the specification without notice.

  • Page 3: Table Of Contents

    Settings / EB+ Info Centre / Language ...... 55 Information / DTC / Active ........15 Settings / EB+ Info Centre / Start screen ....56 Information / DTC / Stored ........16 Settings / EB+ Info Centre / PIN ........ 57 Information / DTC / Clear..........

  • Page 4: Introduction

    (ISO 7638 permanent) information is transferred to the Info Centre memory, which can be recalled. Power is supplied from the vehicle system via the ECU diagnostics connector. EB+ Info Centre comprises an LCD (Liquid Crystal Display) and three buttons marked with up / down arrows and an OK button.

  • Page 5: Front Panel Operation

    OK Button Enter into sub menus Enter / confirm EB+ Info Centre actions Enter / confirm EB+ Info Centre value changes Enter / confirm EB+ Info Centre configuration changes This button is used to: Switch 'on' the EB+ Info Centre Unit...

  • Page 6: Service Led

    Flashing "on" Flashing "off" Flashing "off" 'off'. Indicates that the EB+ Info Centre is OK (only when running on its internal battery) or that the EB+ power Service LED off Service LED off is connected, and it is configured to show faults (see "Settings / LED settings"...

  • Page 7: Function Bar

    Operator's guide EB+ Info Centre Function bar Function bar The function bar is used in the sub menus to extend the actions of the, buttons. Example: Function Bar Function Bar is used to select imperial units (mi) is used to select metric units (Km)

  • Page 8: Please Wait Display

    EB+ Info Centre Operator's guide Please wait display Please wait display International standards for diagnostic commands demand a minimum of 10 seconds wait between diagnostic sessions. The please wait display indicates that the EB+ Info Centre wants to start a new diagnostic session within the 10 seconds.

  • Page 9: Info Centre Menu Overview

    Operator's guide EB+ Info Centre Info Centre menu overview Info Centre menu overview Splash screen Low battery warning screen DTC function (if faults present) Service due warning screen User configurable start screen 2021 Innovative Vehicle Solutions...

  • Page 10: Ebs Menu

    EB+ Info Centre Operator's guide EBS menu Information Active Stored Clear Service Lamp LED Flashing EXIT Lining Wear Lining Wear LWI Reset EXIT Tyre Pressure Tyre Pressure Distance Odometer Data Trip 1 Data Trip 2 Data Service Data Service Data...

  • Page 11: U-Abs Menu

    Operator's guide EB+ Info Centre U-ABS menu When connected to an U-ABS, the EB+ Info Centre will not provide the same functions as when it is connected to an EBS. Examples: The information menu will not display the Lining Wear System.

  • Page 12: Password Protection

    1 minute in a menu or 2 minutes in a function. If the user enters a function whilst the EB+ Info Centre is locked they will be prompted to enter the PIN as per the unlock function in the settings menu.

  • Page 13: Information Menu

    Operator's guide EB+ Info Centre Information menu DTC: Diagnostic Trouble Codes (see "Information / DTC" on page 14). Lining wear: Displays lining wear status (OK or service). This menu will be greyed out if it is not configured in the EB+ using the diagnostic software (see "Informa- tion / Lining wear"...

  • Page 14: Information / Dtc

    Confirmation of this action is required. Service lamp: Displays the reason for the flashing trailer warning lamp. LED flashing: Displays the reason for the flashing EB+ Info Centre service LED. Exit: Return back to the information menu. Innovative Vehicle Solutions...

  • Page 15: Information / Dtc / Active

    Operator's guide EB+ Info Centre Information / DTC / Active Displays up to 8 active DTCs. No active DTCs present. DTCs No DTCs Displays up to 8 Active DTCs. DTCs DTCs Information displayed: AUX4 10:35 26.2°C AUX4 Fault condition. 05/01/2011 10:35 The time the fault condition was stored.

  • Page 16: Information / Dtc / Stored

    EB+ Info Centre Operator's guide Information / DTC / Stored Displays up to 8 stored DTCs. Contains the history of repaired active faults. All active faults are transferred into the stored memory once they are corrected. No stored DTCs present.

  • Page 17: Information / Dtc / Clear

    Operator's guide EB+ Info Centre Information / DTC / Clear Clears all the DTCs from the EB+, a confirmation of action using the password is required. Use the button to clear the stored DTCs. Use the button to exit the clear DTC menu without clearing the stored fault codes.

  • Page 18: Information / Dtc / Service Lamp

    EB+ Info Centre Operator's guide Information / DTC / Service lamp Displays the reason for the flashing trailer warning lamp. This indicates that there are no faults present. This indicates that there is a DTC fault present. Innovative Vehicle Solutions...

  • Page 19: Information / Dtc / Led Flashing

    Operator's guide EB+ Info Centre Information / DTC / LED flashing Displays the reason for the flashing EB+ Info Centre service LED. This indicates that there are no faults present. This indicates that there is a DTC fault present. 2021...

  • Page 20: Information / Dtc / Exit

    EB+ Info Centre Operator's guide Information / DTC / Exit Returns back to the information menu. Use the buttons to highlight the exit option. Use the button to return back to the information menu. Innovative Vehicle Solutions 2021...

  • Page 21: Information / Lining Wear

    Operator's guide EB+ Info Centre Information / Lining wear Lining wear: Displays the brake lining wear status (OK or service) of the trailer. This menu will be greyed out if it is not configured in the EB+ using the diagnostic software (see "Diagnostic software"...

  • Page 22: Information / Lining Wear / Status

    EB+ Info Centre Operator's guide Information / Lining wear / Status Displays the trailer brake lining wear condition. Brake lining wear is ok. No service action is required. Service action is required. Brake lining wear is not ok. Brake linings need replacing.

  • Page 23: Information / Lining Wear / Lwi Reset

    Note: › Resetting the LWI memory will cause the EB+ to power cycle and the EB+ Info Centre to return to its start menu. Check the status of the trailer brake lining wear using the lining wear › menu following the replacement of the brake linings (i.e. OK or service).

  • Page 24: Information / Lining Wear / Exit

    EB+ Info Centre Operator's guide Information / Lining wear / Exit Return to the information menu. Use the buttons to highlight the exit option. Use the button to return back to the information menu. Innovative Vehicle Solutions 2021...

  • Page 25: Information / Tyre Pressure

    Operator's guide EB+ Info Centre Information / Tyre pressure The Tyre Pressure Monitoring System constantly measures the air pressure and temperature in the trailer tyres. Pressure and temperature of highlighted tyre e.g. Axle 1 left Trailer king pin Tab key...
  • Page 26 EB+ Info Centre Operator's guide The trailer and TPMS configuration are setup using the diagnostic software (see "Diagnostic software" on page 77) Trailer configuration examples: Tri-axle trailer Individual tyre pressures will be displayed. Twin wheeled tri-axle trailer Individual tyre pressures will not be displayed on this screen, the tyre information is displayed in the sub menu via the tyre data key.
  • Page 27 Operator's guide EB+ Info Centre Displaying individual tyre information Use the button to move and highlight individual tyres. Use the button to display the highlighted tyre data. Information displayed: 0C0543A1 Wheel Unit Sensor ID 8.04 Bar Tyre pressure 35°C Tyre temperature...
  • Page 28 EB+ Info Centre Operator's guide Tyre fault condition examples No signal from TPMS wheel unit sensor Use the button to move and highlight the faulty tyre. Use the button to display the highlighted tyre data. Tyre pressure low warning Use the button to move and highlight the faulty tyre.
  • Page 29 Operator's guide EB+ Info Centre Trailer and wheel configuration examples Tyre position on trailer Tyre data Use the button to display the highlighted tyre data. Use the button to display the highlighted tyre data. Use the button to display the highlighted tyre data.
  • Page 30 There are two modes of operation: › The screen will be displayed in the EB+ Info Centre start screen section during power-up following a problem during the last journey. Faulty tyre(s) will be highlighted displaying recorded data. The faulty tyre can be selected using the tab key and the stored data will be displayed.

  • Page 31: Information / Distance

    Operator's guide EB+ Info Centre Information / Distance Odometer Displays the mileage that is stored in the EB+. It can be configured to display in miles or Km. Trip 1: Displays the mileage recorded by the EB+ since trip 1 was last reset.
  • Page 32 EB+ Info Centre Operator's guide Service: Displays the distance (Miles or Km) until the next service. Service: Displays the number of days until the next service. Exit: Press the button to return to the information menu. Innovative Vehicle Solutions 2021...

  • Page 33: Information / Trailer

    (see page 37) Fleet+ data: The Fleet+ PC program enables the operator to view trailer information. The EB+ Info Centre extracts summary data to provide an understanding of recorded events (see "Information / Trailer / Fleet+ data" on page 38). Exit: Return to the information menu (see "Information /...

  • Page 34: Information / Trailer / Load Plate

    PP3 laden PP1 control PP3 unladen Load plate displays: Depending on the EB+ configuration, the EB+ Info Centre will automatically change its load plate display. Each configuration contains 3 x pages for each load plate. System load Plate name EB+ 2M...

  • Page 35: Information / Trailer / Configuration

    Operator's guide EB+ Info Centre Information / Trailer / Configuration Configuration: Shows a graphic display of the EB+ configuration. Shows a graphic display of the EB+ brake configuration. Press the button to return to the trailer menu. Available configuration options: REV or Non REV ›...

  • Page 36: Information / Trailer / Vin

    EB+ Info Centre Operator's guide Information / Trailer / VIN VIN: Displays the VIN from the EB+ (Diagnostic software programmable) Displays the OEM from the EB+ (Diagnostic software programmable) HALDEX80123456789 OEM: Haldex CVS Press the button to return to the trailer menu.

  • Page 37: Information / Trailer / Ecu Version

    Operator's guide EB+ Info Centre Information / Trailer / ECU version ECU version: ECU version Displays the EB+ software version Serial No Displays the EB+ serial number IC version Displays the EB+ Info Centre software version 2021 Innovative Vehicle Solutions...

  • Page 38: Information / Trailer / Fleet+ Data

    The EB+ Info Centre extracts summary data to provide an understanding of recorded events. Fleet+ data EB+ Info Centre downloading latest Fleet+ data from the EBS. Trips A trip is recorded from when the vehicle achieves 10 km/h and a 1 km distance until ISO power is switched 'off'.
  • Page 39 Operator's guide EB+ Info Centre Snapshots A snapshot is recorded when certain conditions are triggered. Displayed information: Number of new trouble codes. Stability number of roll stability braking interventions. Over speed Number of trips where programmed speed threshold is exceeded (default 100 km/h).

  • Page 40: Information / Trailer / Exit

    EB+ Info Centre Operator's guide Information / Trailer / Exit Exit: Return to the main menu. Use the buttons to highlight the exit option. Use the button to return back to the main menu. Innovative Vehicle Solutions 2021...

  • Page 41: Test Menu

    Operator's guide EB+ Info Centre Test menu Load: Displays the current axle load (see "Test / Load" on page 42). Tilt angle: Displays the current lean angle of the trailer (see "Test / Tilt angle" on page 43). Air pressure: Displays the current trailer air pressures (see "Test / Air...

  • Page 42: Test / Load

    EB+ Info Centre Operator's guide Test / Load Load: Displays the current trailer load. Display units: kg or lbs as configured. Bar chart The accuracy of the load readout is dependent on correct information setup during the programming of the ECU using diagnostic software.

  • Page 43: Test / Tilt Angle

    Operator's guide EB+ Info Centre Test / Tilt angle Tilt angle: Shows the angle of the trailer in degrees as read from the EB+. It displays the angle in two modes: › Numerical readout Arrow indication (see below) › Indicates that the trailer is leaning to the left (as viewed from the rear of the trailer) by more than 6°.

  • Page 44: Test / Air Pressure

    EB+ Info Centre Operator's guide Test / Air pressure Air pressure: Displays the EB+ air pressures in either PSI or bar depending on the EB+ configuration. The bar chart will display values up to a maximum of 8 bar. Use the arrows to navigate up and down the air pressure contents.

  • Page 45: Test / Wheels

    Operator's guide EB+ Info Centre Test / Wheels Wheels: Displays the current trailer wheel speeds in either Kilometers (maximum of 20 Km/h displayed) or miles per hour depending on the EB+ configuration. Press the button to return to the test menu.

  • Page 46: Test / Aux Test

    EB+ Info Centre Operator's guide Test / AUX test AUX test: This menu is used to switch 'on' or 'off' the EB+ auxiliary functions. The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock" on page 58).

  • Page 47: Test / Brake Test

    Operator's guide EB+ Info Centre Test / Brake test Brake test: Used to switch 'on' or 'off' the EB+ load sensing function. arrow to switch 'off' the EB+ load sensing Use the function. Use the arrow to switch 'on' the EB+ load sensing function.

  • Page 48: Settings Menu

    Used to set and reset the EB+ service interval (see "Settings / Service" on page 49). Info Centre: EB+ Info Centre settings menu (see "Settings / EB+ Info Centre" on page 53). TPMS ID: Displays a complete list of configured wheels and sensor ID's and allows the operator to swap over wheel sensors (see "Settings / TPMS ID"...

  • Page 49: Settings / Service

    Operator's guide EB+ Info Centre Settings / Service Interval: Used for altering the EB+ service indicator. Both days and distance (miles or km) can be altered. The entered durations will be added to the current odometer reading and only become active when the service reset is actioned.

  • Page 50: Settings / Service / Interval

    EB+ Info Centre Operator's guide Settings / Service / Interval Interval: Used for altering the EB+ service indicator. Both days and distance (miles or km) can be altered. The entered durations will be added to the current odometer reading and only become active when the service reset is actioned.

  • Page 51: Settings / Service / Reset

    Note: The amended duration will be the internally stored service interval. The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock" on page 58). Use the button to exit the service reset menu without activating the service interval indicator settings.

  • Page 52: Settings / Service / Exit

    EB+ Info Centre Operator's guide Settings / Service / Exit Exit: Return to the main menu. Use the buttons to highlight the exit option. Use the button to return back to the main menu. Innovative Vehicle Solutions 2021...

  • Page 53: Settings / Eb+ Info Centre

    PIN: A PIN is used to protect a number of the EB+ Info Centre menus. Unlock: Use this menu to unlock the EB+ Info Centre via a valid PIN. Wheel scale: Displays the EB+ wheel scale and sensor teeth settings.
  • Page 54 EB+ Info Centre Operator's guide Date: The time and date stored in the EB+ Info Centre are used to record the time and date at which EB+ faults occur. Time: Used to set the 24hr clock time. Units: Use to select metric or imperial units for the EB+ Info Centre.

  • Page 55: Settings / Eb+ Info Centre / Language

    Operator's guide EB+ Info Centre Settings / EB+ Info Centre / Language Language: The EB+ Info Centre has multiple language options. Enter into the language menu and use the arrows to navigate to the required language, and select using the button.

  • Page 56: Settings / Eb+ Info Centre / Start Screen

    Settings / EB+ Info Centre / Start screen Start screen: This menu allows the user to choose EB+ Info Centre functions to be displayed at start up before the main menu or by selecting the 'start screen' option on the main menu.

  • Page 57: Settings / Eb+ Info Centre / Pin

    4-digit number using the EB+ Info Centre buttons. Sequence for Resetting the PIN number: Enter the current PIN to unlock the EB+ Info Centre › (see "Settings / EB+ Info Centre / Unlock" on page 58).

  • Page 58: Settings / Eb+ Info Centre / Unlock

    EB+ Info Centre Operator's guide Settings / EB+ Info Centre / Unlock Unlock: Use this menu to unlock the EB+ Info Centre via a valid PIN. PIN activity: The Info Centre PIN remains active for 1 minute in a menu.

  • Page 59: Settings / Eb+ Info Centre / Wheel Scale

    (odoscale), this can be in either dynamic radius (Rdyn) or turns per mile (Tpm). The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock" on page 58). Use the arrows to change the value of the highlighted digit.

  • Page 60: Settings / Eb+ Info Centre / Date Format

    Settings / EB+ Info Centre / Date format Date format: Allows the user to set the date format. The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock" on page 58). Three options available: dd/mm/yyyy...

  • Page 61: Settings / Eb+ Info Centre / Date

    EB+ Info Centre Settings / EB+ Info Centre / Date Date: The time and date stored in the EB+ Info Centre are used to record the time and date at which EB+ faults occur. The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock"...

  • Page 62: Settings / Eb+ Info Centre / Time

    EB+ Info Centre Operator's guide Settings / EB+ Info Centre / Time Time: Used to set the 24 hr clock time. The time will be set at the factory to Coordinated Universal Time (UTC). The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock"...

  • Page 63: Settings / Eb+ Info Centre / Units

    Use to select metric or imperial units for the EB+ Info Centre. The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock" on page 58). Use the arrow to select miles per hour.

  • Page 64: Settings / Eb+ Info Centre / Contrast

    Settings / EB+ Info Centre / Contrast Contrast: Use this menu to adjust the LCD screen contrast. The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock" on page 58). Use the arrows to change the contrast value.

  • Page 65: Settings / Eb+ Info Centre / Display

    Operator's guide EB+ Info Centre Settings / EB+ Info Centre / Display Display: Self test function for the EB+ Info Centre display. The display will automatically scroll down. Press any key to exit the display test. 2021 Innovative Vehicle Solutions...

  • Page 66: Settings / Eb+ Info Centre / Exit

    EB+ Info Centre Operator's guide Settings / EB+ Info Centre / Exit Exit: Return to the settings menu. Use the buttons to highlight the exit option. Use the button to return back to the settings menu. Innovative Vehicle Solutions 2021...

  • Page 67: Settings / Tpms Id

    Operator's guide EB+ Info Centre Settings / TPMS ID TPMS ID: Displays a complete list of configured wheels and sensor ID's and allows the operator to swap over wheel sensors. Use the button to show the configured sensors. Use the buttons to show the configured sensors.
  • Page 68 EB+ Info Centre Operator's guide Using the EB+ Info Centre to swap TPMS wheel unit sensors Use the buttons to highlight the first sensor to swap. Use the button to select the highlighted sensor. An arrow indicates that the sensor has been selected.

  • Page 69: Settings / Led Settings

    As default all of the flash options will be selected. LED flash B+: Used to configure the action of the service LED when the EB+ Info Centre is powered by the EBS. LED flash batt: Used to configure the action of the Service LED when the EB+ Info Centre is battery powered.

  • Page 70: Settings / Led Settings / Led Flash B

    LED when the EB+ Info Centre is powered by the EBS. The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock" on page 58). Use the buttons to highlight the action from the list.

  • Page 71: Settings / Led Settings / Led Flash Battery

    LED when the EB+ Info Centre is battery powered. The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock" on page 58). Use the buttons to highlight the action from the list.

  • Page 72: Settings / Led Settings / Tilt Angle Threshold

    This is the angle which is used to trigger (i.e. if selected) the service LED. Note: The default angle is 7° The PIN will need to be entered before commencing (see "Settings / EB+ Info Centre / Unlock" on page 58). Use the buttons to set the required tilt angle threshold.

  • Page 73: Battery

    (i.e. running low), this will have to be acknowledged before proceeding to the main menu options. Note: None of the EB+ Info Centre data will be lost if the battery voltage is low as it is stored in non-volatile memory.

  • Page 74: Eu Batteries Directive 2006 / 66 / Ec

    Operator's guide EU batteries directive 2006 / 66 / EC Haldex Brake Products Ltd has identified the need to register, as a small producer of batteries, under the batteries directive. The batteries directive 2006 / 66 / EC applies across the EU, but the exact requirements differ slightly in each country.

  • Page 75: Battery Removal

    Remove the screws using a Torx T20 driver. Pull gently to remove the cover Locate the battery connector (highlighted in yellow) Carefully remove the connector from the EB+ Info Centre Dispose of the battery in accordance with the Batteries Directive 2006/66EC 2021...

  • Page 76: Alternative Pin

    EB+ Info Centre Operator's guide Alternative PIN There is an alternative PIN that can be used in the event of the operator forgetting the current resetted PIN which uses numbers taken from the trailers VIN (vehicle indentification number). Note: This is only valid if the VIN digits 14 to 17 are numbers.

  • Page 77: General

    Do not use harsh chemicals, cleaning solvents, or strong detergents to clean the Info Centre. EB+ Info Centre ADR version The ADR version of the EB+ Info Centre has no battery fitted and therefore cannot operate in the battery mode. Other functions which relate to the battery, (e.g.
  • Page 78 Tel.: +1 816 891 2470 Fax: +1 816 891 9447 E-Mail: info.us@haldex.com ©2020, Haldex AB. This material may contain Haldex trademarks and third party trademarks, trade names, corporate logos, graphics and emblems which are the property of their respective companies. The...
