Operator's Guide

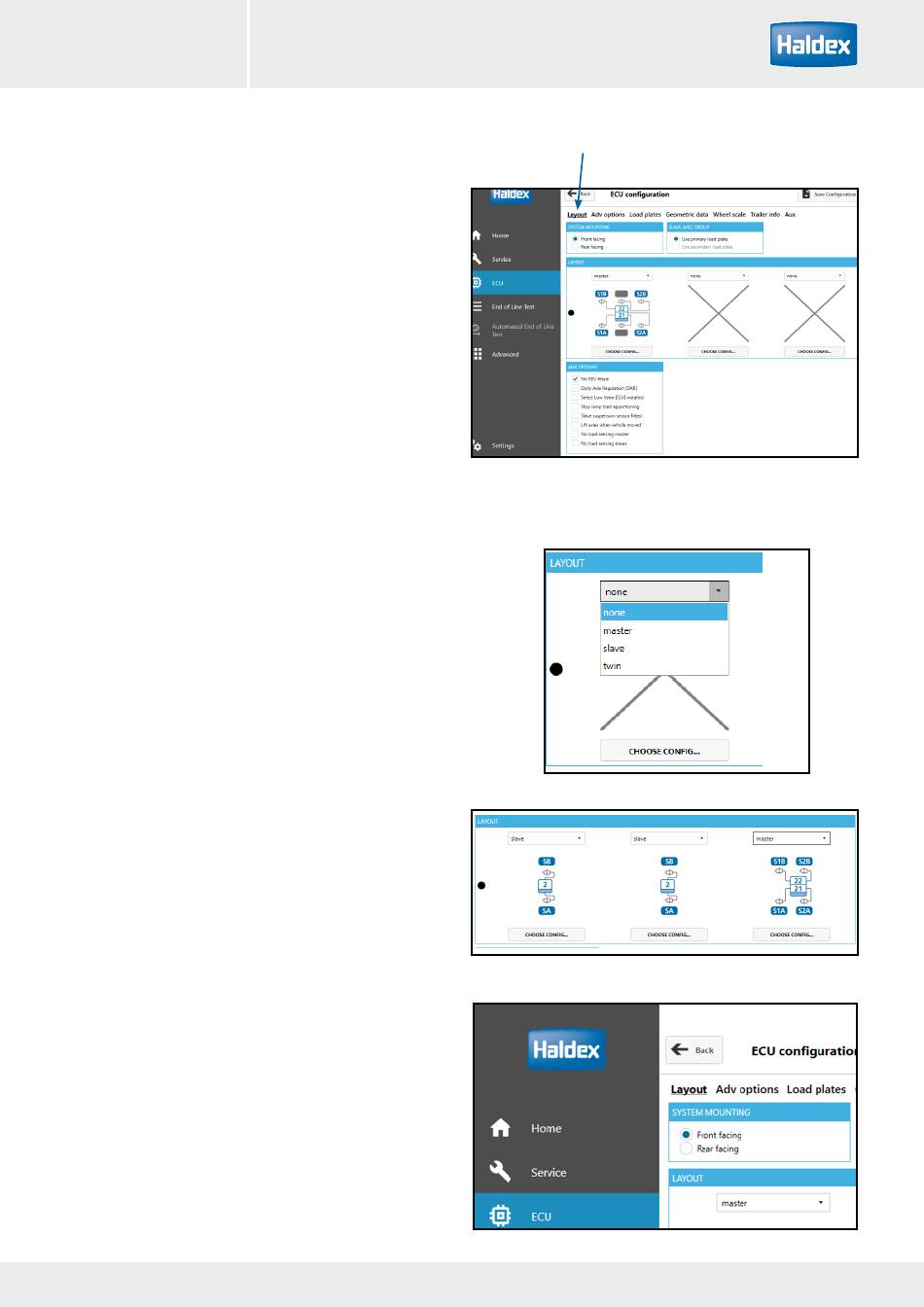

ECU Layout
Click on 'ECU' button then choose 'Layout' tab:
Note: Only the layouts as defined in the EB+ 4.0
installation guide are supported. Please check with
Haldex (before trailer configuration) if any other layout
is required – because this may not be supported.
Choose ECU type – Master / Slave / Twin – to be
configured from layout drop-down:
Note: Users should try to mimic the physical layout of
the ECUs / Axles when defining the logical layout. For
example, if a 8S4M system on a 4-axle trailer is required
with slaves on axle 1 and 2 and the master on axle 3/4
then the logical layout should look like this:
Note: all Master / Slave / Twin layouts are shown as
front facing – if rear facing configuration is needed
choose most relevant front facing layout then invert
with System Mounting radio buttons.
See orientation examples below:
2022
DIAG++ DIAG++
Innovative Vehicle Solutions
Layout tab
