Haldex DIAG++ Operator's Manual page 34

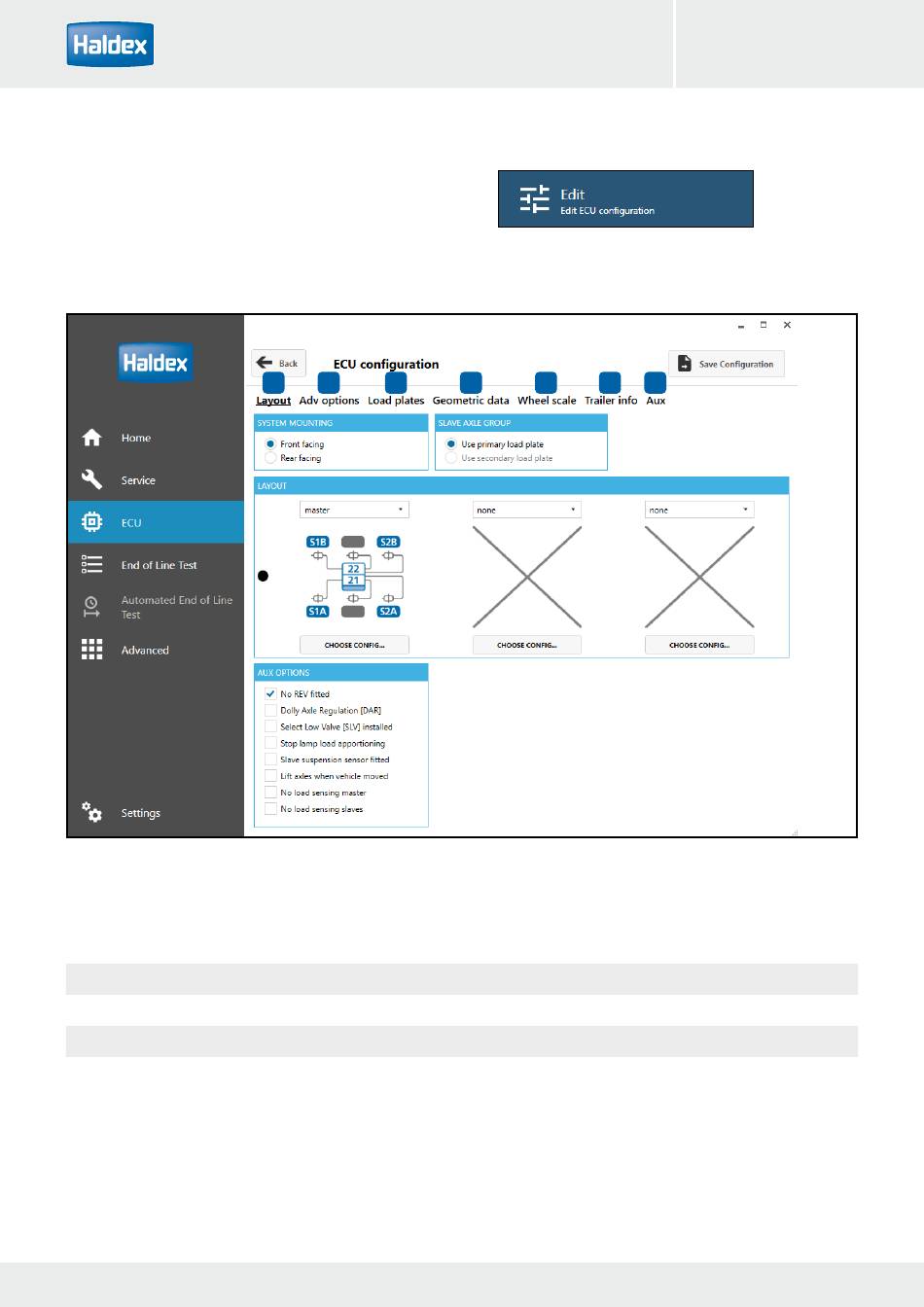

Edit ECU configuration
Click on the 'Edit' button to edit the ECU
configuration.
Edit ECU setup menu
01 Layout.
02 Advanced options.
03 Load plate.
04 Geometric data.
Note: The following defaults are set as shown below:
› Auxiliaries - not used (unused).
Wheel scaling - 306 rev/km, 520 Rdyn (mm)
›
and 100 no. of teeth exciter.
Lamp sequence - on / off.
›
34
1 2 3
Innovative Vehicle Solutions
DIAG++
4 5 6
05 Wheel scale.
06 Trailer information.
07 Auxiliary information
Operator's Guide
7
2022
