Electric brake demand (EBD)
Electric brake demand is an internal feature that allows
application of the brakes under certain conditions by
electrical inputs. No ISO CAN or pneumatic demand
required. This feature is very flexible and can be used
for a lot of applications.

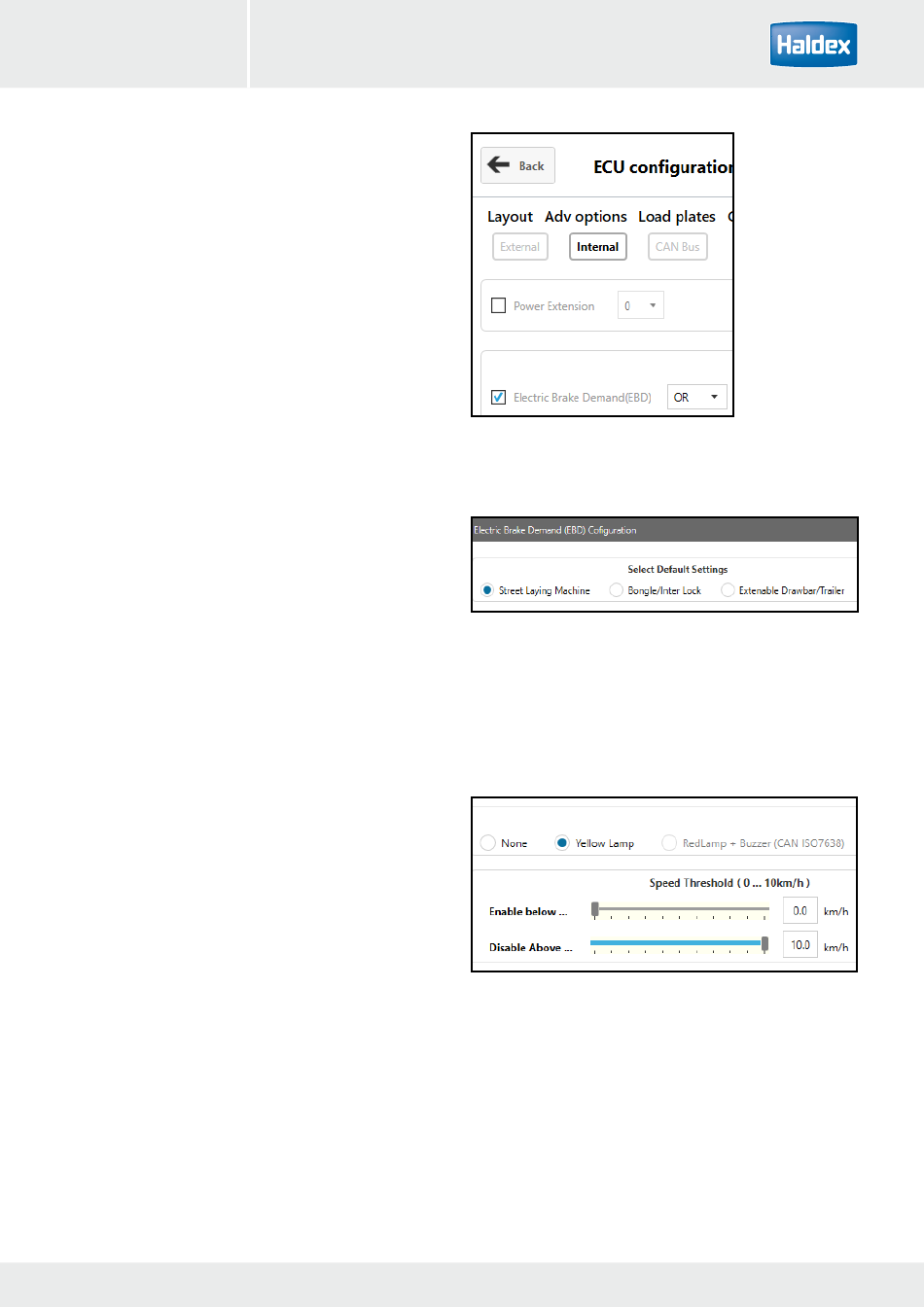

To set the parameters click on button marked
'internal'
The following screen will appear.
Click on box 'electric brake demand' to select
installation.
Select default settings
Load the default settings for these three known
applications. Modifications are allowed, but then it is
no longer a DIAG++ default setup.
Street laying machine
›
Bogie / inter lock
›
Extendable drawbar / trailer
›
Cab warning Lamp (ECE R-13)
Driver can be informed by ABS warning lamp if EBD
active.
› None
Yellow lamp
›
Red lamp + buzzer (CAN ISO 7638) (Only on bogie/
›
inter lock option)
Speed threshold (0....10 km/h)
›
Enable below - below this speed, it's possible to
switch EBD feature 'on'.
Disable above - above this speed, EBD will be
switched 'off' automatically.
