DIAG++ Operator's Guide

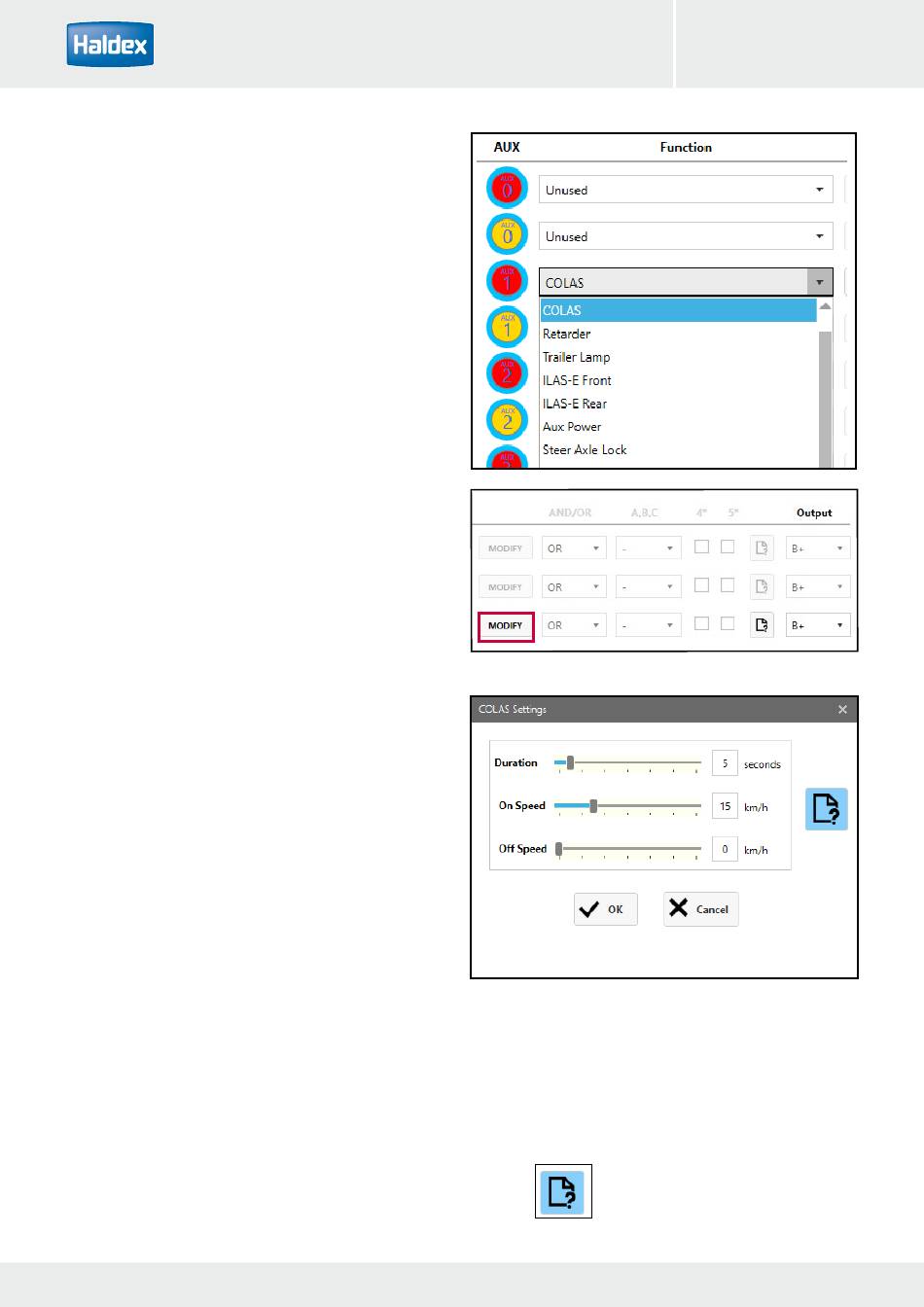

COLAS (AUX 0,1,2,3 – AUX 1 configuration
shown)
Highlight option and click to select it. The required
default parameters for that option are automatically
set.
To view and set the parameters click on the 'modify'
button.
Modify
COLAS (AUX 0,1,2, 3) example
Duration:
Time COLAS solenoid is energised (default 5s)
ON speed:
The output to the COLAS will be switched 'on' (de-
fault 15 kph)
OFF speed:
The output will be switched 'off' either when the
vehicle decelerates below the 'off' speed or when 'du-
ration' has been exceeded, whichever happens first
(default 0 kph)
Note: By setting the 'duration' to 0s this now becomes
a speed signal and an 'on and off' speed has to be set.
Depending on the active window, further information
can be obtained by clicking the 'Help' button where
available.
