Operator's Guide

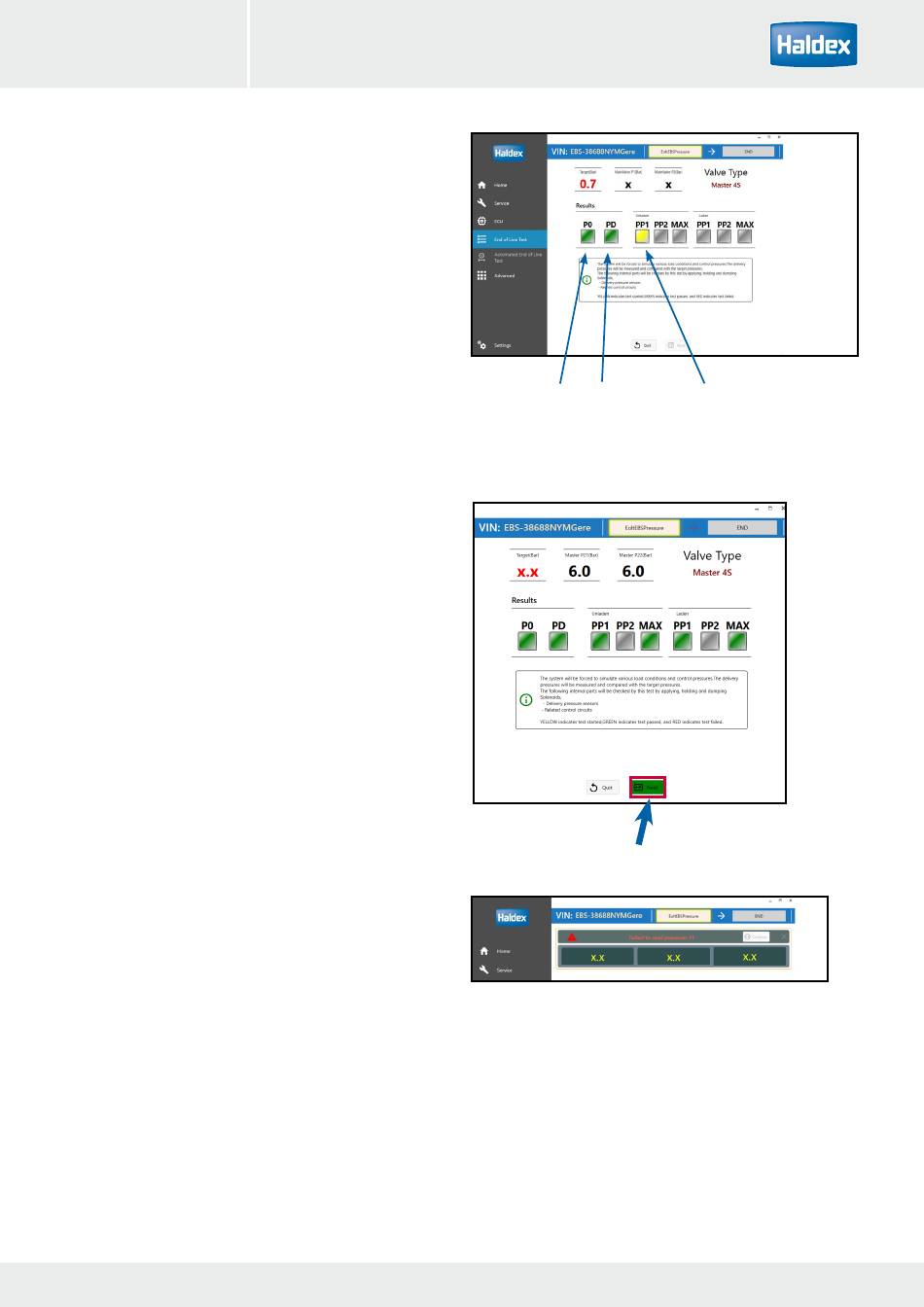

EBS Pressure function tests
The system will be forced to simulate various load
conditions and control pressures. The delivery pressures
will be measured and compared with the target
pressures.
Result section:
Yellow indicates test started.
Green indicates test passed.
Red indicates test failed.
Note: The example shows the screen as for a 2M side
by side installation.
For 3M two screens appear '3M Master 'and '3M
Slave0'.
For 4M three screens appear in sequence '4M Master'
and '4M Slave0' and '4M Slave1'
Next icon only becomes active when test has
completed.
Note: Before this test a warning screen may appear.
Make sure that there is the required air pressure in the
reservoir to carry out the test. Failure results may occur
on the output values (P3) if the value measured (0.3 bar
min.) is below the target value.
2022
DIAG++ DIAG++
Innovative Vehicle Solutions
Test passed Test in progress
(green indication) (yellow indication)
