Operator's Guide

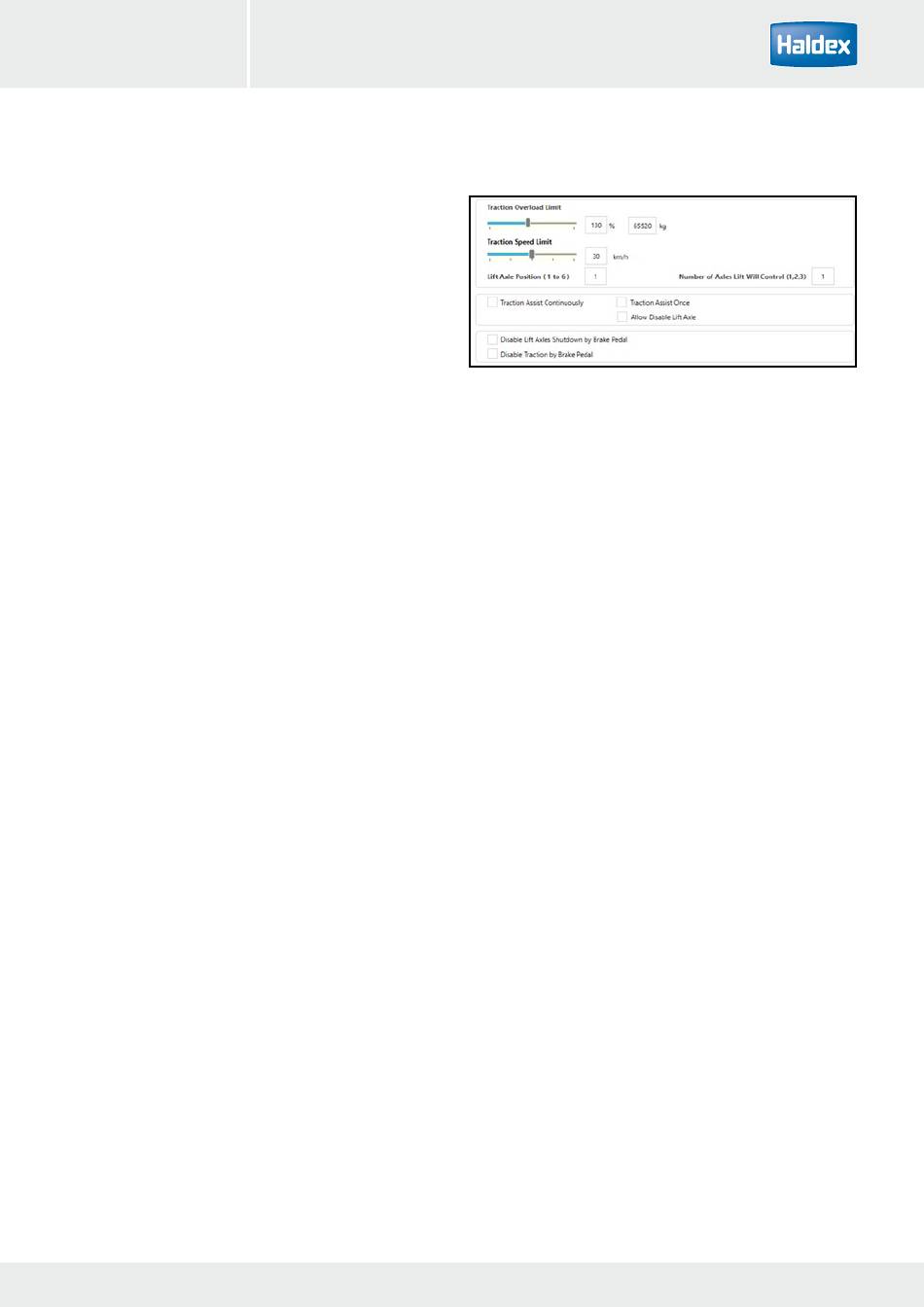

Extra Lift Axle / Traction Help Controls:
Traction Overload Limit:
The Traction Help axle will drop once the suspension
reaches this value (default 130%), based on % of laden
setting. An information icon is displayed above 130%
to ask the user to check the design weights for the
remaining axle(s) as the legal limit is 130% of design
weight.
Traction Speed Limit:
The Traction Help axle will drop once the vehicle speed
increases above the value (default 30km/h). A warning
icon is displayed above 30km/h to indicate that this is
above the legal limit.
Two counts are provided to optionally provide:
'Lift Axle Position'
›
'Number of Axles Lift will Control' for any Traction
›
help action.
