Custom Super AUX input screen
Inputs A, B and C can now be configured using the
drop down boxes.
Inputs A, B and C can also be renamed to their
intended activation input (e.g. door).
The required input combination can be achieved by
using the drop down boxes for:
1
The input signal (e.g. door)
2
The activation level (i.e. high or low)
3
The action (i.e OR & AND).
A combined summary input statement is shown in the
window at the bottom of the screen.
Speed qualifier
A speed signal can also be added to the final 'input
statement' by using the 'speed qualifier' drop down
box options.
Always No speed signal referenced
<= Less than and equal to selected km / h
> Greater than selected km / h
Click on the 'Cancel' button to cancel with no
modifications.
Click on the 'OK' button to exit and keep the
modifications.
2022
DIAG++ DIAG++
1
2
Innovative Vehicle Solutions

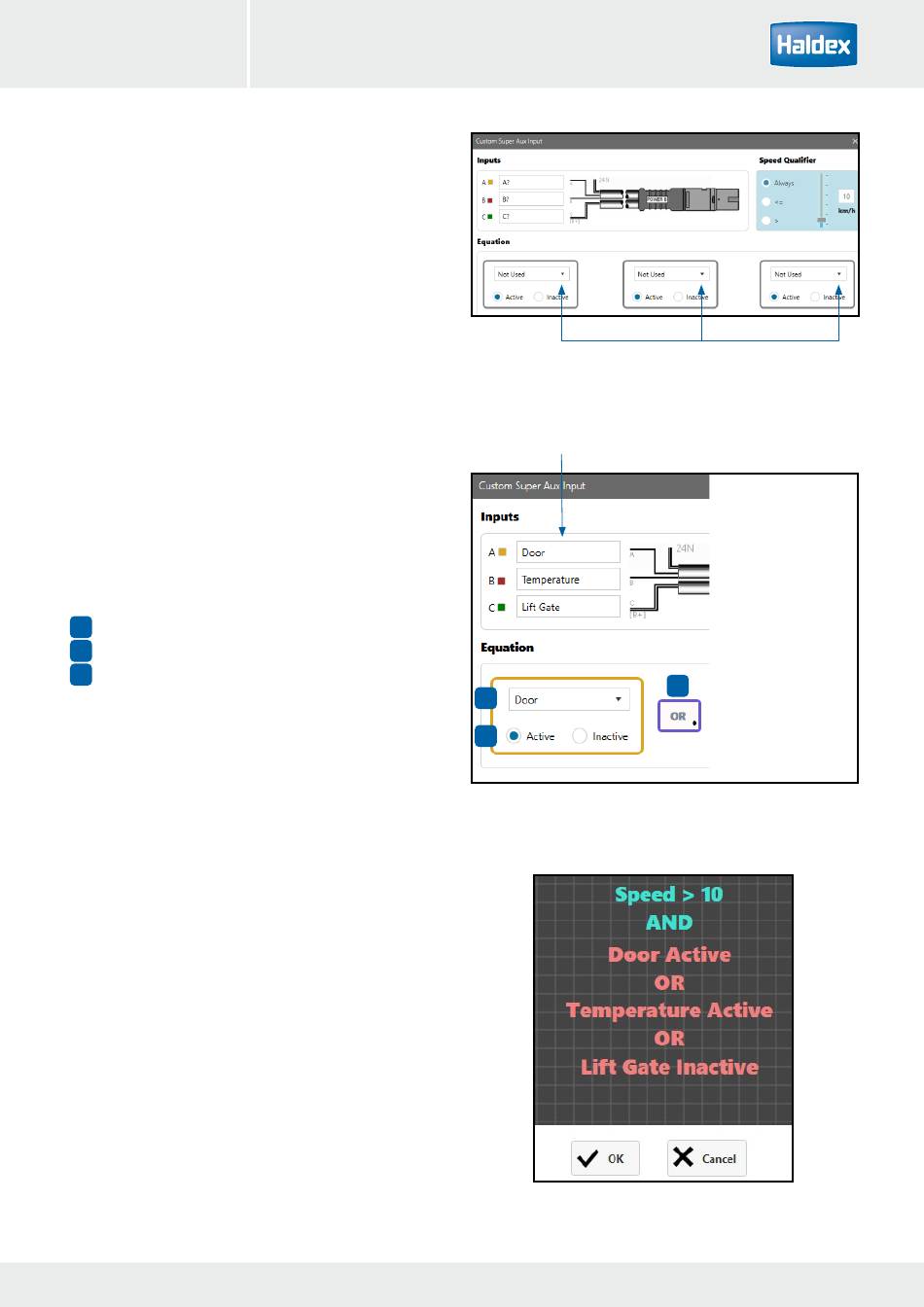

Drop down boxes used to configure the input signals.
door
3
Summary statement
