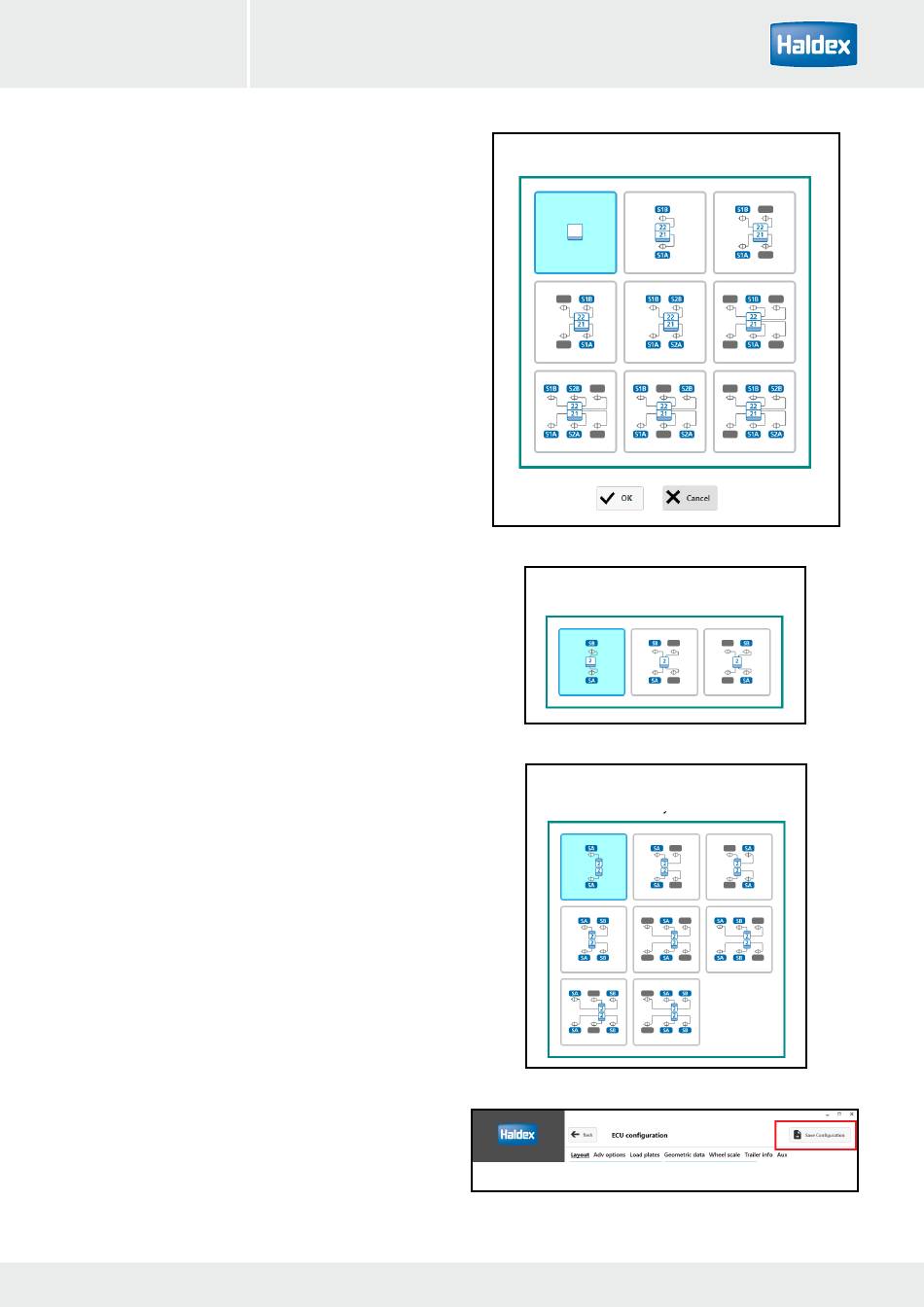

Choose correct Master Layout :
Note: a Master ECU is always needed and can
optionally be linked to either additional slave(s) or a
Twin.
If configured, choose correct Slave(s) Layout:
Note: if Slave(s) selected then any additional Twin
selection is invalid.
If configured, choose correct Twin Layout:
Note: if Twin selected then any additional Slave(s)
selection is invalid
Click on the 'Save configuration' button to save the
updated settings.
2022
DIAG++ DIAG++
Innovative Vehicle Solutions
Master layout selections
Slave layout selections
Twin Slave layout selections
