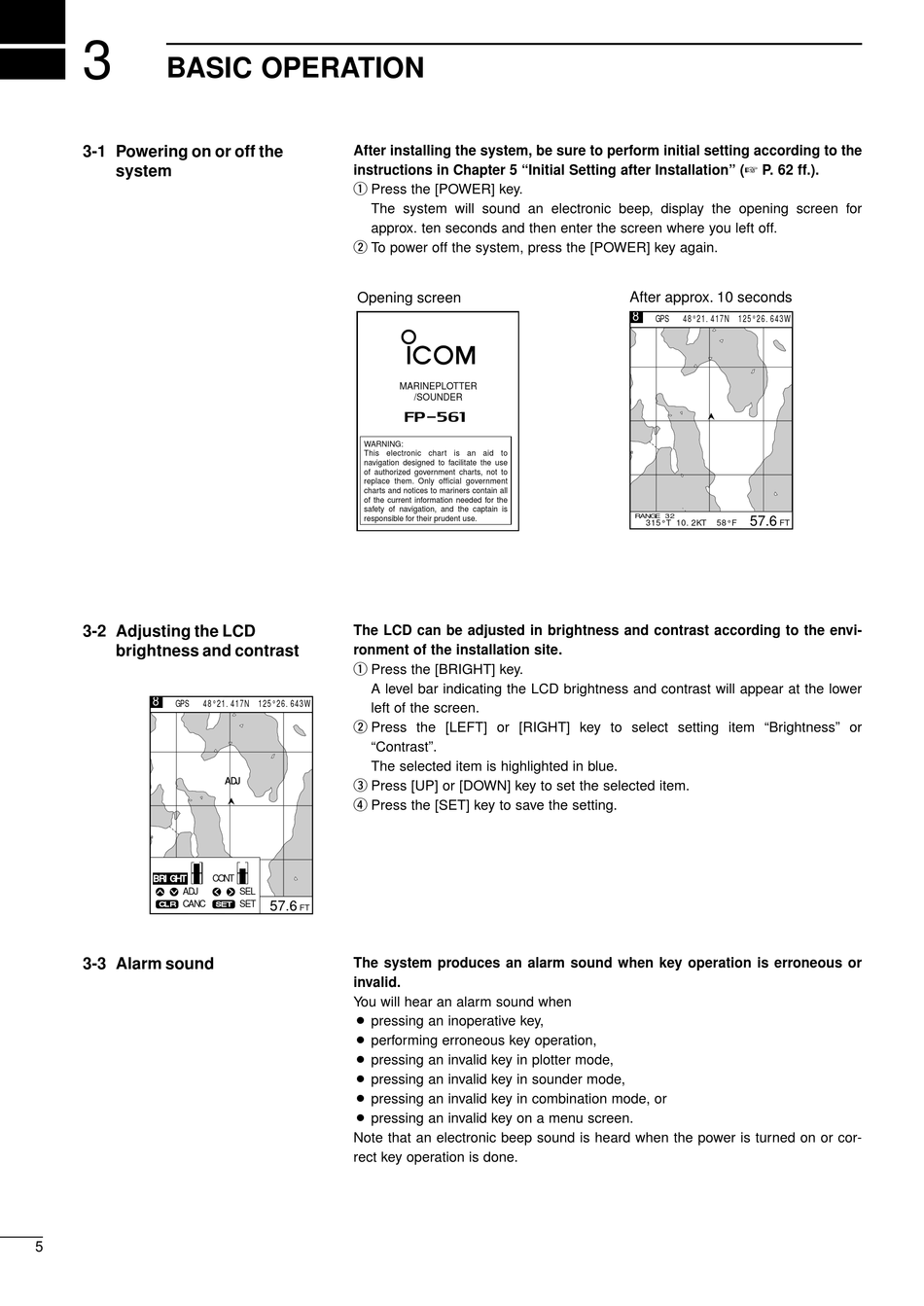

BASIC OPERATION

3-1 Powering on or off the
system
3-2 Adjusting the LCD
brightness and contrast
8
GPS 48°21.417N
BRIGHT
ADJ
CANC
CLR

3-3 Alarm sound

5
After installing the system, be sure to perform initial setting according to the
instructions in Chapter 5 "Initial Setting after Installation" (
q Press the [POWER] key.
The system will sound an electronic beep, display the opening screen for
approx. ten seconds and then enter the screen where you left off.
w To power off the system, press the [POWER] key again.
Opening screen
WARNING:
This electronic chart is an aid to
navigation designed to facilitate the use
of authorized government charts, not to
replace them. Only official government
charts and notices to mariners contain all
of the current information needed for the
safety of navigation, and the captain is
responsible for their prudent use.
The LCD can be adjusted in brightness and contrast according to the envi-
ronment of the installation site.
q Press the [BRIGHT] key.
A level bar indicating the LCD brightness and contrast will appear at the lower
125°26.643W
left of the screen.
w Press the [LEFT] or [RIGHT] key to select setting item "Brightness" or
"Contrast".
The selected item is highlighted in blue.
ADJ ADJ
e Press [UP] or [DOWN] key to set the selected item.
r Press the [SET] key to save the setting.
CONT
SEL
SET
SET
57.6
FT
The system produces an alarm sound when key operation is erroneous or
invalid.
You will hear an alarm sound when
¡ pressing an inoperative key,
¡ performing erroneous key operation,
¡ pressing an invalid key in plotter mode,
¡ pressing an invalid key in sounder mode,
¡ pressing an invalid key in combination mode, or
¡ pressing an invalid key on a menu screen.
Note that an electronic beep sound is heard when the power is turned on or cor-
rect key operation is done.
