6

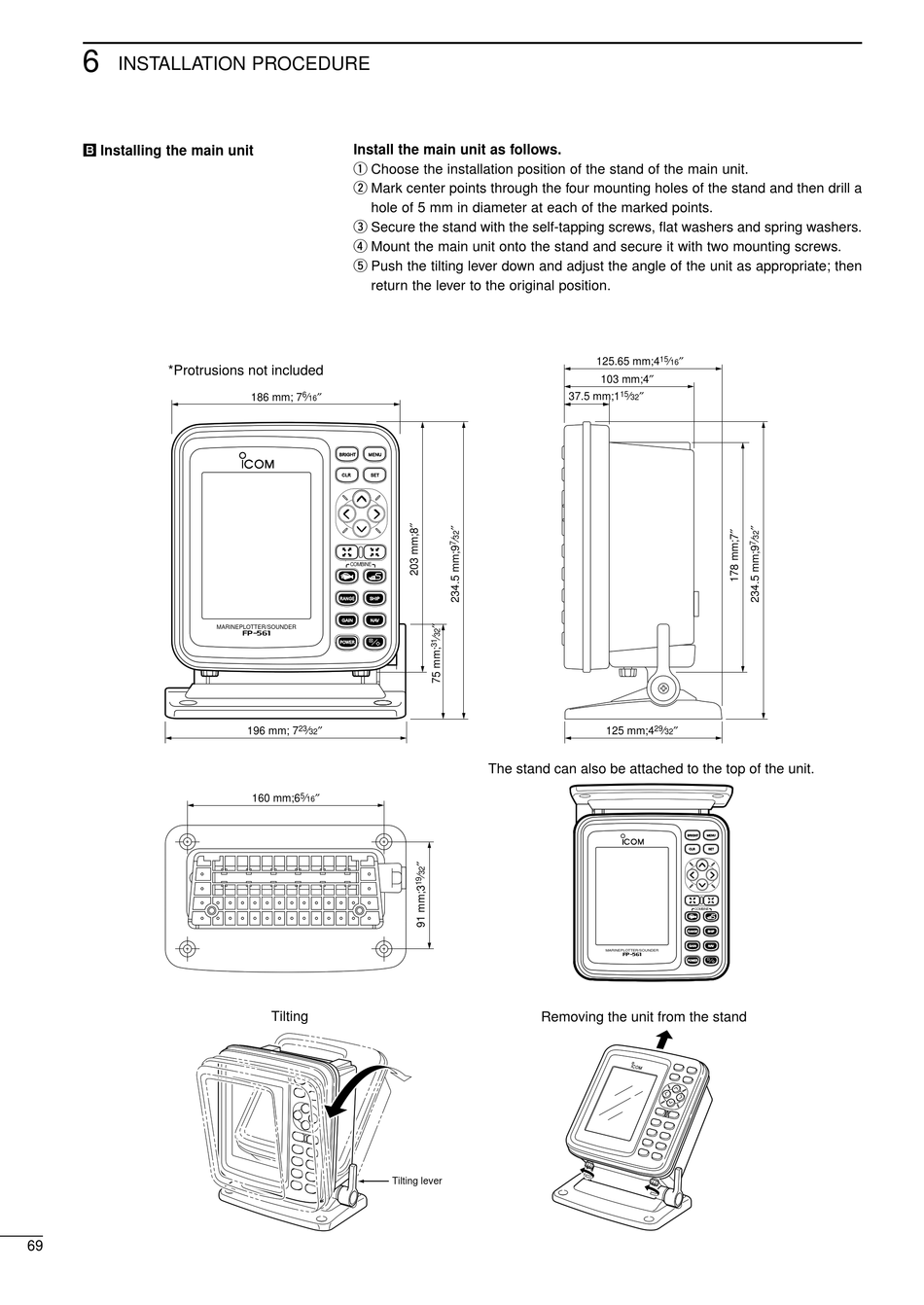

INSTALLATION PROCEDURE
ı Installing the main unit
*Protrusions not included
69
Install the main unit as follows.
q Choose the installation position of the stand of the main unit.
w Mark center points through the four mounting holes of the stand and then drill a
hole of 5 mm in diameter at each of the marked points.
e Secure the stand with the self-tapping screws, flat washers and spring washers.
r Mount the main unit onto the stand and secure it with two mounting screws.
t Push the tilting lever down and adjust the angle of the unit as appropriate; then
return the lever to the original position.
6
186 mm; 7 ⁄
16
COMBINE
MARINEPLOTTER/SOUNDER
fp-561
23
196 mm; 7 ⁄
32
5
160 mm;6 ⁄
16
Tilting
The stand can also be attached to the top of the unit.
Removing the unit from the stand
Tilting lever
15
125.65 mm;4 ⁄
16
103 mm;4
15
37.5 mm;1 ⁄
32
29
125 mm;4 ⁄
32
COMBINE
MARINEPLOTTER/SOUNDER
fp-561
