Data Color Setting; Setting Colors Of Data On Screen; Å Specifying The Color Of Land; Specifying The Color Of Sea - Icom FP-561 Instruction Manual

8

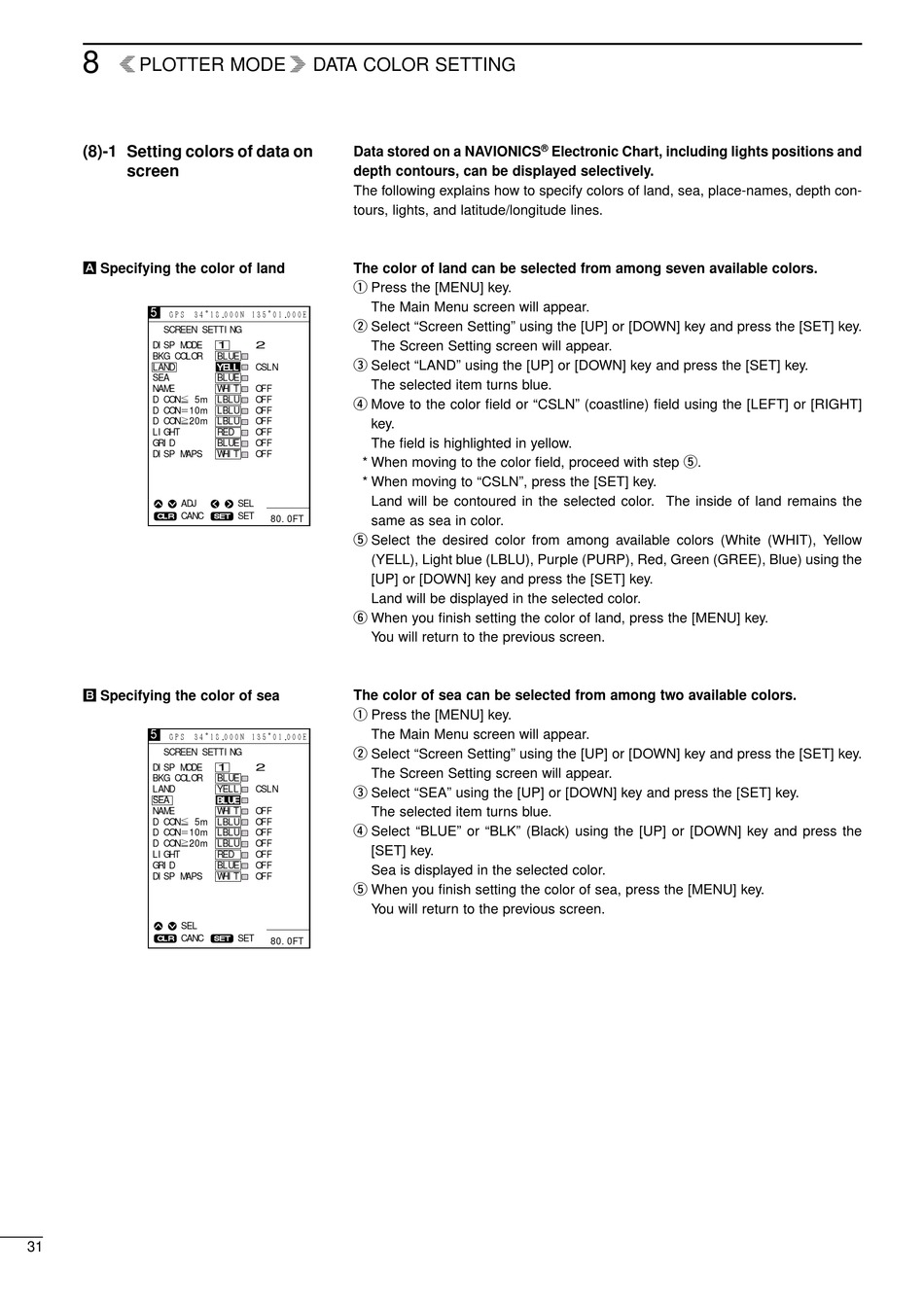

r PLOTTER MODE q DATA COLOR SETTING
(8)-1 Setting colors of data on
screen
Å Specifying the color of land
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
SCREEN SETTING
DISP MODE
BKG COLOR
LAND
SEA
NAME
D CON≦ 5m
D CON＝10m
D CON≧20m
LIGHT
GRID
DISP MAPS
ADJ
CANC
CLR
ı Specifying the color of sea
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
SCREEN SETTING
DISP MODE
BKG COLOR
LAND
SEA
NAME
D CON≦ 5m
D CON＝10m
D CON≧20m
LIGHT
GRID
DISP MAPS
SEL
CANC
CLR
31
Data stored on a NAVIONICS
depth contours, can be displayed selectively.
The following explains how to specify colors of land, sea, place-names, depth con-
tours, lights, and latitude/longitude lines.
The color of land can be selected from among seven available colors.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Screen Setting" using the [UP] or [DOWN] key and press the [SET] key.
1 2
The Screen Setting screen will appear.
BLUE
e Select "LAND" using the [UP] or [DOWN] key and press the [SET] key.
YELL CSLN
BLUE
The selected item turns blue.
WHIT OFF
LBLU OFF
r Move to the color field or "CSLN" (coastline) field using the [LEFT] or [RIGHT]
LBLU OFF
LBLU OFF
key.
RED OFF
BLUE OFF The field is highlighted in yellow.
WHIT OFF
* When moving to the color field, proceed with step t.
* When moving to "CSLN", press the [SET] key.
Land will be contoured in the selected color. The inside of land remains the
SEL
SET
SET
80.0FT
same as sea in color.
t Select the desired color from among available colors (White (WHIT), Yellow
(YELL), Light blue (LBLU), Purple (PURP), Red, Green (GREE), Blue) using the
[UP] or [DOWN] key and press the [SET] key.
Land will be displayed in the selected color.
y When you finish setting the color of land, press the [MENU] key.
You will return to the previous screen.
The color of sea can be selected from among two available colors.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Screen Setting" using the [UP] or [DOWN] key and press the [SET] key.
1 2
The Screen Setting screen will appear.
BLUE
YELL CSLN
e Select "SEA" using the [UP] or [DOWN] key and press the [SET] key.
BLUE
WHIT OFF
The selected item turns blue.
LBLU OFF
r Select "BLUE" or "BLK" (Black) using the [UP] or [DOWN] key and press the
LBLU OFF
LBLU OFF
[SET] key.
RED OFF
BLUE OFF
Sea is displayed in the selected color.
WHIT OFF
t When you finish setting the color of sea, press the [MENU] key.
You will return to the previous screen.
SET
SET
80.0FT
®
Electronic Chart, including lights positions and
