8

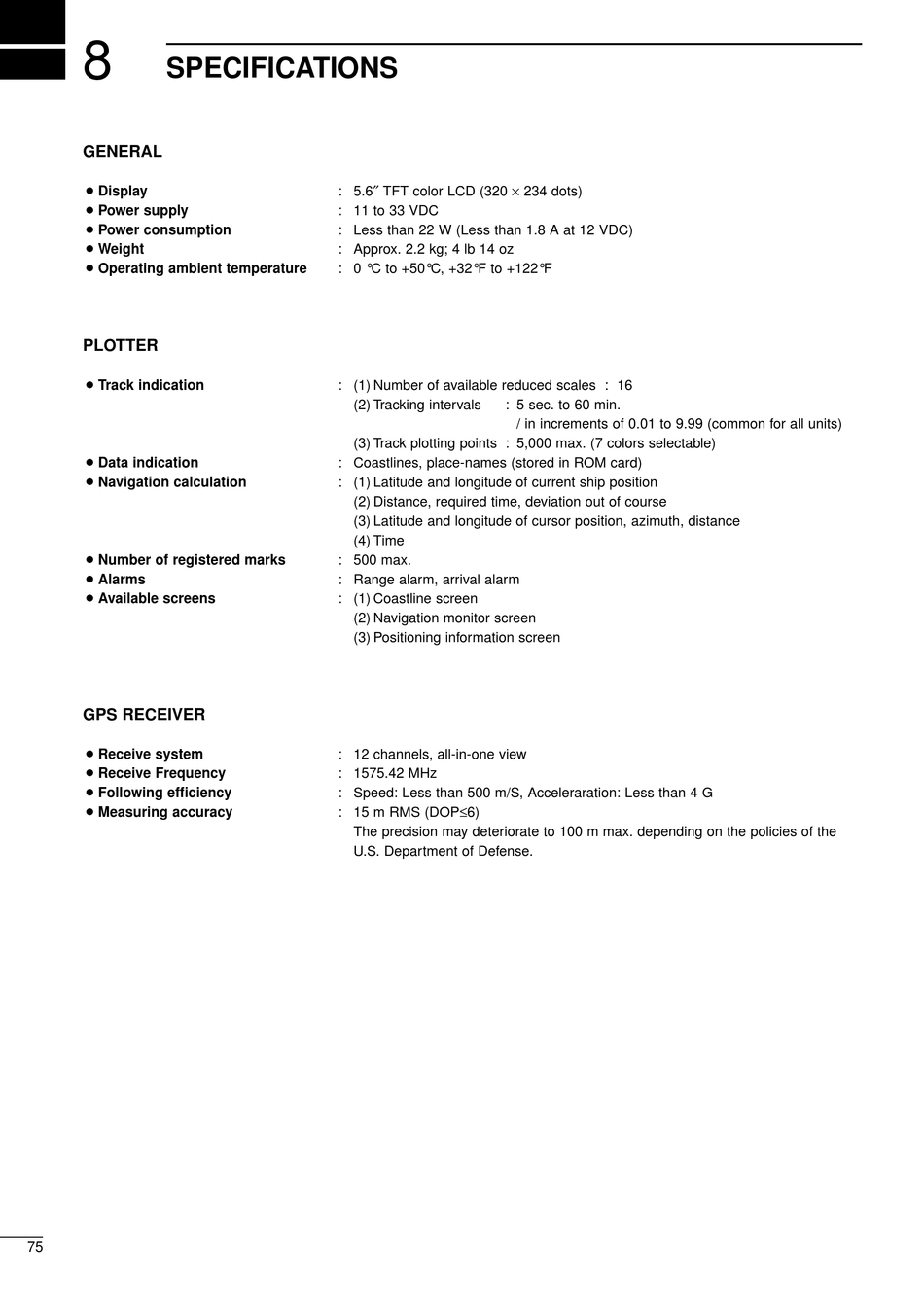

SPECIFICATIONS

GENERAL
¡ Display
¡ Power supply
¡ Power consumption
¡ Weight
¡ Operating ambient temperature
PLOTTER
¡ Track indication
¡ Data indication
¡ Navigation calculation
¡ Number of registered marks
¡ Alarms
¡ Available screens
GPS RECEIVER
¡ Receive system
¡ Receive Frequency
¡ Following efficiency
¡ Measuring accuracy
75
: 5.6 TFT color LCD (320
: 11 to 33 VDC
: Less than 22 W (Less than 1.8 A at 12 VDC)
: Approx. 2.2 kg; 4 lb 14 oz
: 0 °C to +50°C, +32°F to +122°F
: (1) Number of available reduced scales : 16
(2) Tracking intervals : 5 sec. to 60 min.
(3) Track plotting points : 5,000 max. (7 colors selectable)
: Coastlines, place-names (stored in ROM card)
: (1) Latitude and longitude of current ship position
(2) Distance, required time, deviation out of course
(3) Latitude and longitude of cursor position, azimuth, distance
(4) Time
: 500 max.
: Range alarm, arrival alarm
: (1) Coastline screen
(2) Navigation monitor screen
(3) Positioning information screen
: 12 channels, all-in-one view
: 1575.42 MHz
: Speed: Less than 500 m/S, Acceleraration: Less than 4 G
: 15 m RMS (DOP 6)
The precision may deteriorate to 100 m max. depending on the policies of the
U.S. Department of Defense.
234 dots)
/ in increments of 0.01 to 9.99 (common for all units)
