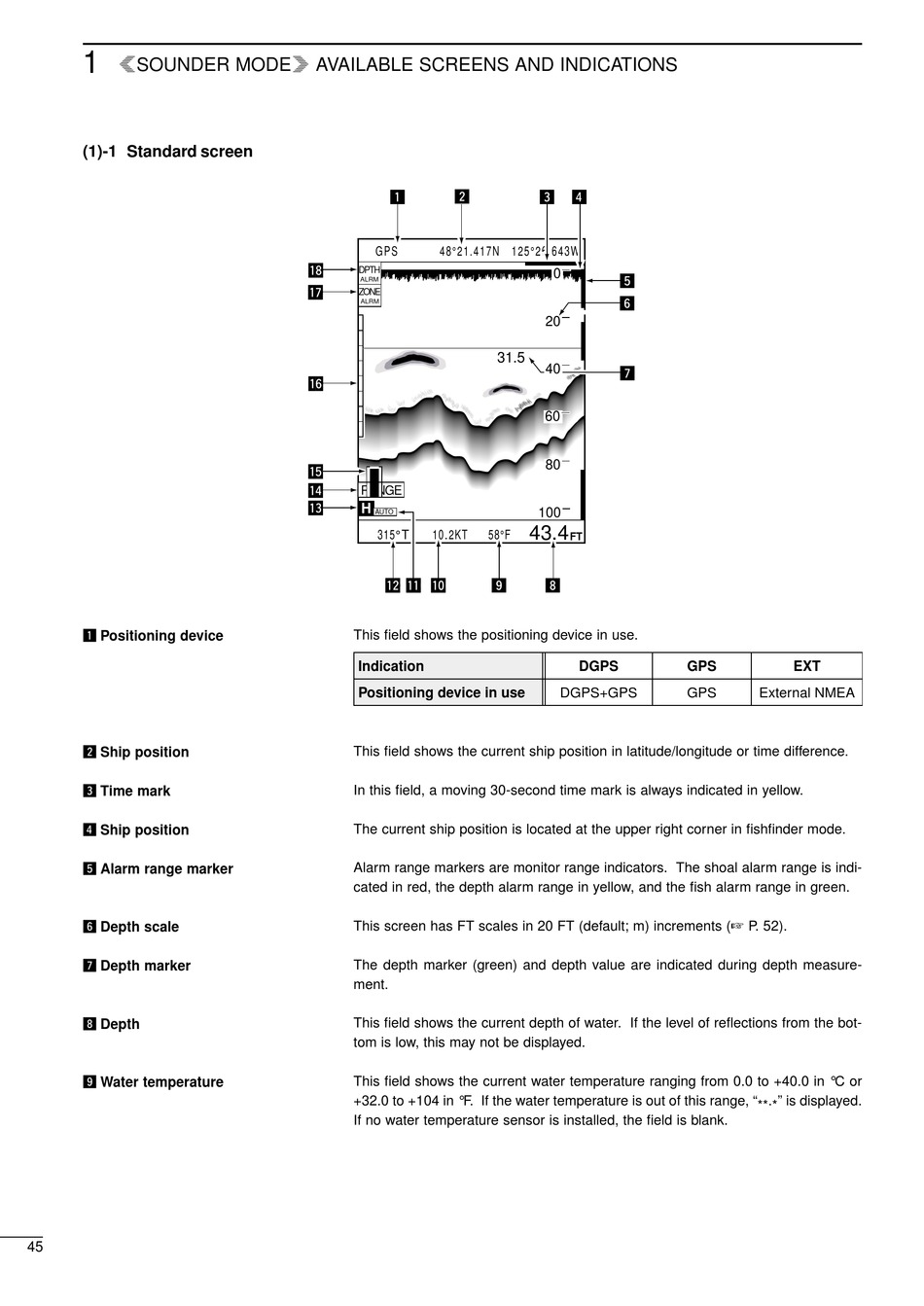

Standard Screen - Icom FP-561 Instruction Manual

1
rSOUNDER MODEq AVAILABLE SCREENS AND INDICATIONS

(1)-1 Standard screen

z Positioning device
x Ship position
c Time mark
v Ship position
b Alarm range marker
n Depth scale
m Depth marker
, Depth
. Water temperature
45
z x
GPS 48 21.417N 125 26.643W
⁄8
DPTH
ALRM
⁄7
ZONE
ALRM
⁄6
⁄5
⁄4
レ ン ジ RANGE
⁄3
H
AUTO
315 T 10.2KT
⁄2 ⁄1 ⁄0
This field shows the positioning device in use.
Indication
Positioning device in use
This field shows the current ship position in latitude/longitude or time difference.
In this field, a moving 30-second time mark is always indicated in yellow.
The current ship position is located at the upper right corner in fishfinder mode.
Alarm range markers are monitor range indicators. The shoal alarm range is indi-
cated in red, the depth alarm range in yellow, and the fish alarm range in green.
This screen has FT scales in 20 FT (default; m) increments (
The depth marker (green) and depth value are indicated during depth measure-
ment.
This field shows the current depth of water. If the level of reflections from the bot-
tom is low, this may not be displayed.
This field shows the current water temperature ranging from 0.0 to +40.0 in °C or
+32.0 to +104 in °F. If the water temperature is out of this range, " ** . * " is displayed.
If no water temperature sensor is installed, the field is blank.
c v
0
b
n
20
31.5
40 m
60
80
100
43.4
58 F
FT
. ,
DGPS
DGPS+GPS
GPS EXT
GPS External NMEA
P. 52).
