Available Screens And Indications; How To Access Screens - Icom FP-561 Instruction Manual

(1)-1 How to access screens

Screen name
Standard screen
GPS 48°21.417N
31.5
H
AUTO
315°T 10.2KT 58°F
Dual screen
GPS 48°21.417N
0
20
40
60
80
L H
100
315°T 10.2KT 58°F
Standard +
Maker zoom-in screen
GPS 48°21.417N
5
4
3 19.5
2
1
0
1
2
3
4
5
H
315°T 10.2KT 58°F

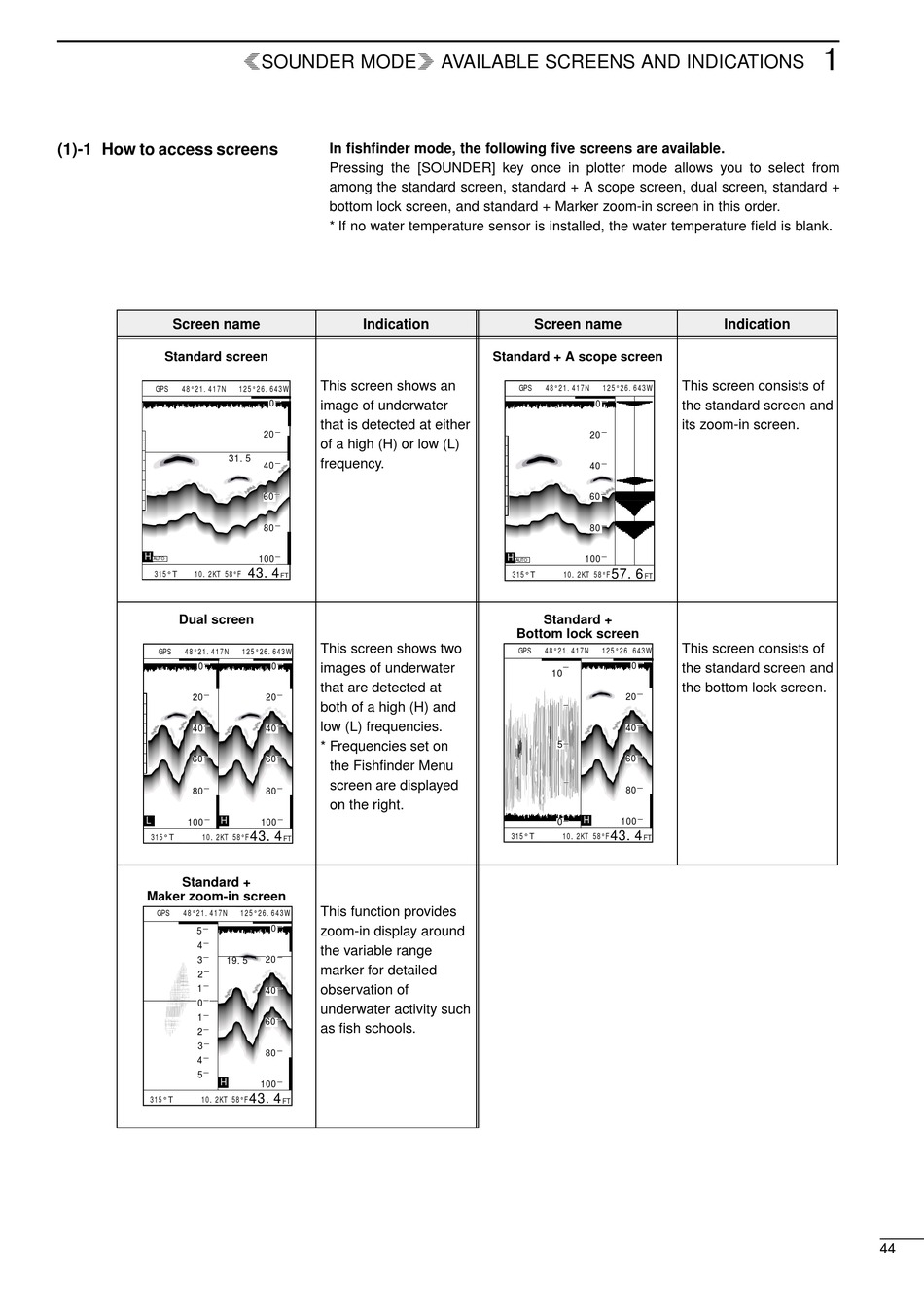

rSOUNDER MODEq AVAILABLE SCREENS AND INDICATIONS
In fishfinder mode, the following five screens are available.
Pressing the [SOUNDER] key once in plotter mode allows you to select from
among the standard screen, standard + A scope screen, dual screen, standard +
bottom lock screen, and standard + Marker zoom-in screen in this order.
* If no water temperature sensor is installed, the water temperature field is blank.
Indication
This screen shows an
125°26.643W
0
image of underwater
that is detected at either
20
of a high (H) or low (L)
frequency.
40
60
80
100
43.4
FT
This screen shows two
125°26.643W
0
images of underwater
that are detected at
20
both of a high (H) and
low (L) frequencies.
40
* Frequencies set on
60
the Fishfinder Menu
screen are displayed
80
on the right.
100
43.4
FT
This function provides
125°26.643W
0
zoom-in display around
the variable range
20
marker for detailed
observation of
40
underwater activity such
60
as fish schools.
80
100
43.4
FT
Screen name
Standard + A scope screen
GPS 48°21.417N 125°26.643W
0
20
40
60
80
H
100
AUTO
57.6
315°T 10.2KT 58°F
FT
Standard +
Bottom lock screen
GPS 48°21.417N 125°26.643W
0
10
20
40
5
60
80
H
0 100
43.4
315°T 10.2KT 58°F
FT
1
Indication
This screen consists of
the standard screen and
its zoom-in screen.
This screen consists of
the standard screen and
the bottom lock screen.
44
