INITIAL SETTING AFTER INSTALLATION
5-3 UNIT
| Setting the units of depth, water
temperature, distance and ship
speed
UNIT
DEPTH
TEMP
DISTANCE
SPEED
SEL
CANC
CLR
5-4 SETTING
'
AUTO GAIN
SETTING
AUTO GAIN
DRAFT ADJ
TEMP ADJ
'
DRAFT ADJ
SETTING
AUTO GAIN
DRAFT ADJ
TEMP ADJ
DATUM
BEARING
COMPASS IND
TIME REF
Draft
Transducer
63

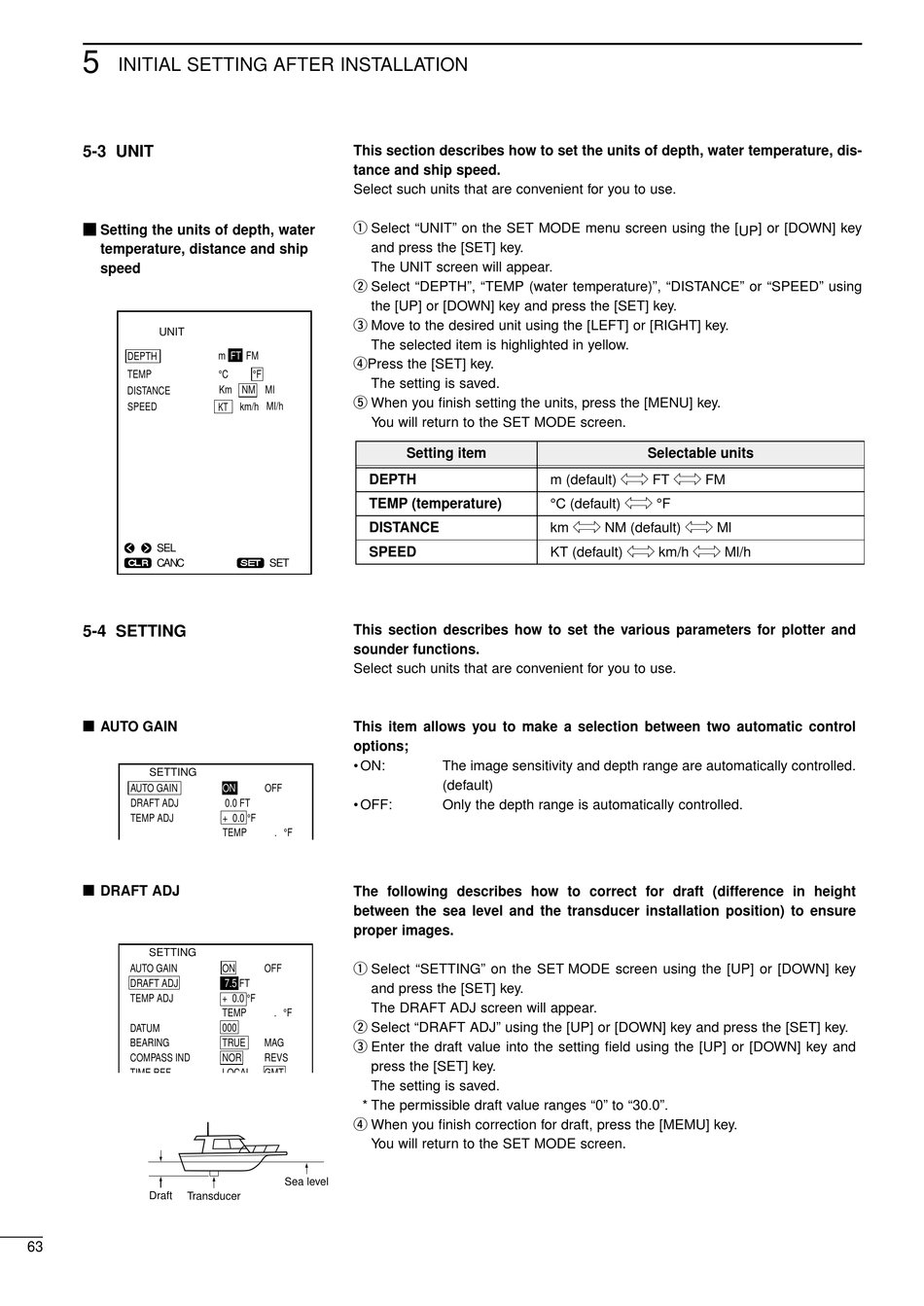

This section describes how to set the units of depth, water temperature, dis-
tance and ship speed.
Select such units that are convenient for you to use.
q Select "UNIT" on the SET MODE menu screen using the [ UP ] or [DOWN] key
and press the [SET] key.
The UNIT screen will appear.
w Select "DEPTH", "TEMP (water temperature)", "DISTANCE" or "SPEED" using
the [UP] or [DOWN] key and press the [SET] key.
e Move to the desired unit using the [LEFT] or [RIGHT] key.
The selected item is highlighted in yellow.
m FT FM
rPress the [SET] key.
C F
The setting is saved.
Km NM MI
t When you finish setting the units, press the [MENU] key.
km/h MI/h
KT
You will return to the SET MODE screen.
DEPTH
TEMP (temperature)
DISTANCE
SPEED
SET
SET
This section describes how to set the various parameters for plotter and
sounder functions.
Select such units that are convenient for you to use.
This item allows you to make a selection between two automatic control
options;
• ON:
ON OFF
0.0 FT • OFF:
+ 0.0 F
TEMP . F
The following describes how to correct for draft (difference in height
between the sea level and the transducer installation position) to ensure
proper images.
q Select "SETTING" on the SET MODE screen using the [UP] or [DOWN] key
ON OFF
7.5 FT
and press the [SET] key.
+ 0.0 F
The DRAFT ADJ screen will appear.
TEMP . F
w Select "DRAFT ADJ" using the [UP] or [DOWN] key and press the [SET] key.
000
TRUE MAG
e Enter the draft value into the setting field using the [UP] or [DOWN] key and
NOR REVS
press the [SET] key.
LOCAL GMT
The setting is saved.
* The permissible draft value ranges "0" to "30.0".
r When you finish correction for draft, press the [MEMU] key.
You will return to the SET MODE screen.
Sea level
Setting item
m (default) {| FT {| FM
C (default) {| F
km {| NM (default) {| Ml
KT (default) {| km/h {| Ml/h
The image sensitivity and depth range are automatically controlled.
(default)
Only the depth range is automatically controlled.
Selectable units
