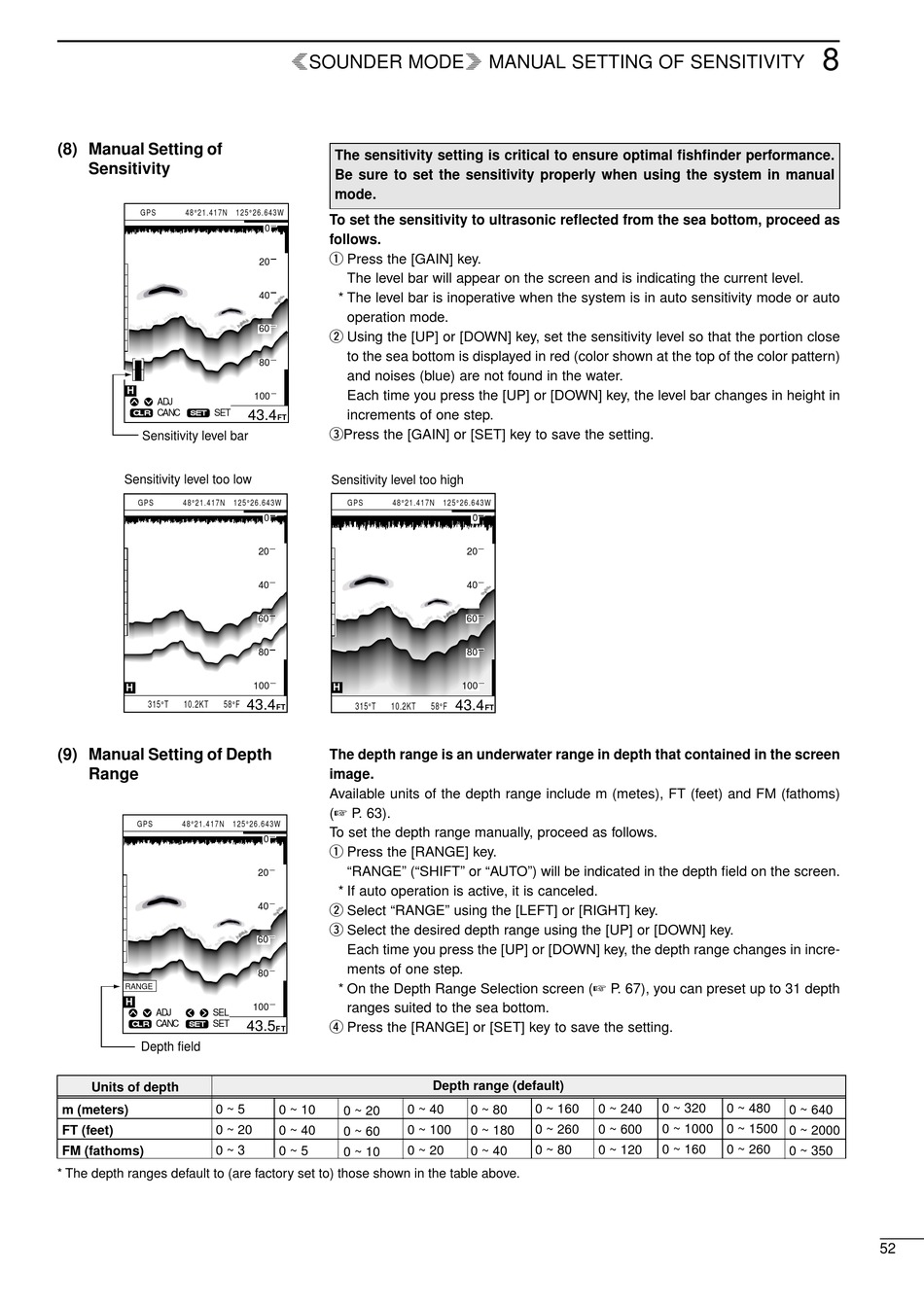

(8) Manual Setting of
Sensitivity
GPS 48 21.417N 125 26.643W
H
ADJ
CANC SET
CLR SET
Sensitivity level bar
Sensitivity level too low
GPS 48 21.417N 125 26.643W
H
315 T 10.2KT 58 F
(9) Manual Setting of Depth
Range
GPS 48 21.417N 125 26.643W
RANGE
H
ADJ SEL
CANC SET
CLR SET
Depth field
Units of depth
0 ~ 5
m (meters)
0 ~ 20
FT (feet)
0 ~ 3
FM (fathoms)
* The depth ranges default to (are factory set to) those shown in the table above.
rSOUNDER MODEq MANUAL SETTING OF SENSITIVITY
The sensitivity setting is critical to ensure optimal fishfinder performance.
Be sure to set the sensitivity properly when using the system in manual
mode.
To set the sensitivity to ultrasonic reflected from the sea bottom, proceed as
0
follows.
q Press the [GAIN] key.
20
The level bar will appear on the screen and is indicating the current level.
40
* The level bar is inoperative when the system is in auto sensitivity mode or auto
operation mode.
60
w Using the [UP] or [DOWN] key, set the sensitivity level so that the portion close
to the sea bottom is displayed in red (color shown at the top of the color pattern)
80
and noises (blue) are not found in the water.
Each time you press the [UP] or [DOWN] key, the level bar changes in height in
100
43.4 increments of one step.
FT
ePress the [GAIN] or [SET] key to save the setting.
Sensitivity level too high
GPS 48 21.417N 125 26.643W
0
20
40
60
80
100
H
43.4
315 T 10.2KT
FT
The depth range is an underwater range in depth that contained in the screen
image.
Available units of the depth range include m (metes), FT (feet) and FM (fathoms)
( P. 63).
To set the depth range manually, proceed as follows.
0
q Press the [RANGE] key.
"RANGE" ("SHIFT" or "AUTO") will be indicated in the depth field on the screen.
20
* If auto operation is active, it is canceled.
40
w Select "RANGE" using the [LEFT] or [RIGHT] key.
e Select the desired depth range using the [UP] or [DOWN] key.
60
Each time you press the [UP] or [DOWN] key, the depth range changes in incre-
ments of one step.
80
* On the Depth Range Selection screen (
ranges suited to the sea bottom.
100
r Press the [RANGE] or [SET] key to save the setting.
43.5
FT
0 ~ 40
0 ~ 10
0 ~ 20
0 ~ 100
0 ~ 40
0 ~ 60
0 ~ 20
0 ~ 5
0 ~ 10
0
20
40
60
80
100
43.4
58 F
FT
Depth range (default)
0 ~ 160 0 ~ 240
0 ~ 80
0 ~ 260 0 ~ 600
0 ~ 180
0 ~ 80 0 ~ 120
0 ~ 40
P. 67), you can preset up to 31 depth
0 ~ 320 0 ~ 480
0 ~ 1000 0 ~ 1500
0 ~ 160 0 ~ 260
8
0 ~ 640
0 ~ 2000
0 ~ 350
