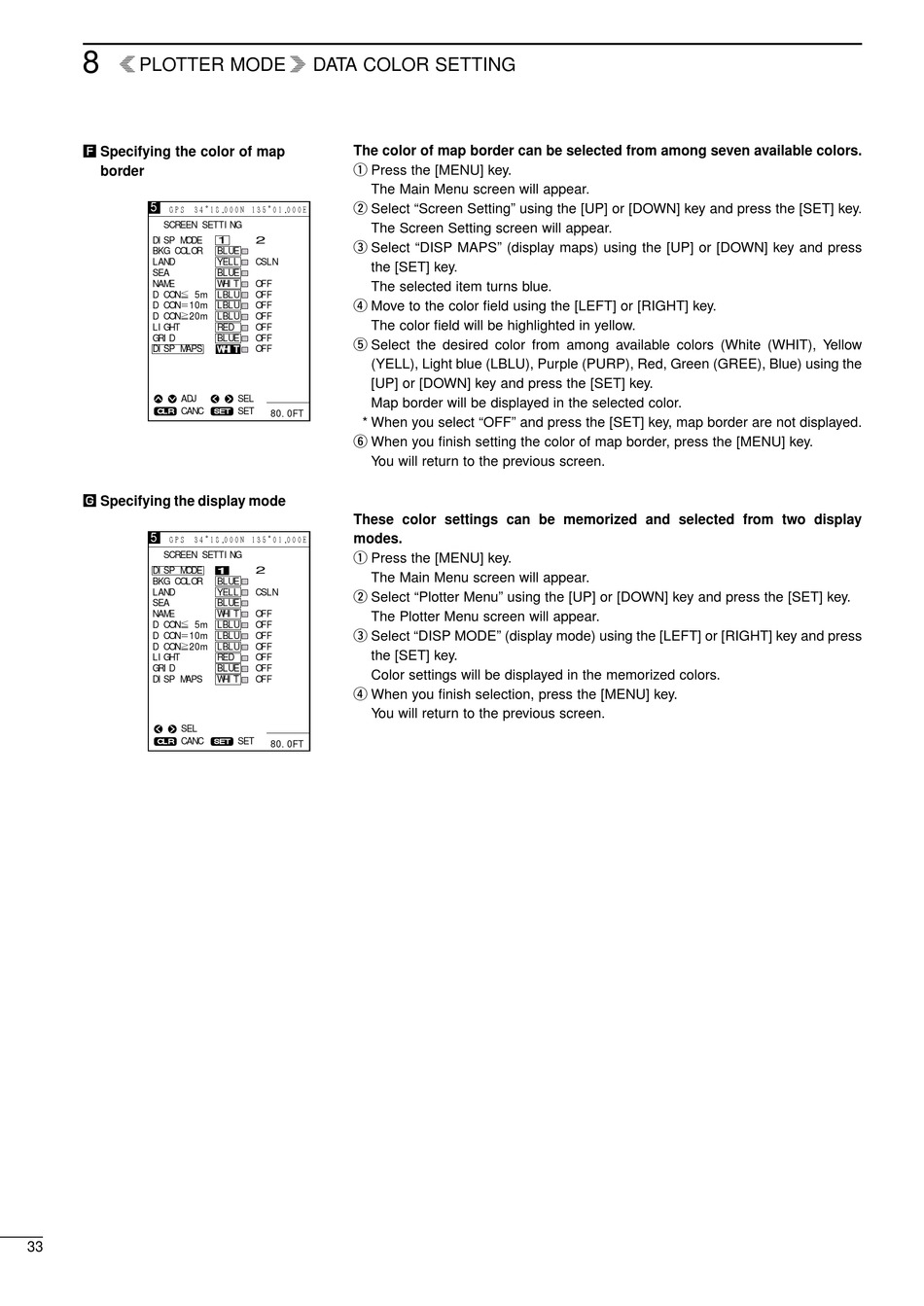

Ï Specifying The Color Of Map Border; Specifying The Display Mode - Icom FP-561 Instruction Manual

8
r PLOTTER MODE q DATA COLOR SETTING
Ï Specifying the color of map
border
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
SCREEN SETTING
DISP MODE
BKG COLOR
LAND
SEA
NAME
D CON≦ 5m
D CON＝10m
D CON≧20m
LIGHT
GRID
DISP MAPS
ADJ
CANC
CLR
˝ Specifying the display mode
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
SCREEN SETTING
DISP MODE
BKG COLOR
LAND
SEA
NAME
D CON≦ 5m
D CON＝10m
D CON≧20m
LIGHT
GRID
DISP MAPS
SEL
CANC
CLR
33
The color of map border can be selected from among seven available colors.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Screen Setting" using the [UP] or [DOWN] key and press the [SET] key.
The Screen Setting screen will appear.
1 2
e Select "DISP MAPS" (display maps) using the [UP] or [DOWN] key and press
BLUE
YELL CSLN
the [SET] key.
BLUE
WHIT OFF
The selected item turns blue.
LBLU OFF
r Move to the color field using the [LEFT] or [RIGHT] key.
LBLU OFF
LBLU OFF
The color field will be highlighted in yellow.
RED OFF
BLUE OFF
t Select the desired color from among available colors (White (WHIT), Yellow
WHIT OFF
(YELL), Light blue (LBLU), Purple (PURP), Red, Green (GREE), Blue) using the
[UP] or [DOWN] key and press the [SET] key.
SEL
Map border will be displayed in the selected color.
SET
SET
80.0FT
* When you select "OFF" and press the [SET] key, map border are not displayed.
y When you finish setting the color of map border, press the [MENU] key.
You will return to the previous screen.
These color settings can be memorized and selected from two display
modes.
q Press the [MENU] key.
1 2
The Main Menu screen will appear.
BLUE
YELL CSLN
w Select "Plotter Menu" using the [UP] or [DOWN] key and press the [SET] key.
BLUE
WHIT OFF
The Plotter Menu screen will appear.
LBLU OFF
e Select "DISP MODE" (display mode) using the [LEFT] or [RIGHT] key and press
LBLU OFF
LBLU OFF
the [SET] key.
RED OFF
BLUE OFF
Color settings will be displayed in the memorized colors.
WHIT OFF
r When you finish selection, press the [MENU] key.
You will return to the previous screen.
SET
SET
80.0FT
