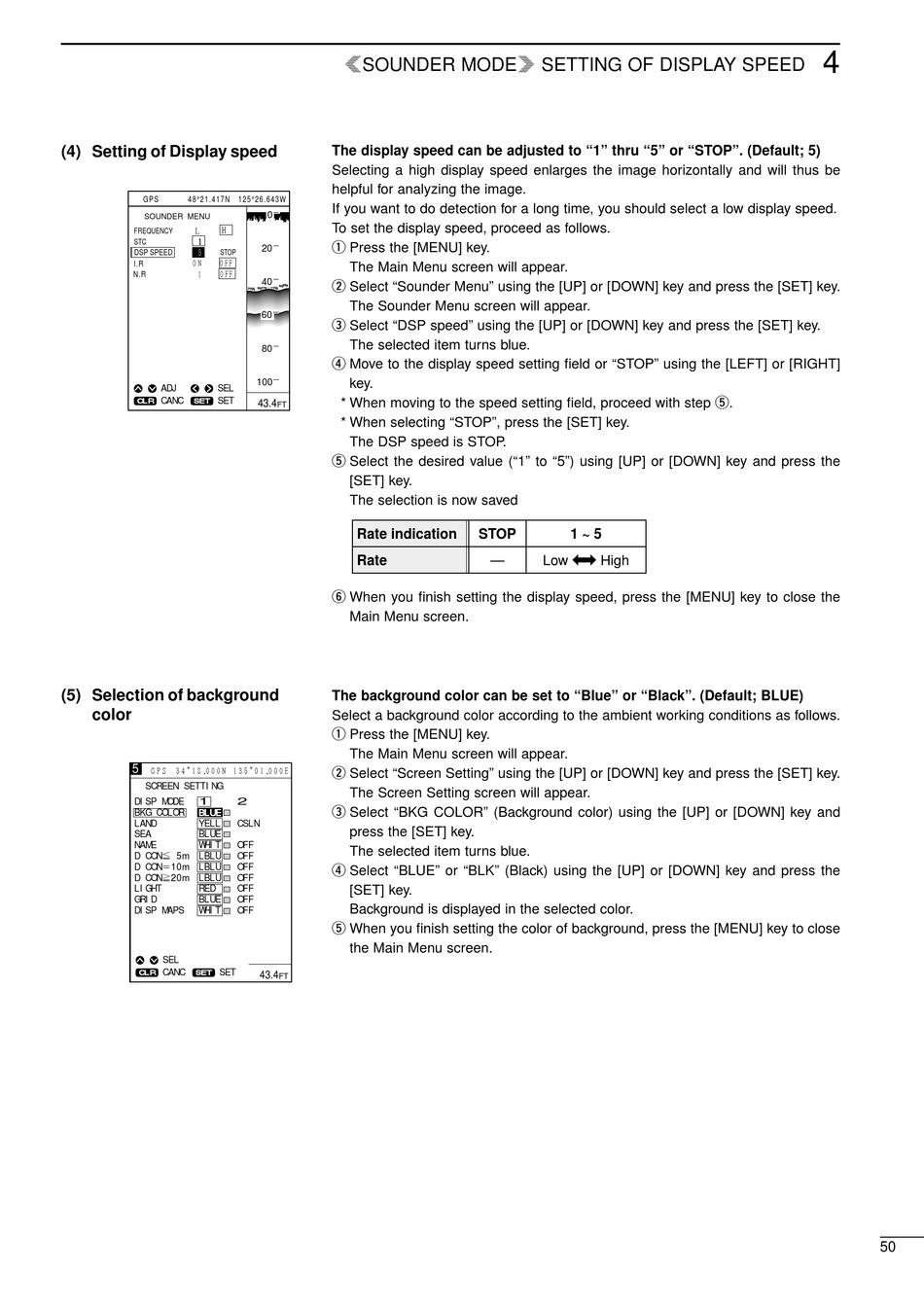

rSOUNDER MODEq SETTING OF DISPLAY SPEED
The display speed can be adjusted to "1" thru "5" or "STOP". (Default; 5)
Selecting a high display speed enlarges the image horizontally and will thus be
helpful for analyzing the image.
If you want to do detection for a long time, you should select a low display speed.
0
To set the display speed, proceed as follows.
q Press the [MENU] key.
20
The Main Menu screen will appear.
40
w Select "Sounder Menu" using the [UP] or [DOWN] key and press the [SET] key.
The Sounder Menu screen will appear.
60
e Select "DSP speed" using the [UP] or [DOWN] key and press the [SET] key.
The selected item turns blue.
80
r Move to the display speed setting field or "STOP" using the [LEFT] or [RIGHT]
key.
100
* When moving to the speed setting field, proceed with step t.
43.4
FT
* When selecting "STOP", press the [SET] key.
The DSP speed is STOP.
t Select the desired value ("1" to "5") using [UP] or [DOWN] key and press the
[SET] key.
The selection is now saved
Rate indication
Rate
y When you finish setting the display speed, press the [MENU] key to close the
Main Menu screen.
The background color can be set to "Blue" or "Black". (Default; BLUE)
Select a background color according to the ambient working conditions as follows.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Screen Setting" using the [UP] or [DOWN] key and press the [SET] key.
The Screen Setting screen will appear.
2
e Select "BKG COLOR" (Background color) using the [UP] or [DOWN] key and
CSLN
press the [SET] key.
OFF
The selected item turns blue.
OFF
OFF
r Select "BLUE" or "BLK" (Black) using the [UP] or [DOWN] key and press the
OFF
OFF
[SET] key.
OFF
Background is displayed in the selected color.
OFF
t When you finish setting the color of background, press the [MENU] key to close
the Main Menu screen.
43.4
FT
STOP 1 ~ 5
— Low b a High
4
