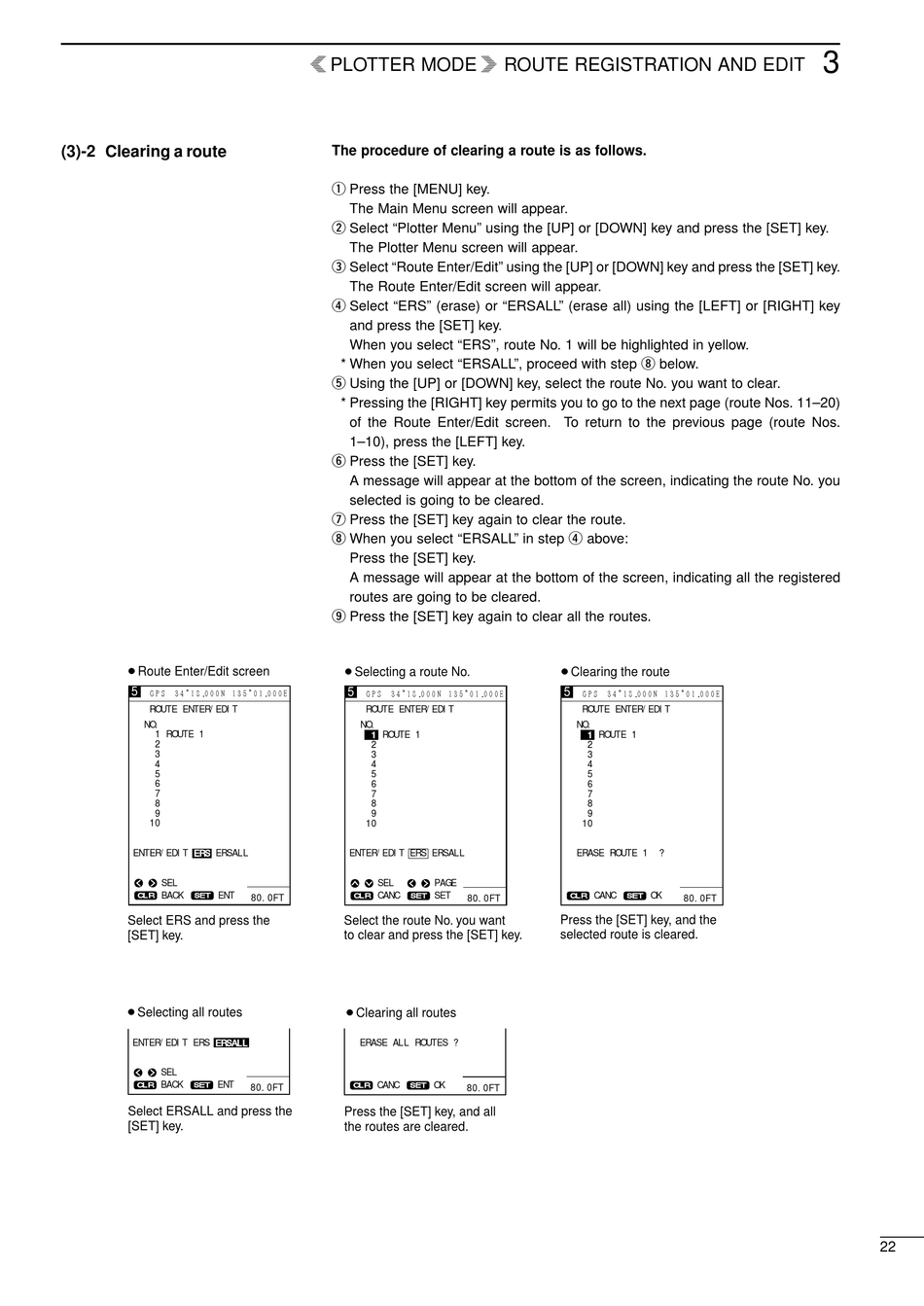

(3)-2 Clearing a route

¡Route Enter/Edit screen
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
ROUTE ENTER/EDIT
NO.
1 ROUTE 1
2
3
4
5
6
7
8
9
10
ENTER/EDIT ERS ERSALL
SEL
BACK ENT
CLR SET
Select ERS and press the
[SET] key.
¡Selecting all routes
ENTER/EDIT ERS ERSALL
SEL
BACK ENT
CLR SET
Select ERSALL and press the
[SET] key.
r PLOTTER MODE q ROUTE REGISTRATION AND EDIT
The procedure of clearing a route is as follows.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Plotter Menu" using the [UP] or [DOWN] key and press the [SET] key.
The Plotter Menu screen will appear.
e Select "Route Enter/Edit" using the [UP] or [DOWN] key and press the [SET] key.
The Route Enter/Edit screen will appear.
r Select "ERS" (erase) or "ERSALL" (erase all) using the [LEFT] or [RIGHT] key
and press the [SET] key.
When you select "ERS", route No. 1 will be highlighted in yellow.
* When you select "ERSALL", proceed with step i below.
t Using the [UP] or [DOWN] key, select the route No. you want to clear.
* Pressing the [RIGHT] key permits you to go to the next page (route Nos. 11–20)
of the Route Enter/Edit screen. To return to the previous page (route Nos.
1–10), press the [LEFT] key.
y Press the [SET] key.
A message will appear at the bottom of the screen, indicating the route No. you
selected is going to be cleared.
u Press the [SET] key again to clear the route.
i When you select "ERSALL" in step r above:
Press the [SET] key.
A message will appear at the bottom of the screen, indicating all the registered
routes are going to be cleared.
o Press the [SET] key again to clear all the routes.
¡Selecting a route No.
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
ROUTE ENTER/EDIT
NO.
1 ROUTE 1
2
3
4
5
6
7
8
9
10
ENTER/EDIT ERS ERSALL
SEL
CANC
CLR SET
80.0FT
Select the route No. you want
to clear and press the [SET] key.
¡Clearing all routes
ERASE ALL ROUTES ?
CANC
CLR SET
80.0FT
Press the [SET] key, and all
the routes are cleared.
¡Clearing the route
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
ROUTE ENTER/EDIT
NO.
1 ROUTE 1
2
3
4
5
6
7
8
9
10
ERASE ROUTE 1
PAGE
SET CANC
CLR
80.0FT
Press the [SET] key, and the
selected route is cleared.
OK
80.0FT
?
OK
SET
80.0FT
