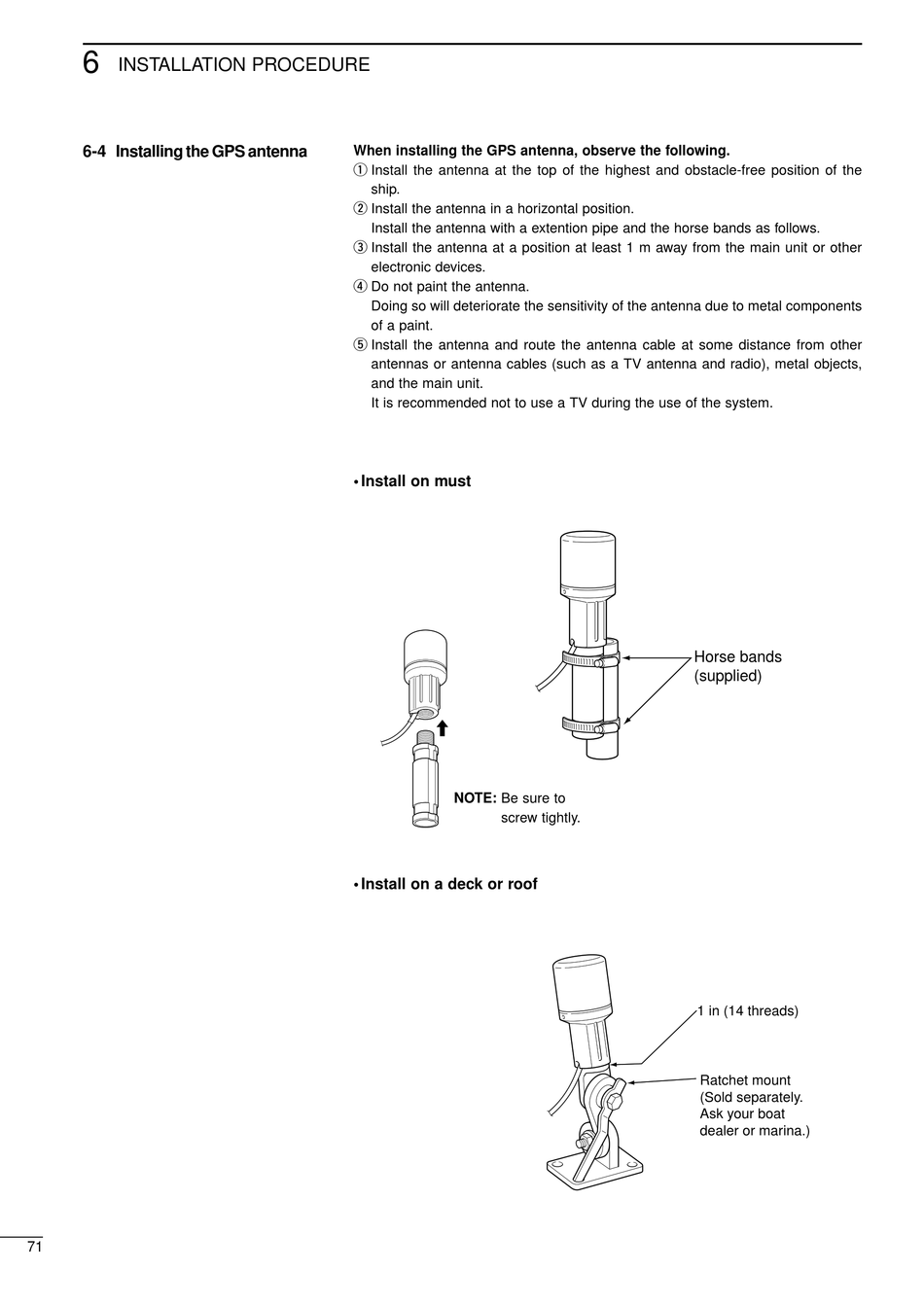

INSTALLATION PROCEDURE
6-4 Installing the GPS antenna
71
When installing the GPS antenna, observe the following.
q Install the antenna at the top of the highest and obstacle-free position of the
ship.
w Install the antenna in a horizontal position.
Install the antenna with a extention pipe and the horse bands as follows.
e Install the antenna at a position at least 1 m away from the main unit or other
electronic devices.
r Do not paint the antenna.
Doing so will deteriorate the sensitivity of the antenna due to metal components
of a paint.
t Install the antenna and route the antenna cable at some distance from other
antennas or antenna cables (such as a TV antenna and radio), metal objects,
and the main unit.
It is recommended not to use a TV during the use of the system.
• Install on must
NOTE: Be sure to
screw tightly.
• Install on a deck or roof
Horse bands
(supplied)
1 in (14 threads)
Ratchet mount
(Sold separately.
Ask your boat
dealer or marina.)
