15
r PLOTTER MODE q ALARM FUNCTION

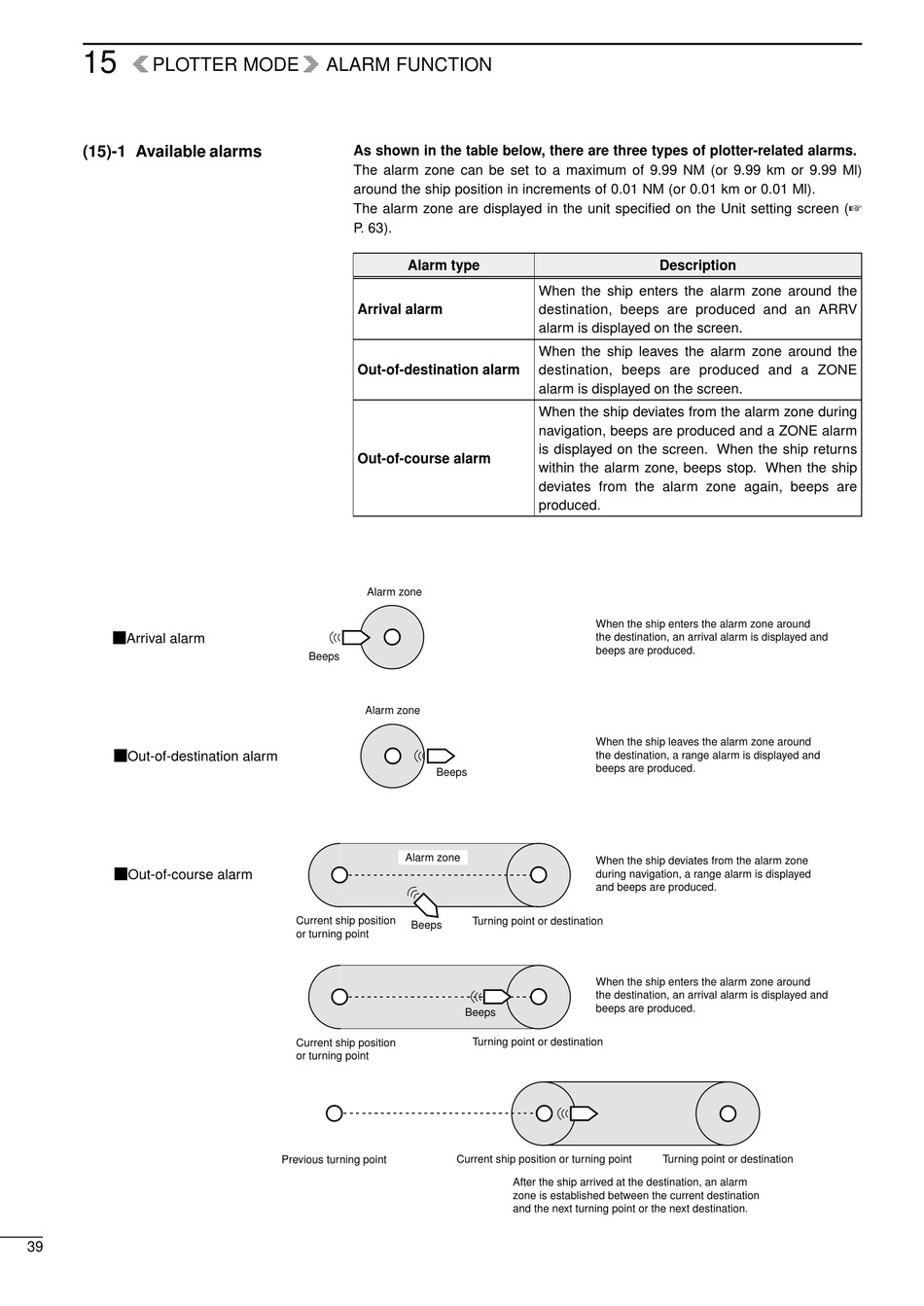

(15)-1 Available alarms

|Arrival alarm
|Out-of-destination alarm
|Out-of-course alarm
39
As shown in the table below, there are three types of plotter-related alarms.
The alarm zone can be set to a maximum of 9.99 NM (or 9.99 km or 9.99 Ml)
around the ship position in increments of 0.01 NM (or 0.01 km or 0.01 Ml).
The alarm zone are displayed in the unit specified on the Unit setting screen (
P. 63).
Alarm type
Arrival alarm
Out-of-destination alarm
Out-of-course alarm
Alarm zone
Beeps
Alarm zone
Beeps
Alarm zone
Current ship position
Beeps
or turning point
Current ship position
or turning point
Previous turning point
When the ship enters the alarm zone around the
destination, beeps are produced and an ARRV
alarm is displayed on the screen.
When the ship leaves the alarm zone around the
destination, beeps are produced and a ZONE
alarm is displayed on the screen.
When the ship deviates from the alarm zone during
navigation, beeps are produced and a ZONE alarm
is displayed on the screen. When the ship returns
within the alarm zone, beeps stop. When the ship
deviates from the alarm zone again, beeps are
produced.
When the ship enters the alarm zone around
the destination, an arrival alarm is displayed and
beeps are produced.
When the ship leaves the alarm zone around
the destination, a range alarm is displayed and
beeps are produced.
When the ship deviates from the alarm zone
during navigation, a range alarm is displayed
and beeps are produced.
Turning point or destination
When the ship enters the alarm zone around
the destination, an arrival alarm is displayed and
beeps are produced.
Beeps
Turning point or destination
Current ship position or turning point
After the ship arrived at the destination, an alarm
zone is established between the current destination
and the next turning point or the next destination.
Description
Turning point or destination
