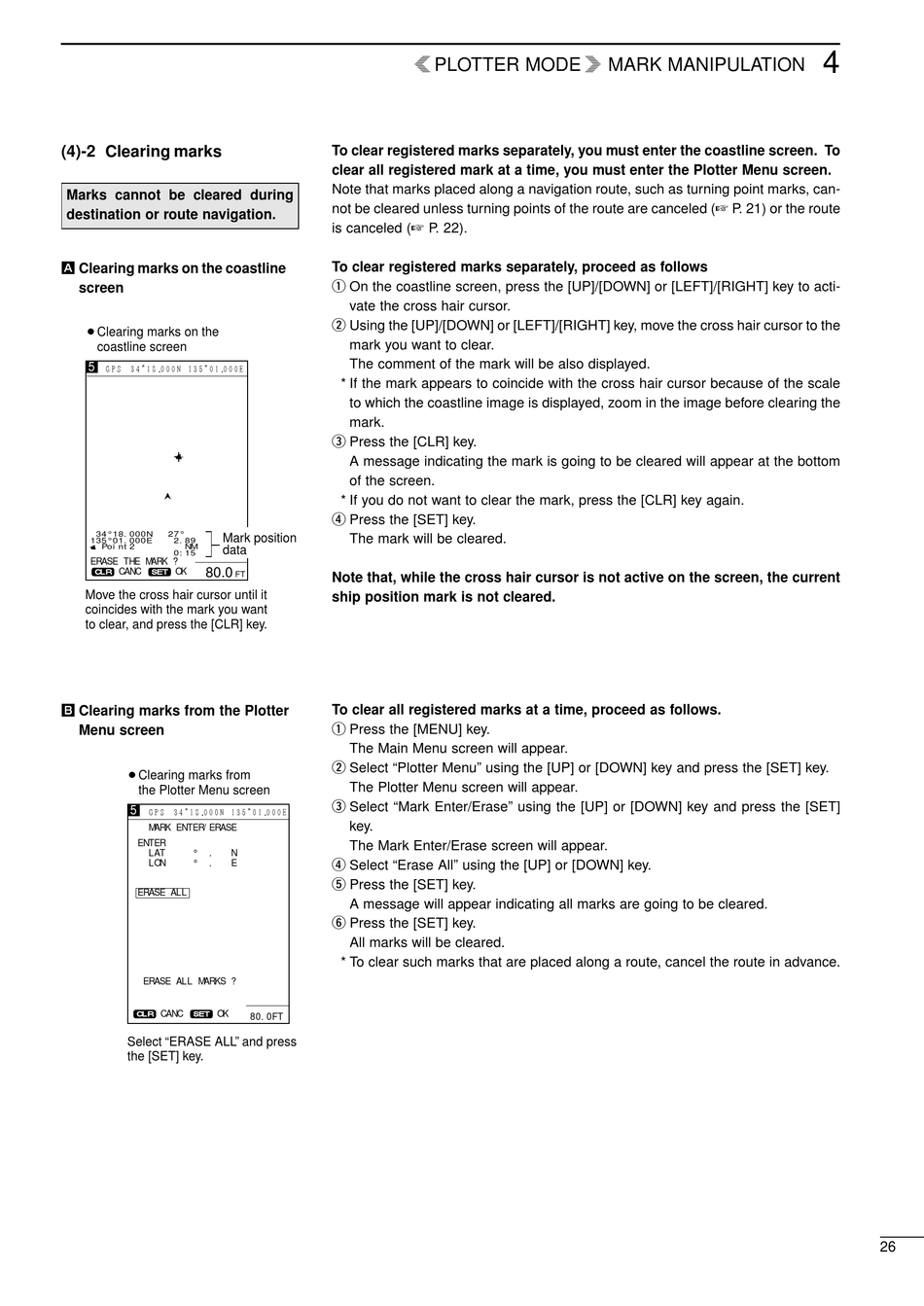

(4)-2 Clearing marks

Marks cannot be cleared during
destination or route navigation.
Å Clearing marks on the coastline
screen
¡Clearing marks on the
coastline screen
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
34°18.000N 27°
Mark position
135°01.000E 2.89
Point2 NM
data
0:15
ERASE THE MARK ?
CANC OK 80.0
CLR SET
FT
Move the cross hair cursor until it
coincides with the mark you want
to clear, and press the [CLR] key.
ı Clearing marks from the Plotter
Menu screen
¡Clearing marks from
the Plotter Menu screen
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
MARK ENTER/ERASE
ENTER
LAT ° . N
LON ° . E
ERASE ALL
ERASE ALL MARKS ?
CANC OK
CLR SET
Select "ERASE ALL" and press
the [SET] key.
r PLOTTER MODE q MARK MANIPULATION
To clear registered marks separately, you must enter the coastline screen. To
clear all registered mark at a time, you must enter the Plotter Menu screen.
Note that marks placed along a navigation route, such as turning point marks, can-
not be cleared unless turning points of the route are canceled (
is canceled (
To clear registered marks separately, proceed as follows
q On the coastline screen, press the [UP]/[DOWN] or [LEFT]/[RIGHT] key to acti-
vate the cross hair cursor.
w Using the [UP]/[DOWN] or [LEFT]/[RIGHT] key, move the cross hair cursor to the
mark you want to clear.
The comment of the mark will be also displayed.
* If the mark appears to coincide with the cross hair cursor because of the scale
to which the coastline image is displayed, zoom in the image before clearing the
mark.
e Press the [CLR] key.
A message indicating the mark is going to be cleared will appear at the bottom
of the screen.
* If you do not want to clear the mark, press the [CLR] key again.
r Press the [SET] key.
The mark will be cleared.
Note that, while the cross hair cursor is not active on the screen, the current
ship position mark is not cleared.
To clear all registered marks at a time, proceed as follows.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Plotter Menu" using the [UP] or [DOWN] key and press the [SET] key.
The Plotter Menu screen will appear.
e Select "Mark Enter/Erase" using the [UP] or [DOWN] key and press the [SET]
key.
The Mark Enter/Erase screen will appear.
r Select "Erase All" using the [UP] or [DOWN] key.
t Press the [SET] key.
A message will appear indicating all marks are going to be cleared.
y Press the [SET] key.
All marks will be cleared.
* To clear such marks that are placed along a route, cancel the route in advance.
80.0FT
P. 22).
4
P. 21) or the route
