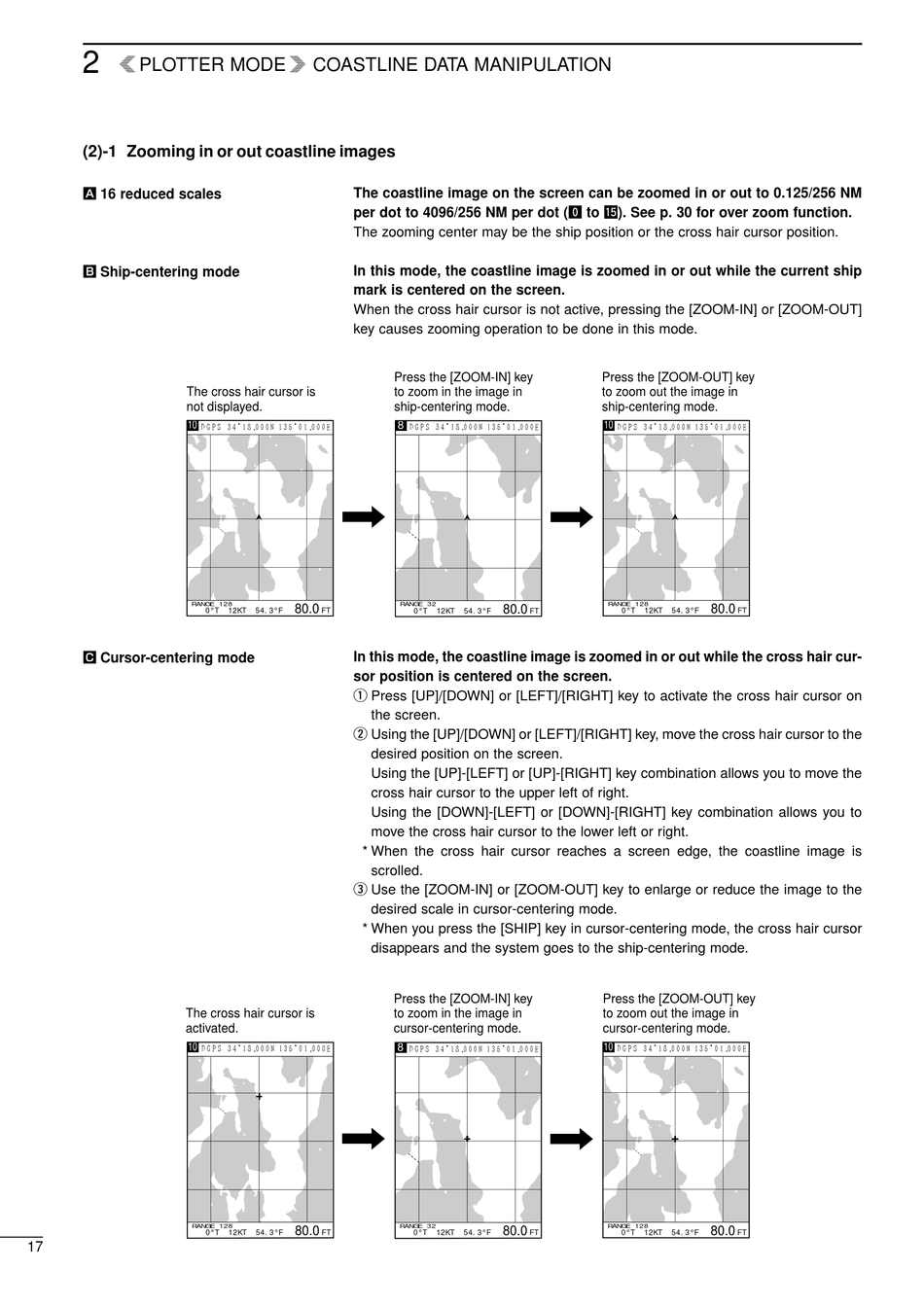

r PLOTTER MODE q COASTLINE DATA MANIPULATION

(2)-1 Zooming in or out coastline images

Å 16 reduced scales
ı Ship-centering mode
The cross hair cursor is
not displayed.
10
DGPS 34ﾟ18.000N 135ﾟ01.000E
RANGE 128
Ç Cursor-centering mode
The cross hair cursor is
activated.
10
DGPS 34ﾟ18.000N 135ﾟ01.000E
RANGE 128
17
The coastline image on the screen can be zoomed in or out to 0.125/256 NM
per dot to 4096/256 NM per dot (/ to ⁄5 ) . See p. 30 for over zoom function.
The zooming center may be the ship position or the cross hair cursor position.
In this mode, the coastline image is zoomed in or out while the current ship
mark is centered on the screen.
When the cross hair cursor is not active, pressing the [ZOOM-IN] or [ZOOM-OUT]
key causes zooming operation to be done in this mode.
80.0
0°T 12KT 54.3°F
FT
In this mode, the coastline image is zoomed in or out while the cross hair cur-
sor position is centered on the screen.
q Press [UP]/[DOWN] or [LEFT]/[RIGHT] key to activate the cross hair cursor on
the screen.
w Using the [UP]/[DOWN] or [LEFT]/[RIGHT] key, move the cross hair cursor to the
desired position on the screen.
Using the [UP]-[LEFT] or [UP]-[RIGHT] key combination allows you to move the
cross hair cursor to the upper left of right.
Using the [DOWN]-[LEFT] or [DOWN]-[RIGHT] key combination allows you to
move the cross hair cursor to the lower left or right.
* When the cross hair cursor reaches a screen edge, the coastline image is
scrolled.
e Use the [ZOOM-IN] or [ZOOM-OUT] key to enlarge or reduce the image to the
desired scale in cursor-centering mode.
* When you press the [SHIP] key in cursor-centering mode, the cross hair cursor
disappears and the system goes to the ship-centering mode.
80.0
0°T 12KT 54.3°F
FT
Press the [ZOOM-IN] key
to zoom in the image in

ship-centering mode.

8
DGPS 34ﾟ18.000N 135ﾟ01.000E
RANGE 32
80.0
0°T 12KT 54.3°F
FT
Press the [ZOOM-IN] key
to zoom in the image in
cursor-centering mode.
8
DGPS 34ﾟ18.000N 135ﾟ01.000E
RANGE 32
80.0
0°T 12KT 54.3°F
FT
Press the [ZOOM-OUT] key
to zoom out the image in
ship-centering mode.
10
DGPS 34ﾟ18.000N 135ﾟ01.000E
RANGE 128
80.0
0°T 12KT 54.3°F
FT
Press the [ZOOM-OUT] key
to zoom out the image in
cursor-centering mode.
10
DGPS 34ﾟ18.000N 135ﾟ01.000E
RANGE 128
80.0
0°T 12KT 54.3°F
FT
