rCOMBINATION MODEq AVAILABLE SCREENS AND INDICATIONS
!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

COMBINATION MODE

!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!!
(1) Available Screens and
Indications
z Coastline screen
x Sounder screen
61

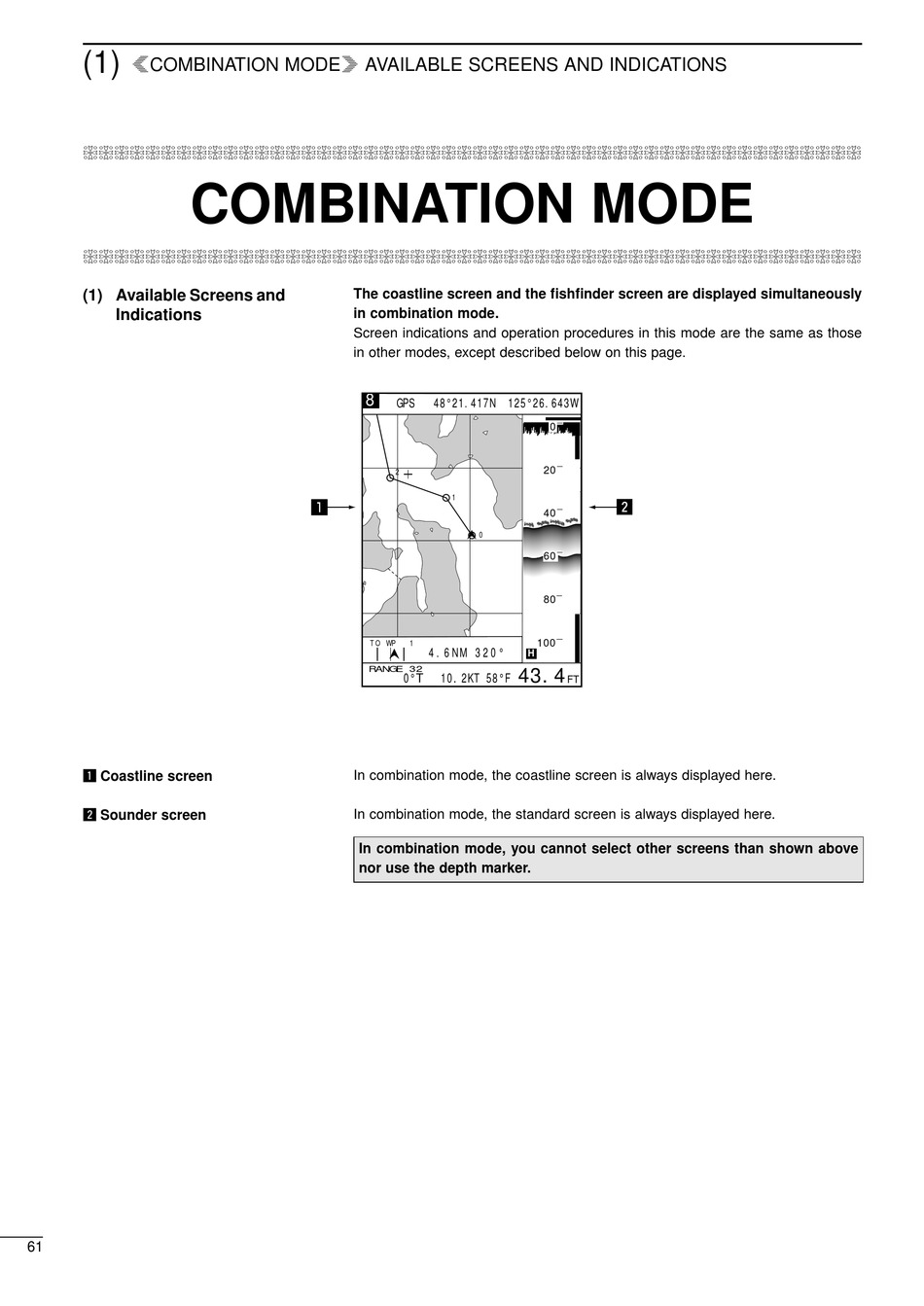

The coastline screen and the fishfinder screen are displayed simultaneously
in combination mode.
Screen indications and operation procedures in this mode are the same as those
in other modes, except described below on this page.
8
GPS 48°21.417N
2
1
z
0
T O W P 1
4 . 6 N M 3 2 0 °
RANGE 32
0°T 10.2KT 58°F
In combination mode, the coastline screen is always displayed here.
In combination mode, the standard screen is always displayed here.
In combination mode, you cannot select other screens than shown above
nor use the depth marker.
125°26.643W
0
20
x
40
60
80
100
H
43.4
FT
