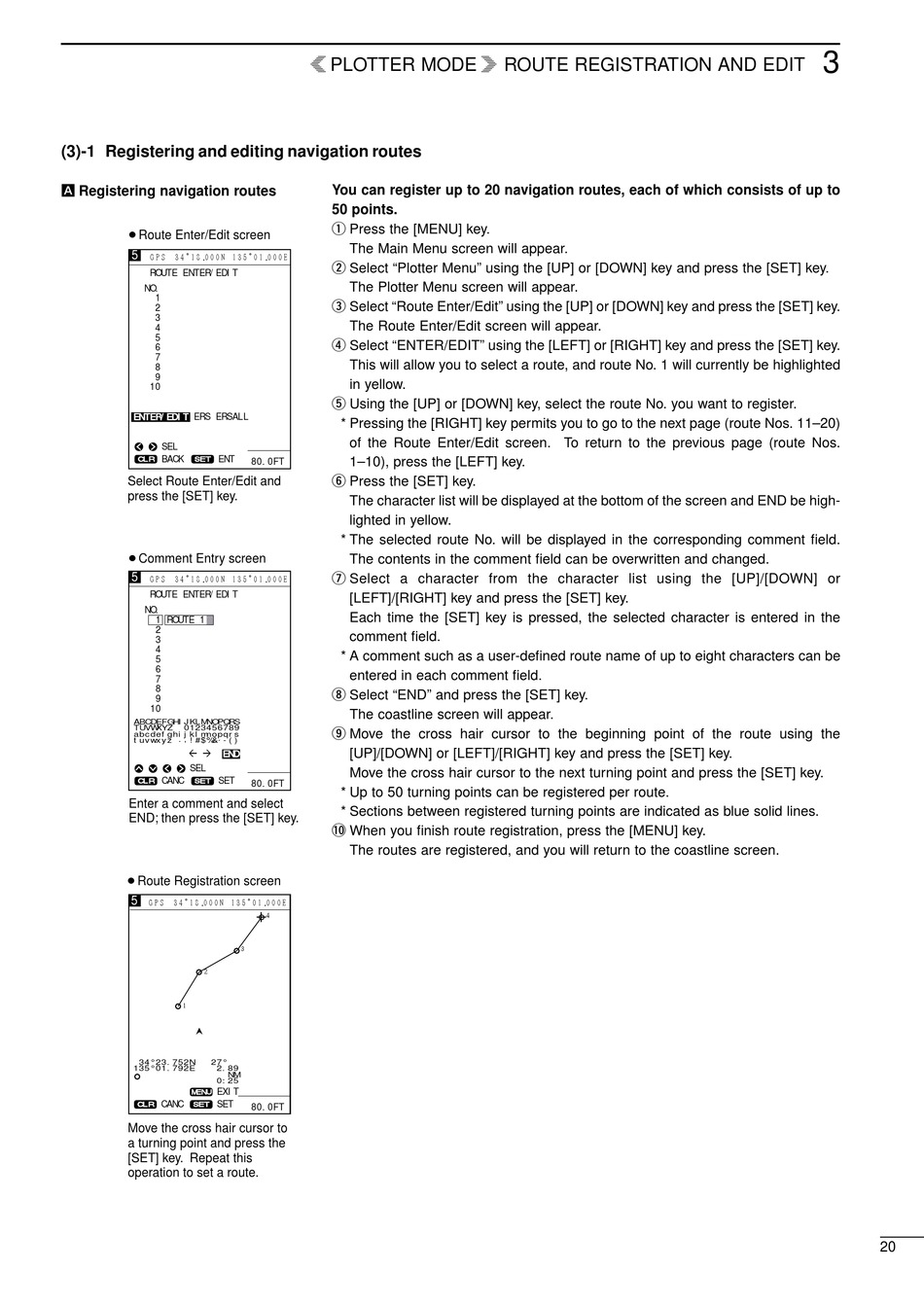

(3)-1 Registering and editing navigation routes

Å Registering navigation routes
¡Route Enter/Edit screen
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
ROUTE ENTER/EDIT
NO.
1
2
3
4
5
6
7
8
9
10
ENTER/EDIT ERS ERSALL
SEL
BACK ENT
CLR SET
Select Route Enter/Edit and
press the [SET] key.
¡Comment Entry screen
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
ROUTE ENTER/EDIT
NO.
1 ROUTE 1
2
3
4
5
6
7
8
9
10
ABCDEFGHIJKLMNOPQRS
TUVWXYZ 0123456789
abcdefghijklmnopqrs
tuvwxyz ., !#$%& ´ -()
" # END
SEL
CANC SET
CLR SET
Enter a comment and select
END; then press the [SET] key.
¡Route Registration screen
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
2
1
34°23.752N 27°
135°01.792E 2.89
NM
0:25
EXIT
MENU
CANC SET
CLR SET
Move the cross hair cursor to
a turning point and press the
[SET] key. Repeat this
operation to set a route.
r PLOTTER MODE q ROUTE REGISTRATION AND EDIT
You can register up to 20 navigation routes, each of which consists of up to
50 points.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Plotter Menu" using the [UP] or [DOWN] key and press the [SET] key.
The Plotter Menu screen will appear.
e Select "Route Enter/Edit" using the [UP] or [DOWN] key and press the [SET] key.
The Route Enter/Edit screen will appear.
r Select "ENTER/EDIT" using the [LEFT] or [RIGHT] key and press the [SET] key.
This will allow you to select a route, and route No. 1 will currently be highlighted
in yellow.
t Using the [UP] or [DOWN] key, select the route No. you want to register.
* Pressing the [RIGHT] key permits you to go to the next page (route Nos. 11–20)
of the Route Enter/Edit screen. To return to the previous page (route Nos.
80.0FT 1–10), press the [LEFT] key.
y Press the [SET] key.
The character list will be displayed at the bottom of the screen and END be high-
lighted in yellow.
* The selected route No. will be displayed in the corresponding comment field.
The contents in the comment field can be overwritten and changed.
u Select a character from the character list using the [UP]/[DOWN] or
[LEFT]/[RIGHT] key and press the [SET] key.
Each time the [SET] key is pressed, the selected character is entered in the
comment field.
* A comment such as a user-defined route name of up to eight characters can be
entered in each comment field.
i Select "END" and press the [SET] key.
The coastline screen will appear.
o Move the cross hair cursor to the beginning point of the route using the
[UP]/[DOWN] or [LEFT]/[RIGHT] key and press the [SET] key.
Move the cross hair cursor to the next turning point and press the [SET] key.
80.0FT
* Up to 50 turning points can be registered per route.
* Sections between registered turning points are indicated as blue solid lines.
!0 When you finish route registration, press the [MENU] key.
The routes are registered, and you will return to the coastline screen.
