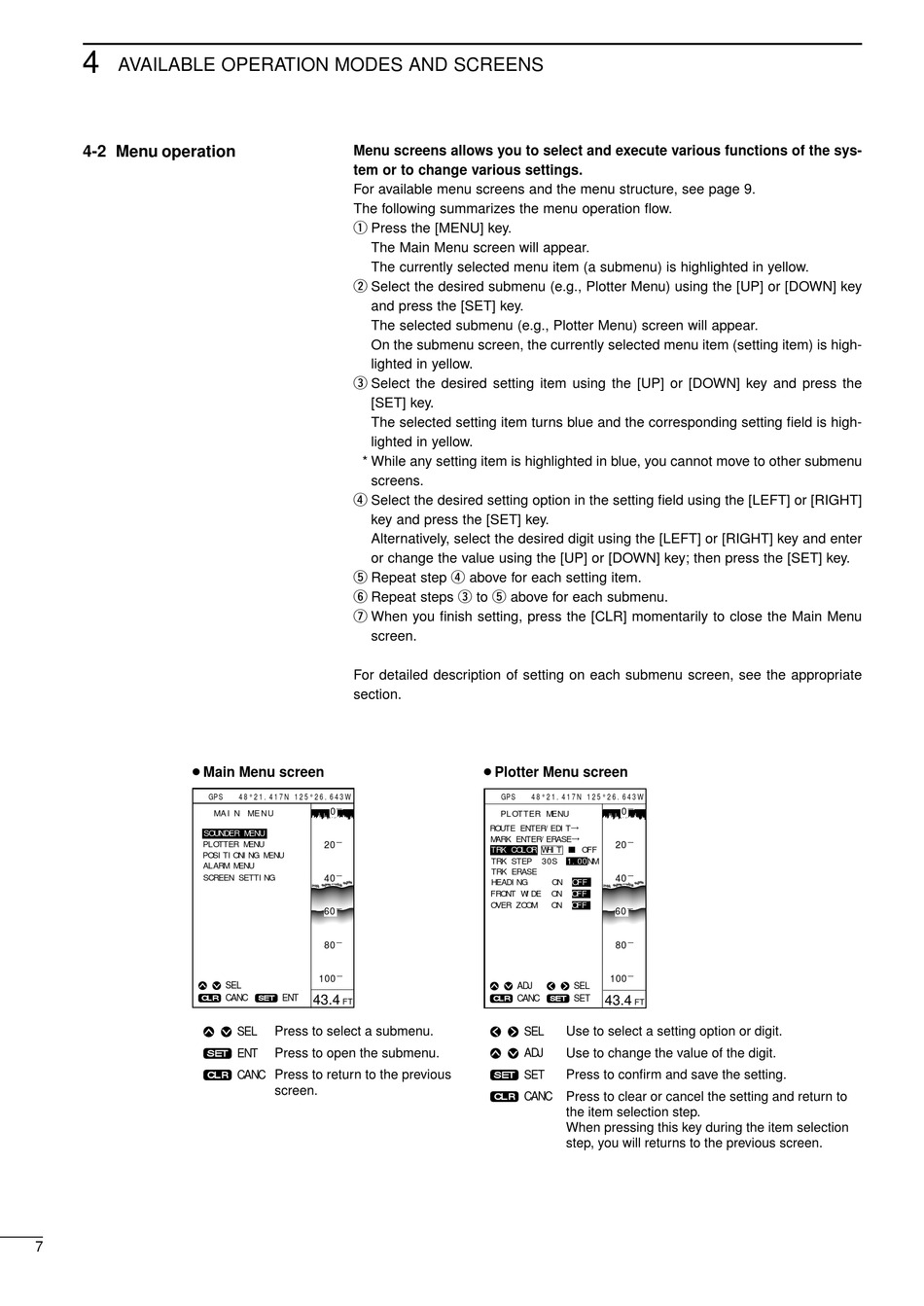

AVAILABLE OPERATION MODES AND SCREENS

4-2 Menu operation

¡Main Menu screen
G P S
SOUNDER MENU
PLOTTER MENU
POSITIONING MENU
ALARM MENU
SCREEN SETTING
CLR
SET
CLR
7
Menu screens allows you to select and execute various functions of the sys-
tem or to change various settings.
For available menu screens and the menu structure, see page 9.
The following summarizes the menu operation flow.
q Press the [MENU] key.
The Main Menu screen will appear.
The currently selected menu item (a submenu) is highlighted in yellow.
w Select the desired submenu (e.g., Plotter Menu) using the [UP] or [DOWN] key
and press the [SET] key.
The selected submenu (e.g., Plotter Menu) screen will appear.
On the submenu screen, the currently selected menu item (setting item) is high-
lighted in yellow.
e Select the desired setting item using the [UP] or [DOWN] key and press the
[SET] key.
The selected setting item turns blue and the corresponding setting field is high-
lighted in yellow.
* While any setting item is highlighted in blue, you cannot move to other submenu
screens.
r Select the desired setting option in the setting field using the [LEFT] or [RIGHT]
key and press the [SET] key.
Alternatively, select the desired digit using the [LEFT] or [RIGHT] key and enter
or change the value using the [UP] or [DOWN] key; then press the [SET] key.
t Repeat step r above for each setting item.
y Repeat steps e to t above for each submenu.
u When you finish setting, press the [CLR] momentarily to close the Main Menu
screen.
For detailed description of setting on each submenu screen, see the appropriate
section.
4 8 ° 2 1 . 4 1 7 N 1 2 5 ° 2 6 . 6 4 3 W
0
M A I N M E N U
20
40
60
80
100
SEL
CANC ENT
SET 43.4
FT
SEL
Press to select a submenu.
ENT
Press to open the submenu.
CANC
Press to return to the previous
screen.
¡Plotter Menu screen
G P S 4 8 ° 2 1 . 4 1 7 N 1 2 5 ° 2 6 . 6 4 3 W
0
PLOTTER MENU
ROUTE ENTER/EDIT→
MARK ENTER/ERASE→
20
TRK COLOR WHIT OFF
TRK STEP 30S 1.00NM
TRK ERASE
40
HEADING ON OFF
FRONT WIDE ON OFF
OVER ZOOM ON OFF
60
80
100
ADJ SEL
CANC SET
CLR SET 43.4
FT
SEL
Use to select a setting option or digit.
ADJ
Use to change the value of the digit.
SET
Press to confirm and save the setting.
SET
CANC
CLR Press to clear or cancel the setting and return to
the item selection step.
When pressing this key during the item selection
step, you will returns to the previous screen.
