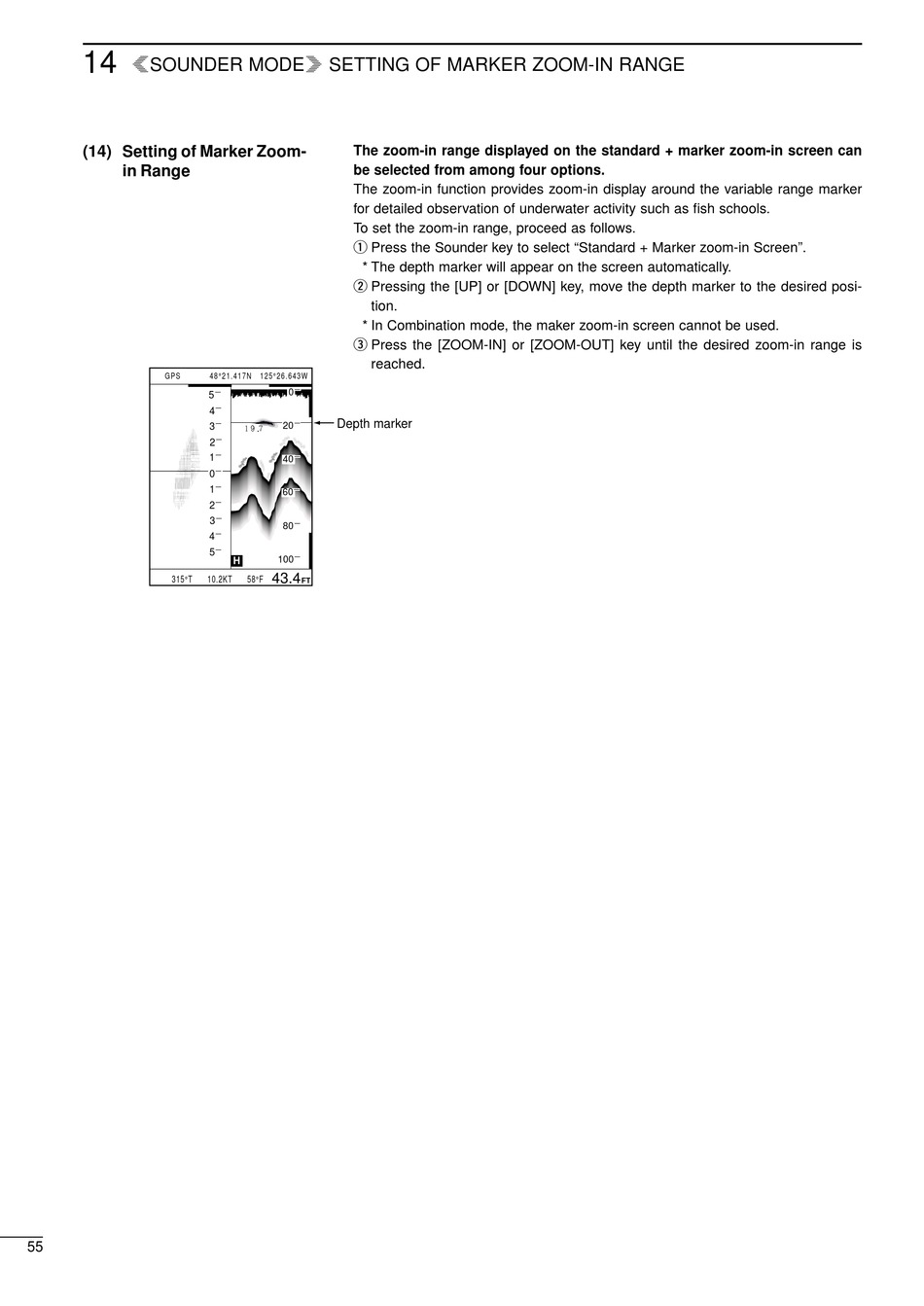

rSOUNDER MODEq SETTING OF MARKER ZOOM-IN RANGE
(14) Setting of Marker Zoom-
in Range
GPS
315 T
55
The zoom-in range displayed on the standard + marker zoom-in screen can
be selected from among four options.
The zoom-in function provides zoom-in display around the variable range marker
for detailed observation of underwater activity such as fish schools.
To set the zoom-in range, proceed as follows.
q Press the Sounder key to select "Standard + Marker zoom-in Screen".
* The depth marker will appear on the screen automatically.
w Pressing the [UP] or [DOWN] key, move the depth marker to the desired posi-
tion.
* In Combination mode, the maker zoom-in screen cannot be used.
e Press the [ZOOM-IN] or [ZOOM-OUT] key until the desired zoom-in range is
reached.
