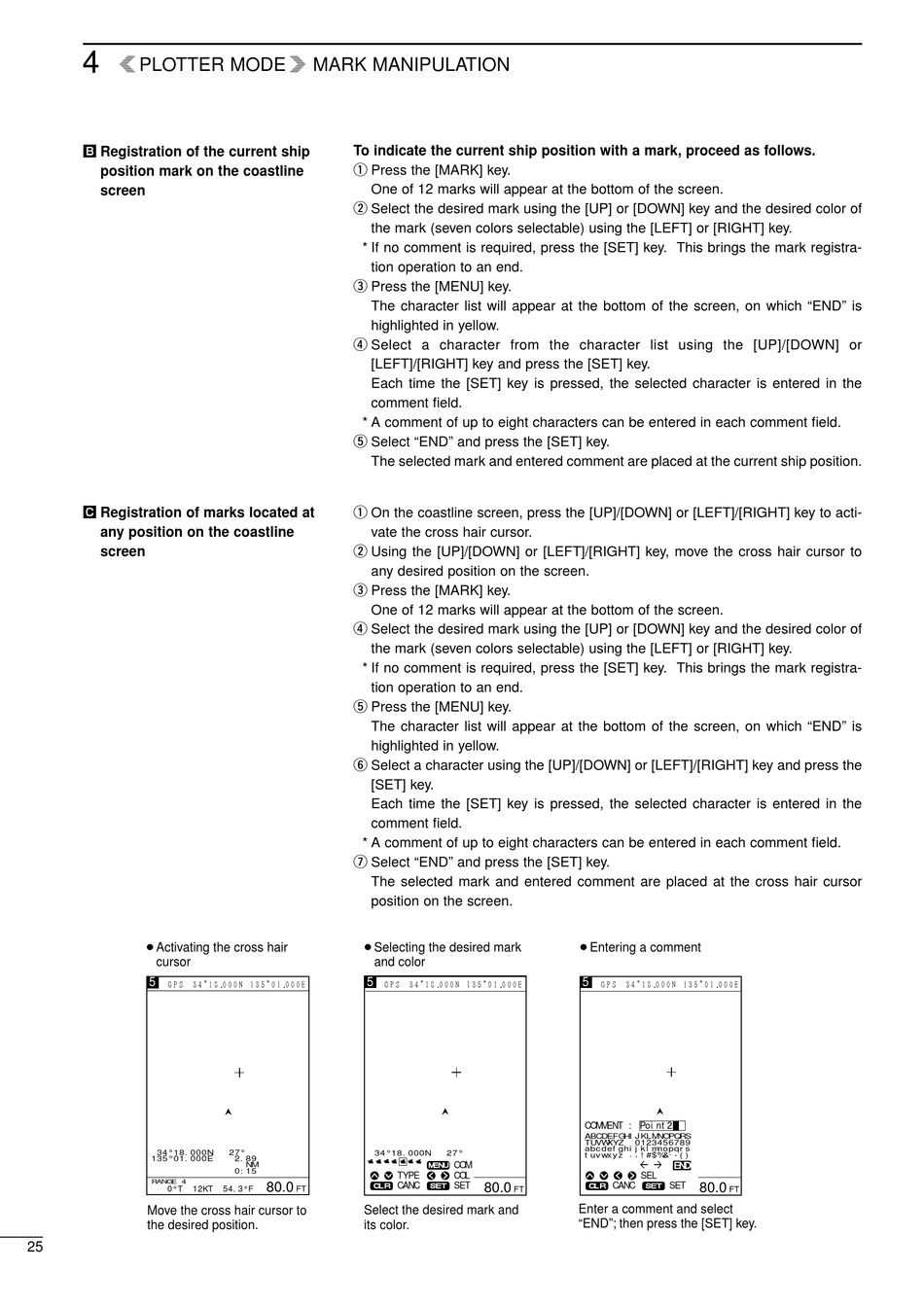

Registration Of The Current Ship Position Mark On The Coastline Screen; Ç Registration Of Marks Located At Any Position On The Coastline Screen - Icom FP-561 Instruction Manual

4
r PLOTTER MODE q MARK MANIPULATION
ı Registration of the current ship
position mark on the coastline
screen
Ç Registration of marks located at
any position on the coastline
screen
¡Activating the cross hair
cursor
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
34°18.000N
135°01.000E
RANGE 4
0°T 12KT
Move the cross hair cursor to
the desired position.
25
To indicate the current ship position with a mark, proceed as follows.
q Press the [MARK] key.
One of 12 marks will appear at the bottom of the screen.
w Select the desired mark using the [UP] or [DOWN] key and the desired color of
the mark (seven colors selectable) using the [LEFT] or [RIGHT] key.
* If no comment is required, press the [SET] key. This brings the mark registra-
tion operation to an end.
e Press the [MENU] key.
The character list will appear at the bottom of the screen, on which "END" is
highlighted in yellow.
r Select a character from the character list using the [UP]/[DOWN] or
[LEFT]/[RIGHT] key and press the [SET] key.
Each time the [SET] key is pressed, the selected character is entered in the
comment field.
* A comment of up to eight characters can be entered in each comment field.
t Select "END" and press the [SET] key.
The selected mark and entered comment are placed at the current ship position.
q On the coastline screen, press the [UP]/[DOWN] or [LEFT]/[RIGHT] key to acti-
vate the cross hair cursor.
w Using the [UP]/[DOWN] or [LEFT]/[RIGHT] key, move the cross hair cursor to
any desired position on the screen.
e Press the [MARK] key.
One of 12 marks will appear at the bottom of the screen.
r Select the desired mark using the [UP] or [DOWN] key and the desired color of
the mark (seven colors selectable) using the [LEFT] or [RIGHT] key.
* If no comment is required, press the [SET] key. This brings the mark registra-
tion operation to an end.
t Press the [MENU] key.
The character list will appear at the bottom of the screen, on which "END" is
highlighted in yellow.
y Select a character using the [UP]/[DOWN] or [LEFT]/[RIGHT] key and press the
[SET] key.
Each time the [SET] key is pressed, the selected character is entered in the
comment field.
* A comment of up to eight characters can be entered in each comment field.
u Select "END" and press the [SET] key.
The selected mark and entered comment are placed at the cross hair cursor
position on the screen.
¡Selecting the desired mark
and color
