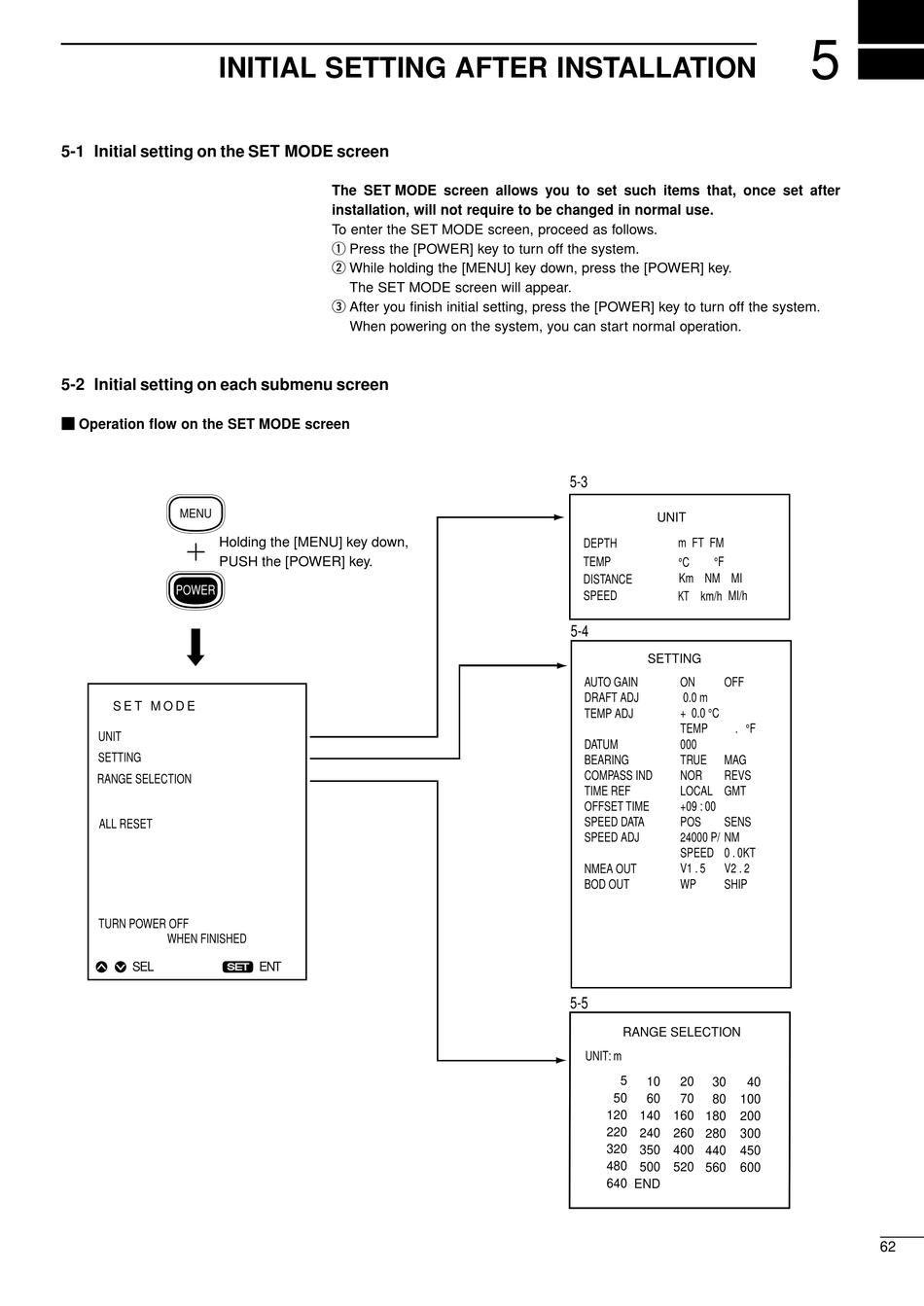

INITIAL SETTING AFTER INSTALLATION

5-1 Initial setting on the SET MODE screen

5-2 Initial setting on each submenu screen

| Operation flow on the SET MODE screen
MENU
Holding the [MENU] key down,
PUSH the [POWER] key.
POWER
S E T M O D E
UNIT
SETTING
RANGE SELECTION
ALL RESET
TURN POWER OFF
WHEN FINISHED
SEL
SET
The SET MODE screen allows you to set such items that, once set after
installation, will not require to be changed in normal use.
To enter the SET MODE screen, proceed as follows.
q Press the [POWER] key to turn off the system.
w While holding the [MENU] key down, press the [POWER] key.
The SET MODE screen will appear.
e After you finish initial setting, press the [POWER] key to turn off the system.
When powering on the system, you can start normal operation.
ENT
5-3
UNIT
m FT FM
DEPTH
TEMP C F
DISTANCE Km NM MI
KT km/h MI/h
SPEED
5-4
SETTING
AUTO GAIN ON OFF
DRAFT ADJ 0.0 m
TEMP ADJ + 0.0 C
TEMP . F
DATUM 000
BEARING TRUE MAG
COMPASS IND NOR REVS
TIME REF LOCAL GMT
OFFSET TIME +09 : 00
SPEED DATA POS SENS
SPEED ADJ 24000 P/ NM
SPEED 0 . 0KT
NMEA OUT V1 . 5 V2 . 2
BOD OUT WP SHIP
5-5
RANGE SELECTION
UNIT: m
5
10 20 30
50 60 70
80 100
120
140 160 180 200
220 240 260
280 300
320
350 400
440 450
480
500 520 560 600
640
END
5
40
62
