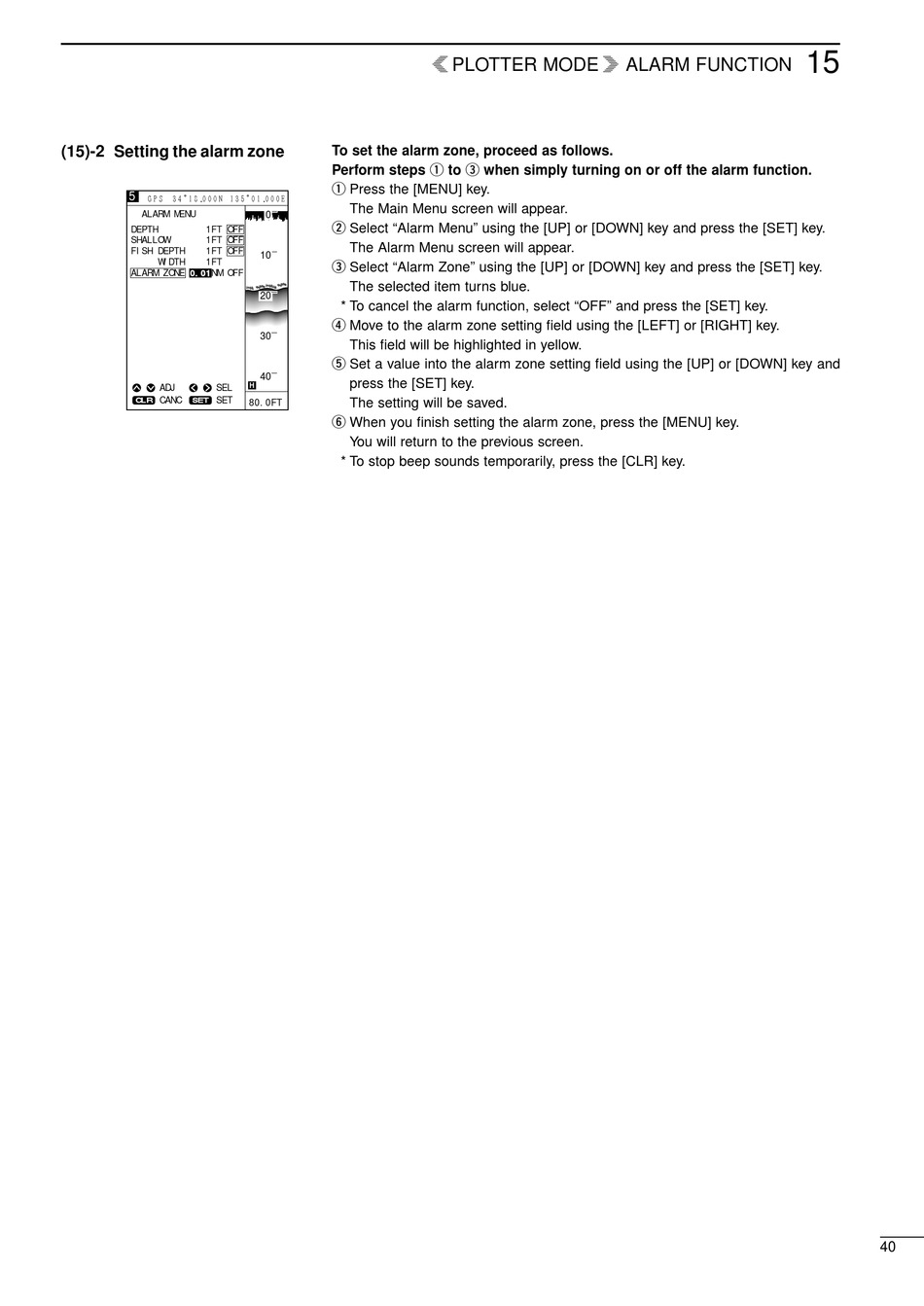

(15)-2 Setting the alarm zone

5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
ALARM MENU
DEPTH 1FT OFF
SHALLOW 1FT OFF
FISH DEPTH 1FT OFF
WIDTH 1FT
ALARM ZONE 0.01NM OFF
ADJ SEL
CANC SET
CLR SET
To set the alarm zone, proceed as follows.
Perform steps q to e when simply turning on or off the alarm function.
q Press the [MENU] key.
The Main Menu screen will appear.
0
w Select "Alarm Menu" using the [UP] or [DOWN] key and press the [SET] key.
The Alarm Menu screen will appear.
10
e Select "Alarm Zone" using the [UP] or [DOWN] key and press the [SET] key.
The selected item turns blue.
20
* To cancel the alarm function, select "OFF" and press the [SET] key.
r Move to the alarm zone setting field using the [LEFT] or [RIGHT] key.
30
This field will be highlighted in yellow.
t Set a value into the alarm zone setting field using the [UP] or [DOWN] key and
40
press the [SET] key.
H
The setting will be saved.
80.0FT
y When you finish setting the alarm zone, press the [MENU] key.
You will return to the previous screen.
* To stop beep sounds temporarily, press the [CLR] key.
r PLOTTER MODE q ALARM FUNCTION
