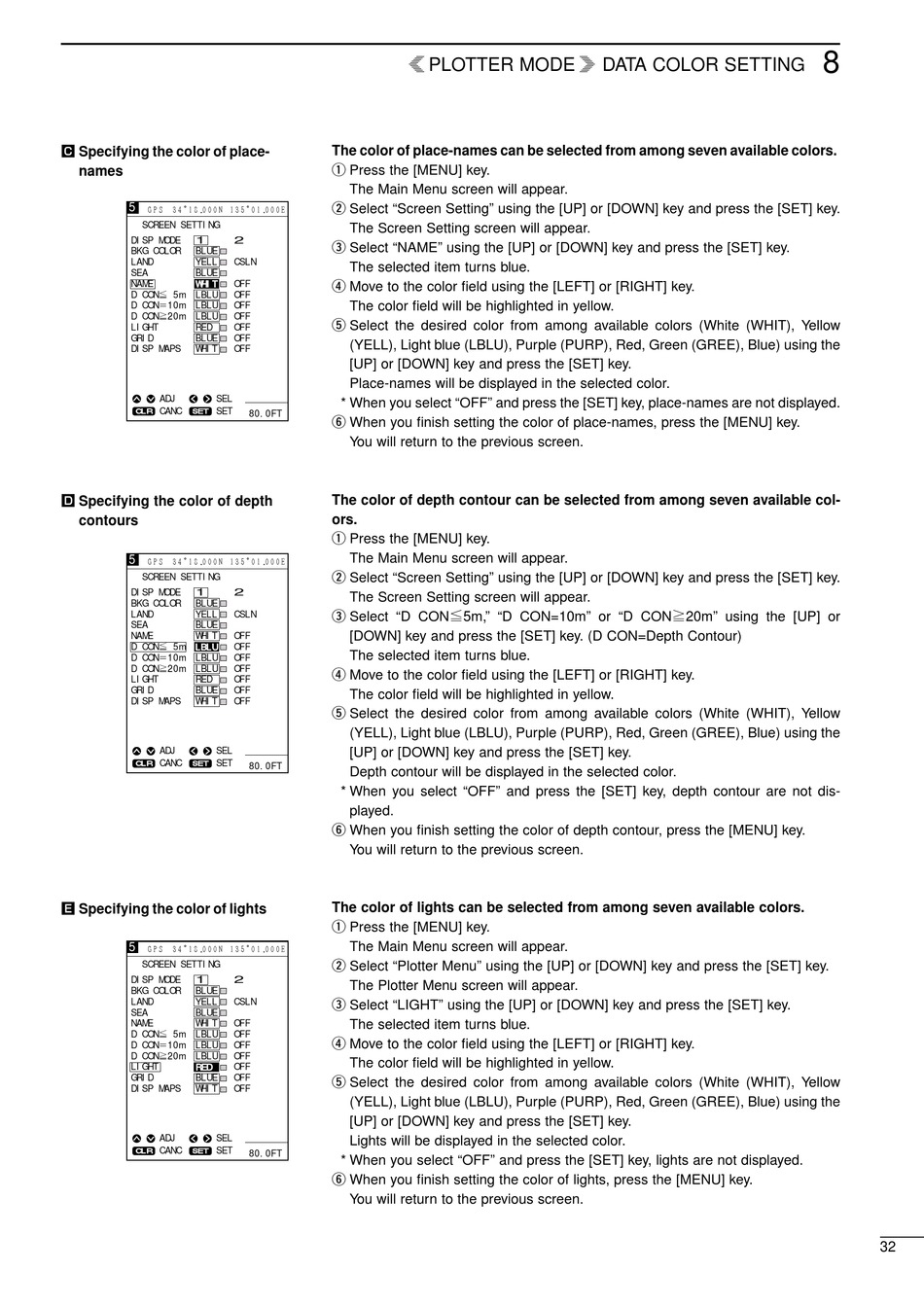

Ç Specifying The Color Of Place-Names; Î Specifying The Color Of Depth Contours; Specifying The Color Of Lights - Icom FP-561 Instruction Manual

Ç Specifying the color of place-
names
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
SCREEN SETTING
DISP MODE 1 2
BKG COLOR BLUE
LAND YELL CSLN
SEA BLUE
NAME WHIT OFF
D CON≦ 5m LBLU OFF
D CON＝10m LBLU OFF
D CON≧20m LBLU OFF
LIGHT RED OFF
GRID BLUE OFF
DISP MAPS WHIT OFF
ADJ SEL
CANC SET
CLR SET
Î Specifying the color of depth
contours
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
SCREEN SETTING
DISP MODE 1 2
BKG COLOR BLUE
LAND YELL CSLN
SEA BLUE
NAME WHIT OFF
D CON≦ 5m LBLU OFF
D CON＝10m LBLU OFF
D CON≧20m LBLU OFF
LIGHT RED OFF
GRID BLUE OFF
DISP MAPS WHIT OFF
ADJ SEL
CANC SET
CLR SET
´ Specifying the color of lights
5
GPS 34ﾟ 18. 000N 135ﾟ 01. 000E
SCREEN SETTING
DISP MODE 1 2
BKG COLOR BLUE
LAND YELL CSLN
SEA BLUE
NAME WHIT OFF
D CON≦ 5m LBLU OFF
D CON＝10m LBLU OFF
D CON≧20m LBLU OFF
LIGHT RED OFF
GRID BLUE OFF
DISP MAPS WHIT OFF
ADJ SEL
CANC SET
CLR SET
r PLOTTER MODE q DATA COLOR SETTING
The color of place-names can be selected from among seven available colors.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Screen Setting" using the [UP] or [DOWN] key and press the [SET] key.
The Screen Setting screen will appear.
e Select "NAME" using the [UP] or [DOWN] key and press the [SET] key.
The selected item turns blue.
r Move to the color field using the [LEFT] or [RIGHT] key.
The color field will be highlighted in yellow.
t Select the desired color from among available colors (White (WHIT), Yellow
(YELL), Light blue (LBLU), Purple (PURP), Red, Green (GREE), Blue) using the
[UP] or [DOWN] key and press the [SET] key.
Place-names will be displayed in the selected color.
* When you select "OFF" and press the [SET] key, place-names are not displayed.
80.0FT
y When you finish setting the color of place-names, press the [MENU] key.
You will return to the previous screen.
The color of depth contour can be selected from among seven available col-
ors.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Screen Setting" using the [UP] or [DOWN] key and press the [SET] key.
The Screen Setting screen will appear.
e Select "D CON≦5m," "D CON=10m" or "D CON≧20m" using the [UP] or
[DOWN] key and press the [SET] key. (D CON=Depth Contour)
The selected item turns blue.
r Move to the color field using the [LEFT] or [RIGHT] key.
The color field will be highlighted in yellow.
t Select the desired color from among available colors (White (WHIT), Yellow
(YELL), Light blue (LBLU), Purple (PURP), Red, Green (GREE), Blue) using the
[UP] or [DOWN] key and press the [SET] key.
80.0FT
Depth contour will be displayed in the selected color.
* When you select "OFF" and press the [SET] key, depth contour are not dis-
played.
y When you finish setting the color of depth contour, press the [MENU] key.
You will return to the previous screen.
The color of lights can be selected from among seven available colors.
q Press the [MENU] key.
The Main Menu screen will appear.
w Select "Plotter Menu" using the [UP] or [DOWN] key and press the [SET] key.
The Plotter Menu screen will appear.
e Select "LIGHT" using the [UP] or [DOWN] key and press the [SET] key.
The selected item turns blue.
r Move to the color field using the [LEFT] or [RIGHT] key.
The color field will be highlighted in yellow.
t Select the desired color from among available colors (White (WHIT), Yellow
(YELL), Light blue (LBLU), Purple (PURP), Red, Green (GREE), Blue) using the
[UP] or [DOWN] key and press the [SET] key.
Lights will be displayed in the selected color.
80.0FT
* When you select "OFF" and press the [SET] key, lights are not displayed.
y When you finish setting the color of lights, press the [MENU] key.
You will return to the previous screen.
