OPTIONAL SPEAKER-MICROPHONE (HM-213)

Descriptions

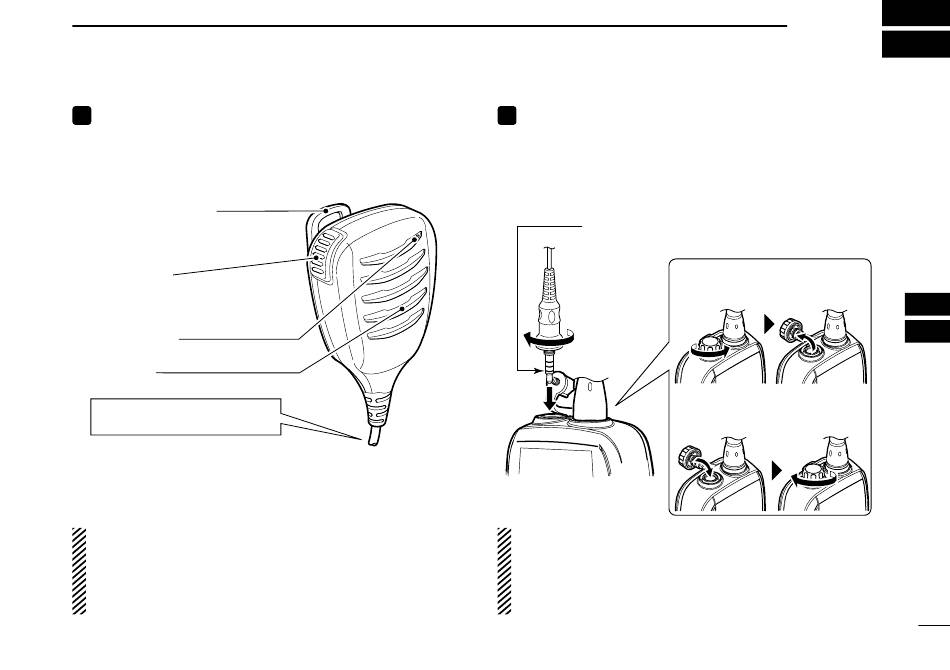

The HM-213
speaker microphone
microphone. It fits in the palm of your hand and allows you to
talk and listen more easily.
Alligator type clip
To attach the speaker-mic.
to your shirt or collar.
PTT switch
Push to transmit,
release to receive.
Microphone
Speaker
Turn the transceiver power OFF
when connecting the HM-213.
NEVER immerse the connector in water. If the connector
gets wet, be sure to dry it BEFORE connecting it to the
transceiver.
NOTE: The microphone is located at the top of the
speaker-microphone, as shown above. To maximize the
readability of your transmitted signal (voice), hold the
microphone approximately 5 to 10 cm (2 to 4 inches) from
your mouth, and speak at your normal voice level.
is a lightweight speaker
FELLECS-TECH | inbox@fellecs-tech.com | www.fellecs-tech.com

Attaching

Turn OFF the power. Then, insert the speaker-mic connector
into the [SP/MIC] connector and securely screw it, as shown
below. Be careful not to cross-thread the connection.
CAUTION: Attach the speaker-microphone's
connector securely to prevent accidental
loss, or water intrusion into the connector.
Detaching:
Rotate the [SP MIC] cap counter-
clockwise, and then detach it.
Attaching:
Attach the [SP/MIC] cap, and then
rotate it clockwise completely.
IMPORTANT: KEEP the transceiver's [SP/MIC] cap
attached when the speaker-microphone is not used. If the
cover is not attached, water will get into the transceiver.
Moreover, the terminals (pins) will become rusty, or the
transceiver will function abnormally if the connector gets wet.
