Hm-222Hlwp Speaker Microphone - Icom IC-F29DR3 Operating Instructions Manual

1
ACCESSORIES

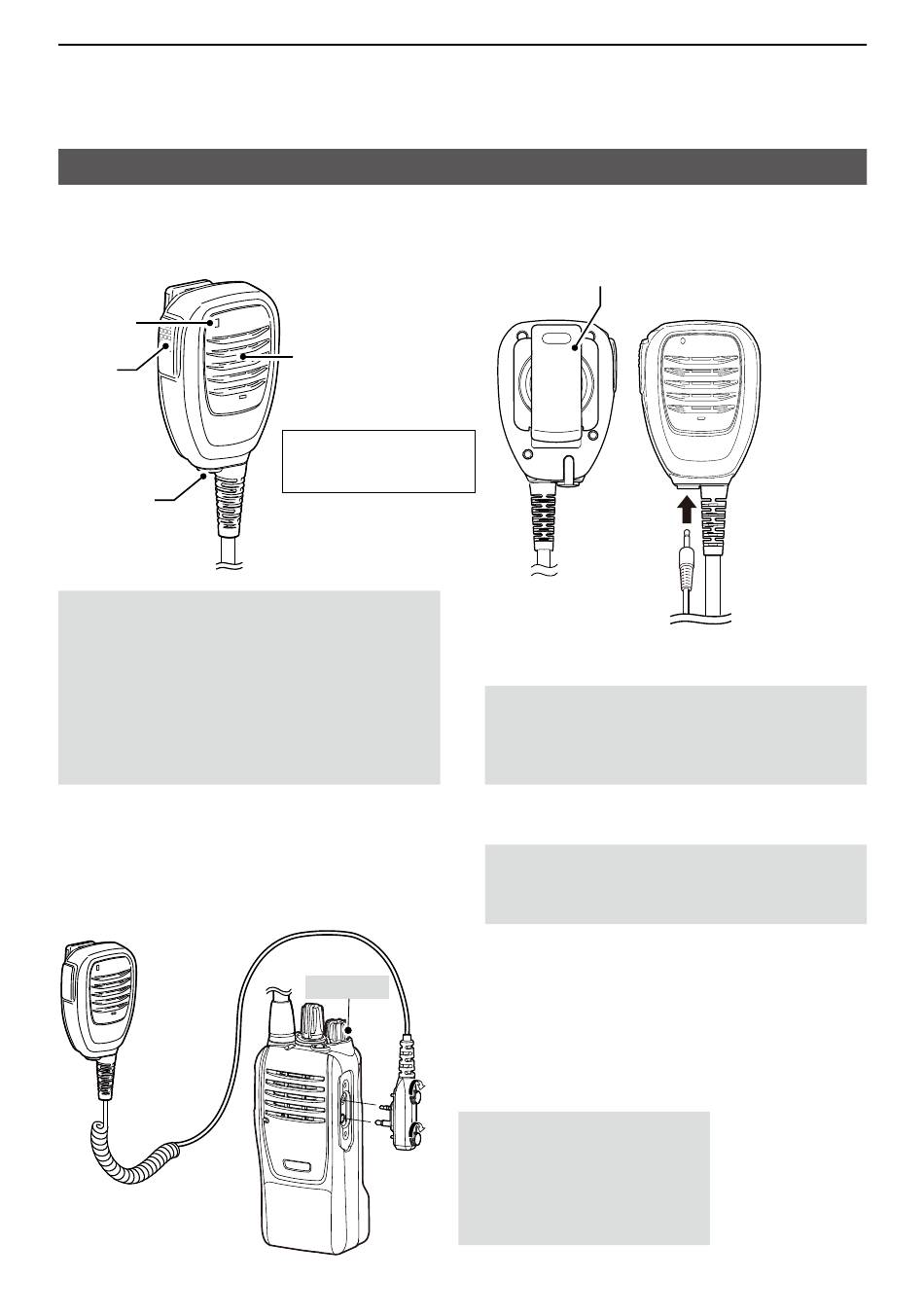

HM-222HLWP
L The high audio output of the HM-222HLWP is only usable with transceivers that support the function.
Microphone
[PTT]
Earphone jack
cover
NOTE:
• NEVER immerse the connector in water. If the
connector becomes wet, be sure to dry it BEFORE
attaching to the transceiver.
• The microphone element is located at the top
left of the speaker microphone, as shown in the
illustration above. To maximize the readability
of your transmitted audio, hold the microphone
approximately 5 to 10 cm (2 to 4 inches) from your
mouth, and then speak at your normal voice level.
D Attaching
Attach the connector of the speaker microphone to
the speaker microphone jack on the transceiver and
tighten the screw.
SPEAKER MICROPHONE
Speaker
Turn OFF the transceiver
before attaching or
detaching the microphone
Turn OFF
FELLECS-TECH | inbox@fellecs-tech.com | www.fellecs-tech.com
Belt clip
CAUTION: The HM-222HLWP meets IP68
requirement for dust-tight and waterproof protection
only when the earphone jack cover is fi rmly closed.
The microphone DOES NOT meet dust-tight and
waterproof protection if an earphone is attached.
NOTE: KEEP the jack cover attached to the
transceiver when the speaker microphone is not
in use to keep the IP67 dust-tight and waterproof
protection.
CAUTION: Firmly attach to the
speaker microphone jack, but do not
overtighten.
A loose connection will allow water
intrusion into the connector. An
overtightened connection will damage
the connector pins on the transceiver.
3
You can connect
an earphone (user
supplied) to the
earphone jack on
the microphone.
