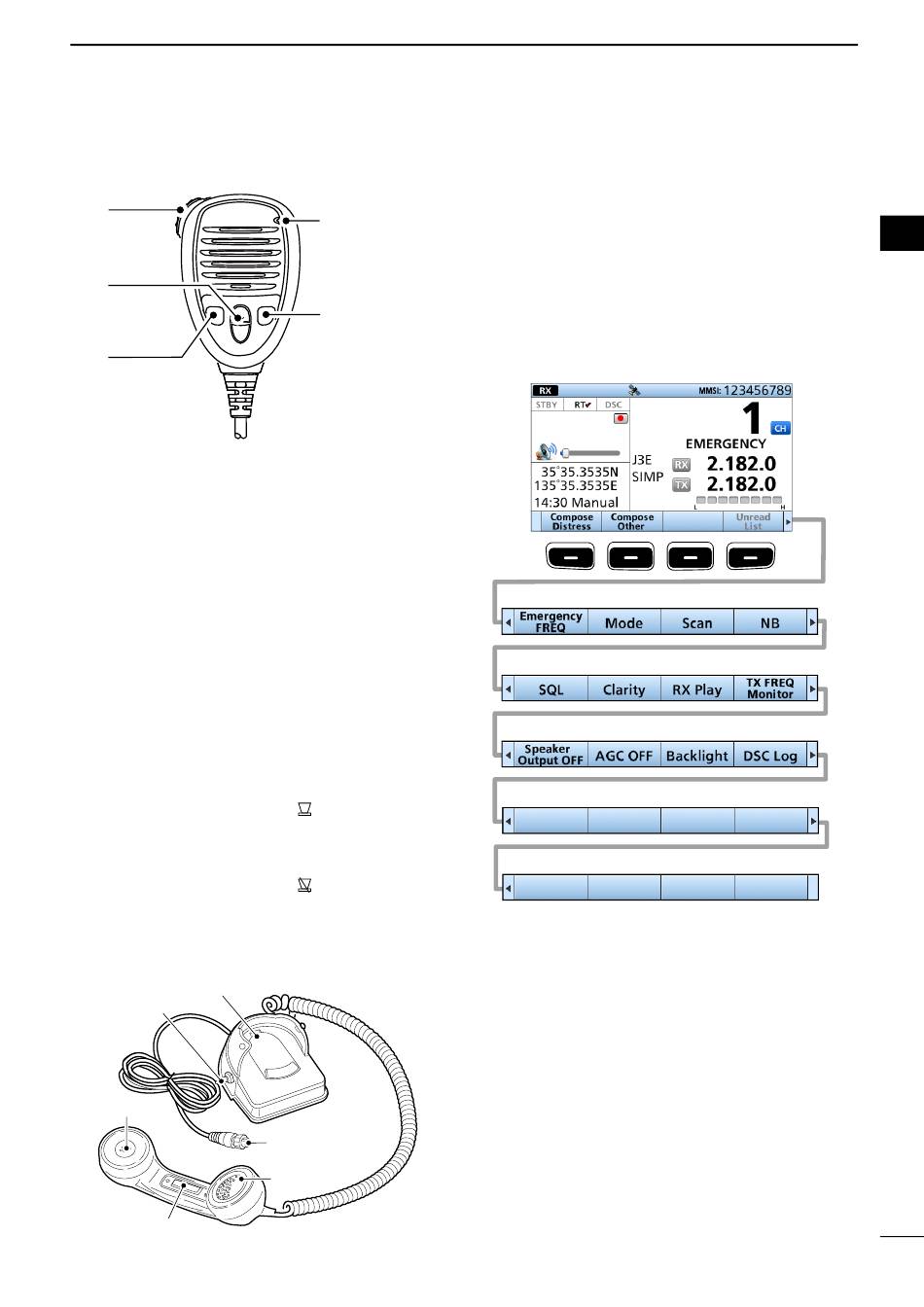

■ Microphone

1
2
3
1 PTT SWITCH
Hold down to transmit, release to receive.
2 UP/DOWN KEYS [▲]/[▼]
Push to select an operating channel or group.
3 PROGRAMMABLE KEY [P]
Push to activate a preset Software Key function.
Ask your dealer for details.
L You can reassign some Software Key functions to the
key. (p. 18)
4 DSC SCAN KEY [D-SCAN]
Push to start the DSC scan. (p. 10)

■ Optional HS-98

D About the Speaker Switch

When the switch is set to the "
You can hear the received audio from the remote
controller's speaker.
When the switch is set to the "
The remote controller speaker output is muted.
• You can hear the received audio from the handset.
To output the received audio from the remote
controller's speaker, put the handset into the cradle.
Cradle
Speaker switch
Speaker
PTT switch [PTT]
MICROPHONE
4
" position:
" position:
Handset connector
Microphone
PANEL DESCRIPTION

■ Software Keys

Various often-used functions are assigned to the
Software Keys for easy access. The function's icons
are displayed above the Software Keys, as shown
below.

D Selecting a Software Key function

Push [◄] or [►] to slide through the selectable
functions that are assigned to the Software Keys.
To select the function, push the Software Key under
the function's icon.
Softkey 1 Softkey 2
Softkey 5 Softkey 6
Softkey 9 Softkey 10
Softkey 13 Softkey 14
Softkey 17 Softkey 18
L The key function may differ, depending on the
transceiver version or presetting.
Softkey 3 Softkey 4
Softkey 7 Softkey 8
Softkey 11 Softkey 12
Softkey 15 Softkey 16
Softkey 19 Softkey 20
