PANEL DESCRIPTION

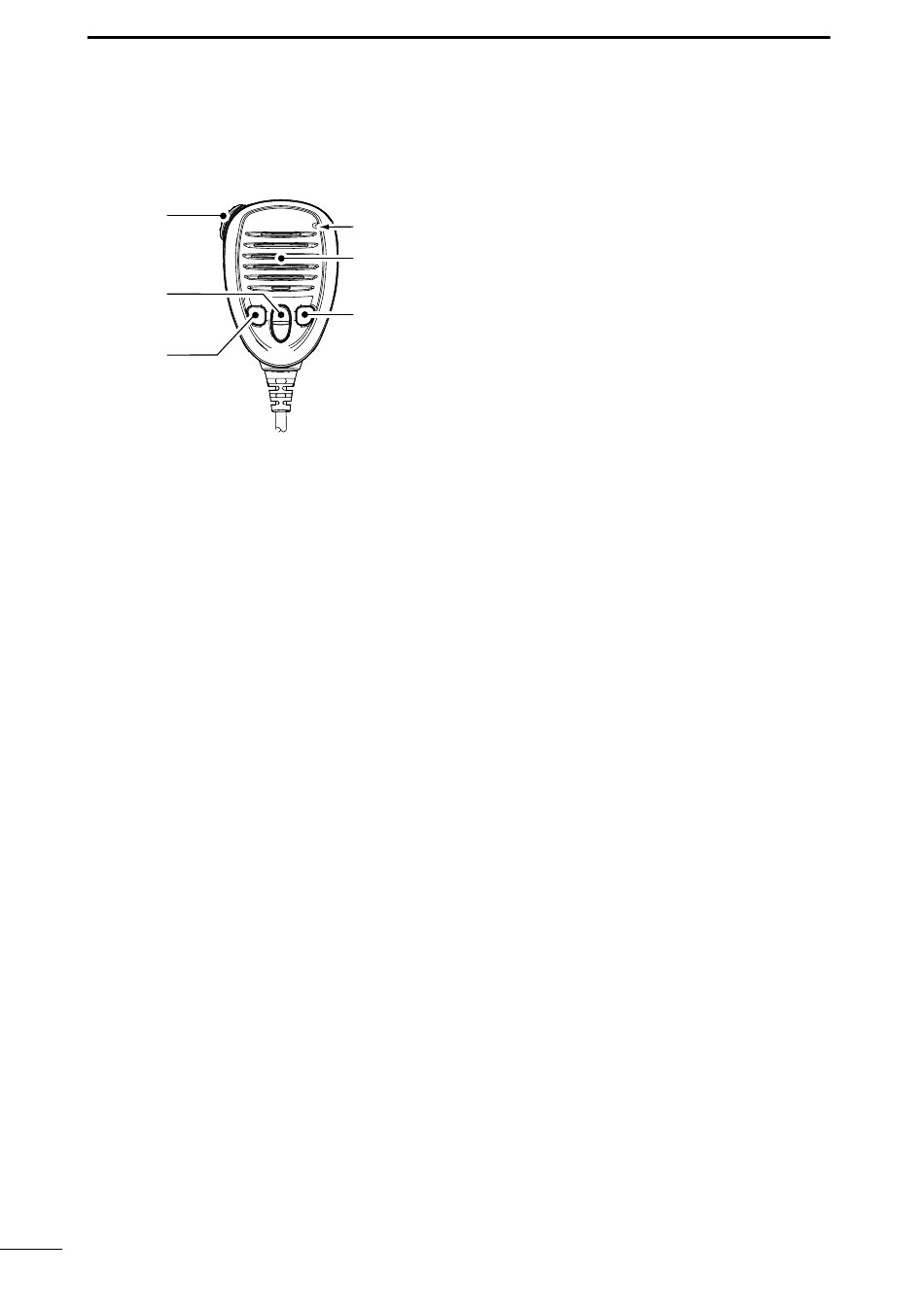

■ Speaker Microphone

1
2
3
1 PTT SWITCH [PTT] (p. 13)
Hold down to transmit, release to
receive.
2 UP/DOWN KEYS [▲]/[▼] (p. 17)
Push to select the Favorite channels,
change scanning direction or manually
resume a scan.
L When the "FAV on MIC" item is set to
"OFF," you can select all channels.
(p. 86)
3 TRANSMIT POWER KEY [H/L]
• Push to set the power level to high or
low.
L Some channels are set to only low
power.
• You can turn the Microphone Lock
function ON or OFF by turning the
transceiver ON while holding down this
key. (p. 15)
4 CHANNEL 16/CALL CHANNEL KEY
[16/C] (p. 10)
• Push to select Channel 16.
• Hold down for 1 second to select the
Call channel.
L The "CALL" icon is displayed.
3
Microphone
Speaker
4
