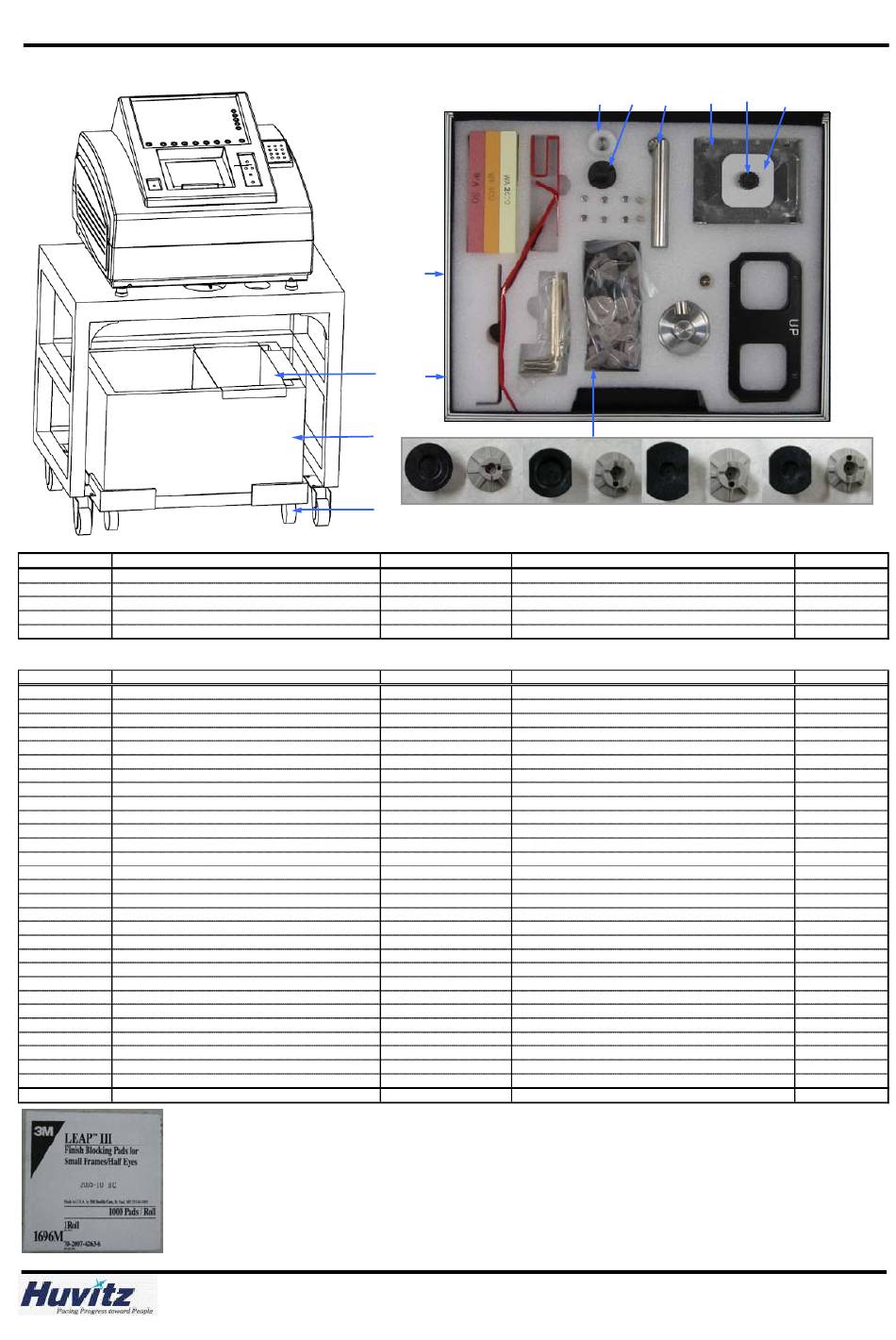

Huvitz EXCELON Service Manual page 67

Ref No. Name of Part
K WATER BOX ASSY
K ― 1 WATER PUMP
K ― 2 WATER TANK
K ― 3 WATER TANK CARRIER
K ― 4 WATER STRAINER
Ref No. Name of Part
L TOOL BOX ASSY
L ― 1 BLOCK REMOVER
L ― 2 MAIN CALIBRATION JIG
L ― 3 FRAME CALIBRATION JIG
L ― 4 FEELER TIP SHORT
L ― 5 FEELER TIP LONG
L ― 6 MOVING FIXER 1
L ― 7 MOVING FIXER 2
L ― 8 ― 1 LEAP BLOCK(BLACK)
L ― 8 ― 2 LEAP BLOCK(GREY)
L ― 8 ― 3 SMALL LEAP BLOCK(BLACK)
L ― 8 ― 4 SMALL LEAP BLOCK(GREY)
L ― 8 ― 5 LEAP BLOCK(BLACK)
L ― 8 ― 6 LEAP BLOCK(GREY)
L ― 8 ― 7 SMALL LEAP BLOCK(BLACK)
L ― 8 ― 8 SMALL LEAP BLOCK(GREY)
L ― 9 TOOL BOX
L ― 10 FUSE
L ― 11 L LENCH SET
L ― 12 LENS CLAMP ASS'Y
L ― 13 SMALL LENS CLAMP ASS'Y
L ― 14 BLOCK ADAPTER ASS'Y
L ― 15 SMALL BLOCK ADAPTER ASS'Y
L ― 16 PATTERN HOLDER
L ― 17 PATTERN FIX BOLT
L ― 18 PATTERN
L ― 19 DRESSING STICK
L ― 20 DRESSING STICK
L ― 21 DRESSING STICK
M FINISH BLOCKING PADS
[M. FINISH BLOCKING PADS]
K-2
[K. WATER BOX ASSY]
L-7
L-19, 20, 21
L-9
L-6
K-4
L-11
K-3
L-8-3
L-8-1 L-8-2
Code of Part
G0EHAR6011
3018A000013
3018A000014
1310A00G031
Code of Part
G0MASSY800-AA
1210A00G057-A
1210A00G061-A
1200MP0H011-A
1230A00G008-A
1230A00G009-A
1330MS0G002-B
1330MS0G003-B
2010A00G005-B High curve
2010A00G002-C High curve
2010A00G004-B Low curve
2010A00G003-C Low curve
2010A00G009-A High curve
2010A00G008-A High curve
2010A00G007-B Low curve
2010A00G006-B Low curve
3022A000005-A
7610S003127-A 10A,250V
9340A00LW15-AS 1.5, 2.0, 2.5, 3.0, 4.0, 5.0, 6.0M/M
G0MASSY811-AA
G0MASSY812-AA
G0MASSY814-AB
G0MASSY815-AC
2010A00H001-A PLASTIC
3000A000003-A
1200MP0H010-A
3022A00G001-A WA80
3022A00G002-A WA400
3022A00G003-A WA2000
3M LeapIII Tape 1696M (1000Pads)
L-12
L-14
L-16
L-15 L-13 J-1
L-10 L-4
L-5
L-2
L-8
L-8-4
L-8-5 L-8-6
[J. TOOL BOX ASSY]
Description
Description
EXCELON
L-17
L-18
L-3
L-8-8
L-8-7
Unit Price(U$)
360
100
15
70
175
Unit Price(U$)
225
5
40
30
10
10
10
5
1
1
1
1
1
1
1
1
40
0.5
2
15
15
10
10
10
0.5
10
3
5
10
70
Part Price List V - 65
